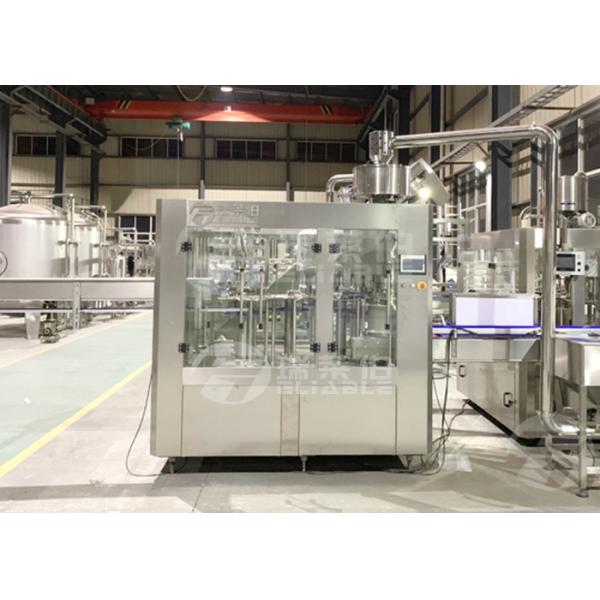

High Accuracy Drinking Water Filling Complete Automatic Production Line
High Accuracy Drinking Water Filling Complete Automatic Production Line
High Accuracy Drinking Water Filling Complete Automatic Production Line
High Accuracy Drinking Water Filling Complete Automatic Production Line
High Accuracy Drinking Water Filling Complete Automatic Production Line
High Accuracy Drinking Water Filling Complete Automatic Production Line
High Accuracy Drinking Water Filling Complete Automatic Production Line
High Accuracy Drinking Water Filling Complete Automatic Production Line
High Accuracy Drinking Water Filling Complete Automatic Production Line
High Accuracy Drinking Water Filling Complete Automatic Production Line
High Accuracy Drinking Water Filling Complete Automatic Production Line
High Accuracy Drinking Water Filling Complete Automatic Production Line
Specifications
Place of Origin :
China
Brand Name :
Reliable
Certification :
ISO CE SGS TUV
Model Number :
Turn Key Project
MOQ :
1 Set
Price :
Negotiatory
Packaging Details :
wooden box
Delivery Time :
30-45 days
Payment Terms :
T/T L/C
Supply Ability :
30sets/month
Filling material :
Water
Voltage :
By order
Packaging Material :
Plastic, Wood
Control :
PLC+ Touch Screen
Electrical Brand :
Simens,ect
Warranty :
1 Year
Material :
SS304
Filling Capacity :
4000BPH
Description

High Accuracy Drinking Water Filling Complete Automatic Production Line

Water Machinery Production Line Characteristics:

1. Air Conveyor connects with bottle-in starwheels. Bottle neck holding transferred.

2. Clamp transferring technology varied bottle types

3. With ring type pressure bearing hydraulic cylinder

4. With high filling speed and exact liquid level.

5. Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.

6.The bottle-out starwheel is of screwdown shape.No need to adjust transfeering chain's height to different bottles.

Water Machinery Production Line Technical standard:

NO. Model CGF12-12-6
1 Capacity 4000 B /H
2 Filling Accuracy ≤±5MM
3 Filling Pressure <0.4
4 PET bottle size (mm)

Bottle dimension Φ40-Φ110

bottle height Φ130-320
5 Cap-shaped Plastic screw cap
6 washing bottle of water pressure 0.18Mpa
7 Volume of washing bottle 800kg/h
8 spraying position 6
9 dripping bottle position 5
10 Consumption 0.3m³/min
11 Total power 5.03kw
12 Total weight 3000kg
13 dimensions 2600×1900×2500mm

FAQ

Q:What is the delivery time?

A:15-30days for this machine.

Q:What is the payment team?

A:T/T.L/C

Q:Can i trust you?

A:YES.We are "Alibaba" verified supplier

Q:May i visit your factory?

A:Of course,welcome any time,we can also pick you up at airport or station,

and we will display our machine for you.

High Accuracy Drinking Water Filling Complete Automatic Production Line

High Accuracy Drinking Water Filling Complete Automatic Production Line

High Accuracy Drinking Water Filling Complete Automatic Production Line
