Small Scale Pet Bottle Filling And Capping Machine For Carbonated Drink
Small Scale Pet Bottle Filling And Capping Machine For Carbonated Drink
Small Scale Pet Bottle Filling And Capping Machine For Carbonated Drink
Small Scale Pet Bottle Filling And Capping Machine For Carbonated Drink
Specifications
Brand Name :
RELIABLE
Model Number :
CGFD 18-18-6
Certification :
CE&ISO&SGS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10set/month
Delivery Time :
30 working days
Packaging Details :
The normal package is wooden box. If export to Europe Country ,the wooden box will be after fumigated. If enter container the package is too tighter, we may use PE film to wrap the machine or according to your special request.
Name :
Pet Bottle Filling And Capping Machine
Type :
Small Scale
Bottle Volume :
200ml to 2L
Cap type :
Plastic screw cap
Control :
PLC + touch Screen
Usage :
Carbonated Drink
Material :
SUS304 Staineless Steel
Electrical brand :
Siemens
Description

Small Scale Pet Bottle Filling And Capping Machine For Carbonated Drink

Pet Bottle Filling And Capping Machine Introduction:

This bottle filling and capping machine adopts advanced Programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.

Pet Bottle Filling And Capping Machine Details

1. washing filling
capping three in one

2. full automatic

3. stainless steel

4. separated control cabinet (touch screen,PLC) ,easy operate and
maintaince

5. CE,SGS,ISO9001

6.high capacity,low power consumption



Pet Bottle Filling And Capping Machine Technical Parameters:

Model

CGFD8-8-3

CGFD12-12-6

CGFD 24-24-8

washing, filling and capping heads No.

8-8-3

12-12-6

24-24-8

Capacity

1500~2000BPH

3000~3500BPH

7000~7500BPH

Bottle Volume Range

volume=330-2000ml

φ=50-110 H=150~340mm volume=330-2500ml

Motor power(kw)

Main motor

Main motor 3.5kw

Main motor 4.8kw

Overall dimensions (mm)

1.9kw

2450*1800*2400

2900*2100 *2400

Weight (kg)

1900*1420*2000

2500

4500

Model

CGFD 32-32-8

CGFD 40-40-10

CGFD 60-60-15

washing, filling and capping heads No.

32-32-8

40-40-10

60-60-15

Capacity

8000-10000BPH

10000-12000BPH

15000-18000BPH

Bottle Volume Range

volume=330-2000ml

φ=50-110 H=150 ~340mm volume=330-2500ml

Motor power(kw)

Main motor 7.6kw

Main motor 8.3kw

Main motor 15Kw

Overall dimensions (mm)

4100*2000 *2400

4550*2650 *2400

5500*3510 *2400

Weight (kg)

6500

8500

12000

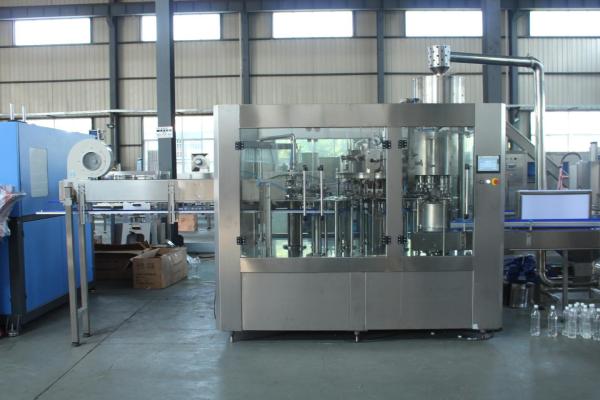

Pet Bottle Filling And Capping Machine Details Show

Small Scale Pet Bottle Filling And Capping Machine For Carbonated Drink

Small Scale Pet Bottle Filling And Capping Machine For Carbonated Drink
Out Look
> 304 stainless steel frame
> Tempering Glass window, Clear & no odor
> Excellent start wheel design, easy change over parts
> Machine Base with anti-rust process, ensure the forever antirust
> All seal where liquid may Leakage & base neck come with rubber, water proof
> Manual lubrication system

Washing Station

➢ All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean

➢ 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

➢ 304 stainless steel washing pumps

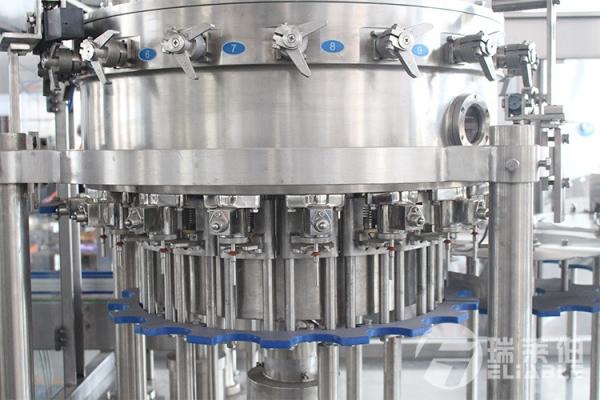

Filling Station

➢ High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,

➢ All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean

➢ No bottle no filling

Capper Station

➢ Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

➢ All 304stainless steel construction

➢ No bottle no capping

Bottle Inlet (Air Conveyor)
➢All Stainless Steel 304 include the all the connection parts and bottle exchange part .
➢Big motor Air fan
➢Steady running for the machine . Strong Machine . Can be customizer the length and design

Our Service:

When we get your offer, we will design a plan for you, to make sure the quality of product and delivery:
1. The process of machine will be represented to you twice a week with video and picture, you get all of your machine information. if you have any requirements or some new ideas, we do as you wish ,at the same time, you enjoy the professional and considerate service from our engineer and salesman ,which makes your machine perfect.
2. Delivery will be timely, we offer the weight of machine, the volume of machine, the size of packing ,the material of package. All of the information about delivery will be collected and provided.
