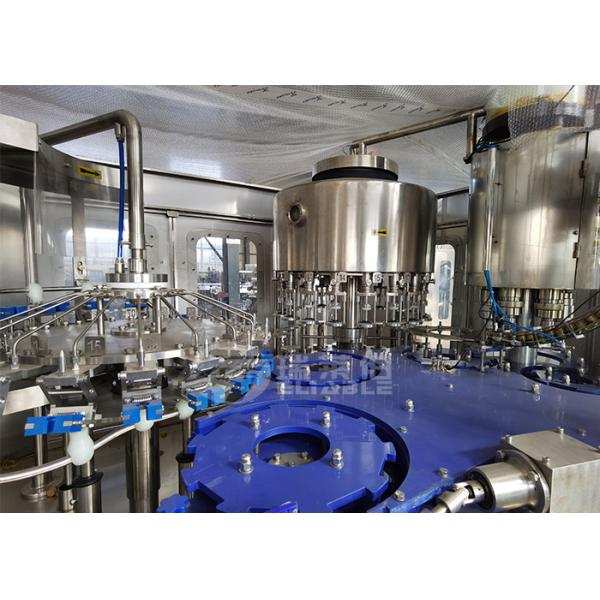

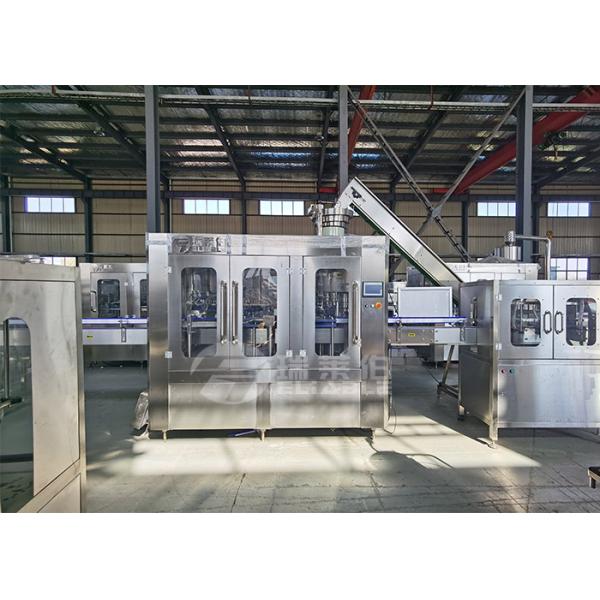

Hot Sale Rotary Type 6000bph SUS304 Glass Bottle Washing Filling And Capping Machine

Performance characteristics:
This machine with capacity 5000-6000bph, is mainly used for washing, filling and capping glass bottles, adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; no cap no operation, and other security protection. It use high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.

Advantages

1. The body and all pipes are made of stainless steel 304.

2. The parts of door and frame are all made of stainless steel 304 combined with nano glass to reduce the chance of glass damage during transportation.

3. The red emergency stop button is more secure.

4. The electric box is inside the filling machine, saving the factory space.

5. An external air box is additionally provided, which is convenient for observing the air volume outside and more neat.

6. The flat cap loader reduces the occurrence of back cover.

7. The brand of the switch is Autonics, and all other electrical brands are Siemens and Schneider.

8.The pulsator is brought into the conveyor for washing, filling and sealing.Stainless steel washing, large custom-made filling valve, stable water flow, stable filling, capping for Italy design, stable.Long service life. High power fan, fast speed, belt cover machine, do not flip.

Machine Details:

Characteristics

1, This machine is using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The filling nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean.

2, This machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.

3, Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Stable, accurate, to be vacuum one at a time.

4, Stainless steel plunger and mechanical stirring gland-type magnetic reasonable cap to ensure that the gland is healthy and reliable. Hopper and the cap taking- cover, capping transmitted by magnetic. The capping is reliable and automatic unloading, reducing the rate of broken bottles.
