Linear Type Fast Speed Full Automatic OPP Hot Melt Glue Labeling Machine

1. Introduction

Three phases 380V 50 Hz 8000W
Length of labeling machine: 3000mm (Length of flat conveyor :3000mm; adjusted according to the actual size of the customer's production line)
Size of main machine: 3000mm(L)*2500mm(W)*2200mm(H)
Height of conveyor belt: 1100±30mm (adjusted according to the actual size of the customer's production line)
Conveying line speed:30m/min(adjusted according to the actual size of the customer)
Speed adjustment method: Stepless speed regulation
Maximum speed:150m/min
Maximum labeling speed: RM-1209R round bottle: 200pcs/min
(adjusted according to the customer)
The accuracy : ±1mm
The accuracy of labeling : ±1mm
Maximum width of label (height):140mm(Standard width, according to the actual product size to increase the width)
Maximum length of label :500mm
The maximum diameter of the label:600mm
Core diameter: 152mm
Labeling colloid: hot melt adhesive, only in the label two sizing
Glue temperature: 120~160℃
Label type: OPP film labels, paper and plastic composite film labels, paper labels
Labeling station: round bottle hot melt adhesive labeling machine 8 stations per week
Labeling Product Type: Round Bottle
Labeling Product Specifications: 300ml/500ml/1500ml round bottle
Total weight: about 1100 Kg

2. Machine advantages
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Equipment rack: after square steel welding, the plane milling flat after milling planer(make antirust processing)
Equipment chassis platform: A3 steel plate (make antirust processing);Equipment chassis platform surface material;SUS 304 stainless steel (gb)
Conveyor belt lateral plate: SUS 304 stainless steel (gb); Cabinet seal plate: SUS 304 stainless steel (gb)
Equipment door frame: SUS 304 stainless steel (gb); Transmission gear: ductile iron, tooth of high frequency quenching process
Part of the fixed clamp: Germany MECANO import standard parts;Main shaft: 304 stainless steel tube;
Location compressive bar head: gb 304 stainless steel;Location wheel: the ALCOA 6061 - T651 high hardness of aluminum alloy

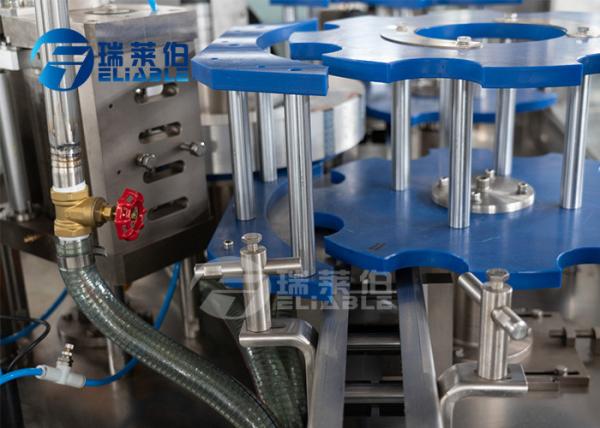

Electric cabinet: SUS 304 stainless steel (gb);feed and discharge star wheel: MC nylon engineering;Bottle feeding screw: POM project nylon
