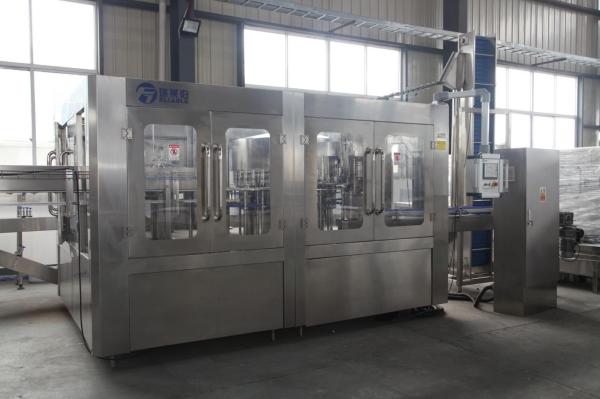

CE Certification Pure Water Bottle Filling Machine Fully Automatic Long Life Time
CE Certification Pure Water Bottle Filling Machine Fully Automatic Long Life Time
CE Certification Pure Water Bottle Filling Machine Fully Automatic Long Life Time
CE Certification Pure Water Bottle Filling Machine Fully Automatic Long Life Time
CE Certification Pure Water Bottle Filling Machine Fully Automatic Long Life Time
CE Certification Pure Water Bottle Filling Machine Fully Automatic Long Life Time
CE Certification Pure Water Bottle Filling Machine Fully Automatic Long Life Time
CE Certification Pure Water Bottle Filling Machine Fully Automatic Long Life Time
CE Certification Pure Water Bottle Filling Machine Fully Automatic Long Life Time
CE Certification Pure Water Bottle Filling Machine Fully Automatic Long Life Time
Specifications
Brand Name :
Reliable
Model Number :
CGF32-32-8
Certification :
CE&ISO&TUV&SGS
Place of Origin :
China,JiangSu,Zhangjiagang
MOQ :
1 set
Price :
28000-32000
Payment Terms :
TT & L/C
Supply Ability :
20 Sets Per Months
Delivery Time :
30 Working Days After Receiving Your Deposit Payment
Packaging Details :
Wooden Case Package
Machine Material :
SUS316
Control :
Touch Screen
Bottle Type :
PET Bottle
Processing :
3 in 1 washer filler capper
Cap Style :
PET Plastic Screw Cap
Capacity :
12000BPH@500ml
Warranty :
2 Years
Electrical Brand :
SIEMENS
Description

CE Certification Pure Water Bottle Filling Machine Fully Automatic Long Life Time


Quick Detail:

Name: CE Certification Pure Water Bottle Water Filling Machine Fully Automatic
Capacity: 12000-15000bph
Material: Food stage stainless steel
Control: PLC & touch screen control
Suitable Bottle: PET Plastic bottle
Bottle Volume: 300ml-2000ml
Dimension: Customized
Function: washing filling capping 3 in 1
Technology: Advanced
After-sales service provided: Engineers available to service machinery overseas .

Description:

Washing heads.

The bottle feeding method is that the air conveyor directly connects the bottle dial. All 304/316 stainless steel rinse heads, water jet spray design, save water consumption, cleaner .304 / 316 stainless steel clamp with plastic pad to ensure bottle minimization during washing.

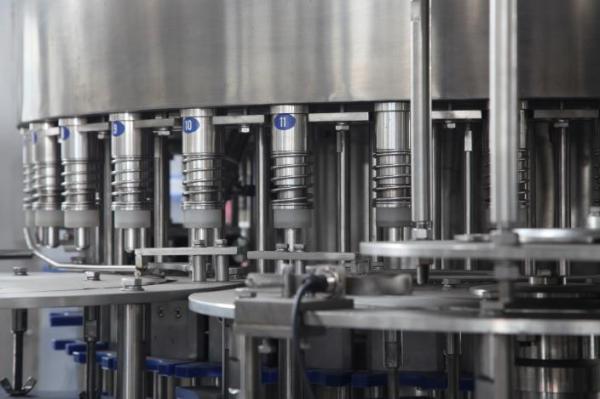

Filling heads.

304/316 stainless steel high precision filling nozzle. The filling volume is adjustable, fine grade, and the liquid level is the same after filling. All 304/316 stainless steel contacts and tanks, fine polished, no dead ends, easy to clean 304/316 stainless steel filling pumps.

Capping heads.

The placement and capping system, the electromagnetic capping head, has a load discharge function to ensure minimal bottle collapse during capping. Full 304/316 stainless steel construction. No bottles are not covered. Stop automatically when the bottle is missing.

CE Certification Pure Water Bottle Filling Machine Fully Automatic Long Life Time

Air conveyor.

The air conveyor is fixed to the floor with a fan mounted on the top. Air filters are located at each inlet of the fan to prevent dust from blowing into the bottle. The bottle is held on the neck of the conveyor and delivered to the filling machine by blowing power. All made of stainless steel SUS 304/316.

Flat conveyor.

Energy saving. high efficiency. Adapt to the customer's factory layout. Special lubrication system to keep products clean, healthy and safe. Extended service life. The electric eye design makes the whole line run safely and quickly.
Specifications:

Model

CGF8-8-3

CGF16-12-6

CGF18-18-6

CGF24-24-8

CGF32-32-10

Rinsing Head No.

8

16

18

24

32

Filling Head No.

8

12

18

24

32

Capping Head No.

3

6

6

8

10

RatedCapacity

(BPH)

2000

4000

7000-8000

10000-12000

12000-15000

Overall Size (MM)

1900*1420*2000mm

2200*1600*2300mm

2450*1900*2300mm

2750*1180*2400mm

4000*2300*2300mm

Weight (T)

1.5

2.2

3.0

4.0

8.0

Power(KW)

3.0kw

3.5kw

4.0kw

4.8kw

7.6kw

Rated Voltage(V)

380V

380V

380V

380V

380V

Spare Parts Show

No Name Qty
1

Sliding fork
2

Spring
3 Plug&pipe for water separator
4 Seals for metal pipe
5 Seals for filling valve
6 Gaskets for bottle neck
7 O rings for liquid tank
8 Metal ball
9 O rings for capping head
10 Conveyor chain
11 Conveyor wheel
12 Bearing
13 Bearing sea
14

Black wheel
15 Mid relay
16 Thermorelay
17 Speed adjust

we provide you with turn-key project solution.

From project design to produce the end product you want.

the machine including: 1) water treatment system. 2) bottle blowing machine, 3) air compressor system; 4) bottle filling machine 5) labeling machine 6) date code printer 7) packing machine.

Pre-Sales Service

1) Inquiry and consulting support.

2) give us your request (hour capacity of the production line you want)

3) we workout the design of the production line

3) View our Factory and make the final contract

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas. instal the production line at site.
