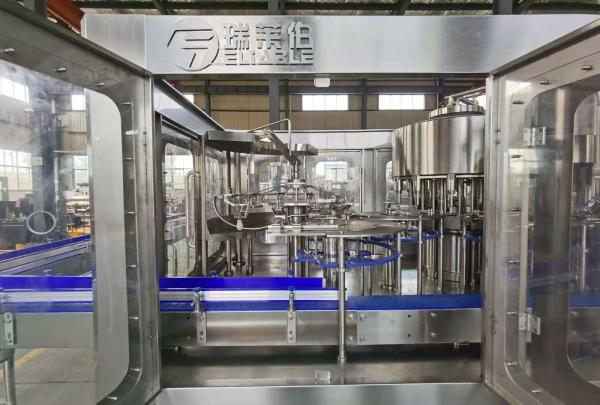

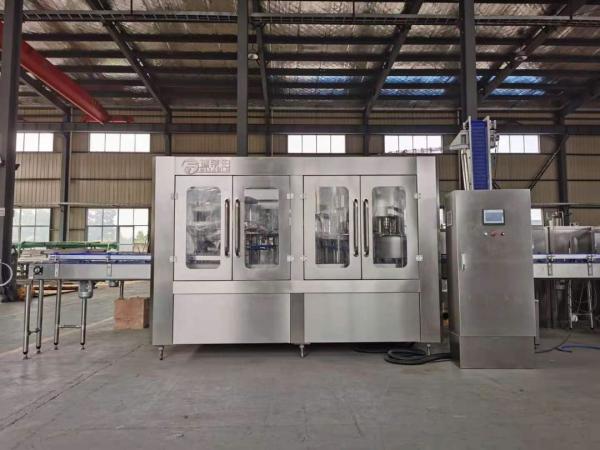

0.2-0.25 Mpa Washing Filling Capping Juice Filling Machine

This 3 in 1 juice filling machine is a 3 in 1 filling machine which integrates washing, filling and capping. Mainly for the glass bottle juice beverage filling production, including igh position tank and back flow system, make filling quickly, stable and accurate, ensure the material filling temperature and reduce material loss. This 3 in 1 juice filling machine with automatic lifting machine, vibration sorting device. The 3 in 1 juice filling machine mainly contains three parts: bottle washing parts, filling parts, capping parts.

Main operating process: The cap is placed on the cover hoist, the cap is transported by the hoist to the vibrating cover, the bottle on the filling machine entrance, driven by the conveyor in turn into the washing, filling, capping three parts. The metal parts in the bottle are all electrolyzed and the filling valve is hot-filled. The cap is treated with a cover or a cover according to the shape of the bottle and the shape of the cap.

--- Feature---

1. Production Material: 304 Stainless steel construction , and the liquid contact parts are 316L stainless steel.it is based on you.
2. Control: Schneider PLC and touch screen control for you
3. Motor: Servo motor Driven, one servo motor drive one piston, high speed and high accuracy.
4. Bottle Filling: No bottle ,no fill, automatic alarm for the warning.
5. The filling blocked nozzles are anti drops, silk, and auto cut viscous liquid
6. Easy to maintain, no special tools are required.
7. Diving nozzles for bottom up filling of foaming products if need
8. Bottle mouth can be located if need

---Technical Paraments---

--- Inside Details Introduction---

Bottle Filling Machine Flat Conveyor.

This 5L / 10L bottle water filling machine combines disinfection washing, filling and capping three functions into one assembly line. Mainly used for liquid filling, it is moderate, simple structure, easy maintenance.

Bottle Filling Machine Bottle Washing.

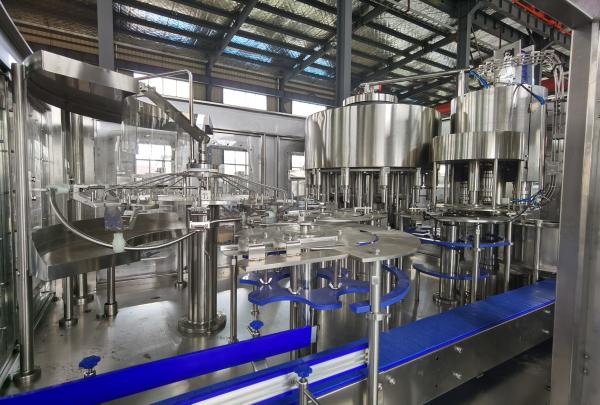

Bottle Filling Machine Bottle Filling.

Bottle Filling Machine Bottle Capping.

Convenient adjustment: replacement filling specifications only in touch screen can be changed in parameters, and all filling first change in position, fine-tuning dose it in touch screen adjustment.

Bottle Filling Machine Light Check.

When close to target filling capacity can be applied to realize speed slow filling, prevent the liquid spill bottle mouth cause pollution.

Bottle Filling Machine Control.
