Specifications
Brand Name :
Grundfos
Model Number :
UPS2 32-125 180 AUTO
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability :
100
Delivery Time :
5-8 weeks
Packaging Details :
Wooden case packing
Ambient temperature range :
0 - 40 °C
Maximum operating pressure :
10 bar
Transported liquid :
water
Liquid temperature range :
2 - 95 °C
Liquid temperature during operation :
60 °C
Density :
983.2 kg/m³
Net weight :
2.7kg
Gross weight :
2.9kg
transport volume :
0.008 m3
Rated flow rate :
4 m³/h
rated head :
8.75 m
Maximum head :
125dm
Description

UPS2 32-125 180 AUTO
Number: 93094791
Suitable for
1.commercial heating
2.domestic hot water circulation
circulating pump

UPS2 32-125 180 AUTO

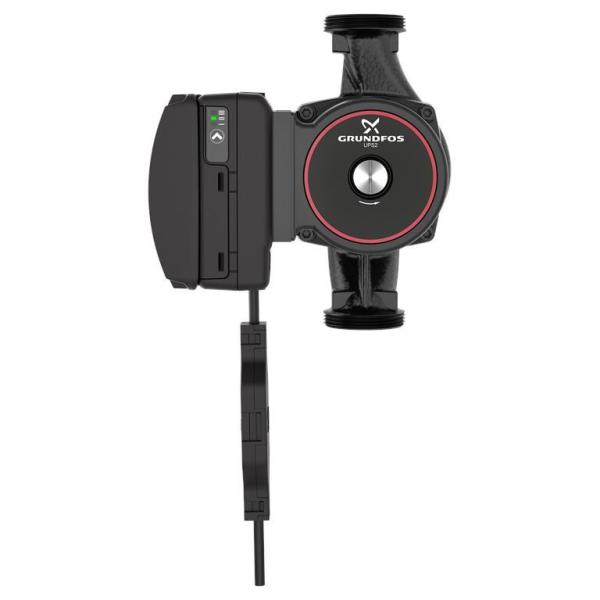

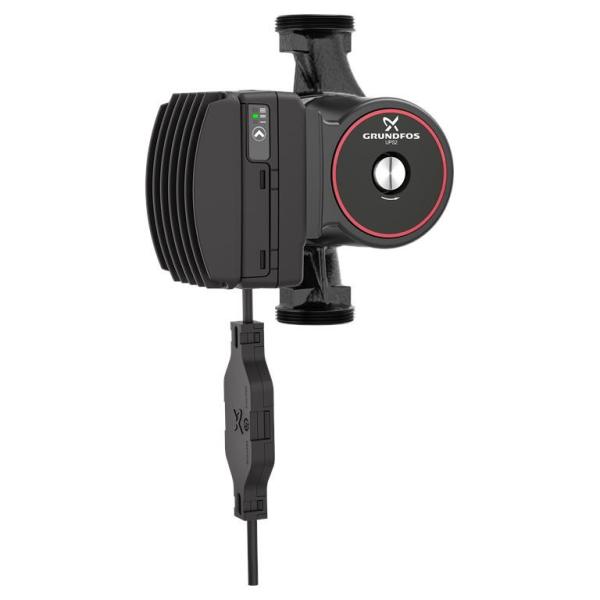

Grundfos UPS2 circulator pumps feature advanced control modes enabling adjustment of pump performance to the actual system requirements in heating systems. The motor is based on permanent-magnet and compact-rotor technology securing silent operation and low energy consumption. With AUTOADAPT, the UPS2 provides a plug and play control option with the touch of a button where the pump continuously adapts to the system demands providing comfort to the homeowner while using the least amount of energy.		 Grundfos UPS2 32-125 180 AUTO Domestic Hot Water Circulation Pump


Product Name: UPS2 32-125 180 AUTO
Product No.: 93094791
EAN No.: 5715467695212
technology
Rated flow: 4 m³/h
Rated head: 8.75 meters
Maximum head: 125 decimeters
TF level: 95
Approvals: CE
Material
Pump casing: Cast iron
Pump housing: EN 1561 EN-GJL-150
Pump casing: ASTM A48-25B
Impeller: Composite
PES 30% GF + PESU-GF20%

Installation
Ambient temperature range:0.. 40 °C
Maximum operating pressure:10 bar
Pipe connection standard:EN 1092-2
Connection type:G
Connection size:2 inch
Pressure rating for pipe connection:PN 10
Port-to-port length:180 mm
Liquid

Liquid transported:Water
Liquid temperature range:2.. 95 °C
Liquid temperature during operation:60 °C
Density:983.2 kg/m³
Electrical data
Power input P1:180 watts
Power frequency:50 / 60 Hz
Rated voltage:1 x 230 V
Maximum current consumption:1.37 amps
Minimum current:0.33 amps
Enclosure rating (IEC 34-5):X2D
Insulation class (IEC 85):F
Built-in motor protection:NONE
Thermal protection:ELEC
Other
Energy (EEI):0.23
Terminal box position:9H
Net weight:2.7 kilograms
Gross weight:2.9 kilograms
Shipping volume:0.008 m³
