Specifications
Brand Name :
Grundfos
Model Number :
Magna1 65-150 F N
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability :
100
Delivery Time :
5-8 weeks
Packaging Details :
Wooden case packing
Ambient temperature range :
0.. 40 °C
Maximum operating pressure :
10 bar
Transmitted liquid :
Water
Liquid temperature range :
-10.. 110 °C
Operating liquid temperature :
60 °C
Density :
983.2 kg/m³
Net weight :
25.5kg
Gross weight :
27.7kg
transport volume :
0.057 m3
Description

Grundfos MAGNA1 65-150 F N

A high-end household hot water solution with a large number of electronic control operation features that exceed the requirements of EuP instructions so far.

Grundfos MAGNA1 65-150 F N

The Grundfos MAGNA1 circulator pump is the simple option for a job well done. With its high energy efficiency the product lives up to the EuP 2015 regulations ensuring substantial savings on electricity, and with its intuitive, user-friendly interface and maintenance-free design, MAGNA1 is the ideal circulator pump for basic performance needs in applications where basic system control and monitoring are desired. With this range of circulator pumps, everything from setup to basic control and monitoring are made easy. The pump is maintenance-free due to the canned-rotor type design. MAGNA1 offers the possibility of monitoring the pump via the fault relay output. The digital start/stop input remotely controls the pump. The pump communicates wirelessly with the Grundfos GO Remote app. MAGNA1 can work as main pump in both heating and cooling applications

maximum flow:56 m³/h
Maximum head : 17m
Maximum working pressure : 10bar
liquid temperature : -10 .. 110 °C		 Grundfos Magna1 65-150 F N Shielded Pump Hot Water Variable Frequency Circulation Pump Commercial Building


liquid
Transported liquids water
Liquid temperature range -10 .. 110 °C
Liquid temperature during operation 60 °C
density 983.2 kg/m³

Electric data
Maximum input power - P1 1263 watts
P1 min. 30.7 watts
Power frequency 50 / 60 Hz
Rated voltage 1 x 230 V
Minimum current consumption 0.31 A
Maximum current consumption 5.53 An
Maximum speed 4364 revolutions per minute
Encapsulation level (IEC 34-5) X4D
Insulation class (IEC 85) F

technology
Maximum head 150 decimeters
TF level one hundred and ten
Approvals CE,VDE,EAC,MOROCCO,UKCA,TSE,RCM,UkrSEPRO
Approvals for drinking water WRAS, ACS, UBA
Chamber model C

material
case of pump Stainless steel
Pump housing EN 1.4308
case of pump ASTM A351-CF8
impeller Composite

install
Environmental temperature range 0 .. 40 °C
Maximum operating pressure 10 bar
Interface model DIN
Size of connection DN 65
Pressure rating for pipe connection PN 6/10

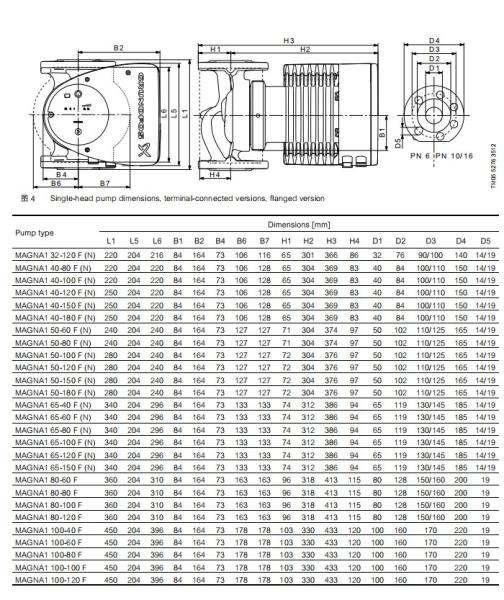

Port-to-port length 340mm

Grundfos Magna1 65-150 F N Shielded Pump Hot Water Variable Frequency Circulation Pump Commercial Building
Product Description

Grundfos MAGNA1 is a comprehensive integrated controller series of circulating pumps that can be adjusted for pump performance according to actual system requirements. In many systems, this will significantly reduce power consumption, decrease noise emitted by thermostatic radiator valves and similar components, and improve control over the system. The desired lift can be set on the control panel.

Design purpose

The pump is designed to circulate liquids in the following systems:
Heating system
• Domestic hot water system
Air conditioning and cooling system.
This water pump can also be used in the following systems:
Ground source heat pump system
• Solar thermal system.

Pump liquid

Water pumps are suitable for pumping materials that are easy to flow, have low viscosity, are clean, non corrosive, and non explosive
The liquid must not contain solid particulate matter or fibers that can cause mechanical or chemical damage to the water pump.
In heating systems, water quality should meet recognized water quality requirements for heating systems, such as the German standard VDI 2035.
This pump is also suitable for household hot water systems.
