Single Shooting Pond Fountain Nozzles For Musical Fountain Straight Jetting
Single Shooting Pond Fountain Nozzles For Musical Fountain Straight Jetting
Single Shooting Pond Fountain Nozzles For Musical Fountain Straight Jetting
Single Shooting Pond Fountain Nozzles For Musical Fountain Straight Jetting
Single Shooting Pond Fountain Nozzles For Musical Fountain Straight Jetting
Single Shooting Pond Fountain Nozzles For Musical Fountain Straight Jetting
Single Shooting Pond Fountain Nozzles For Musical Fountain Straight Jetting
Single Shooting Pond Fountain Nozzles For Musical Fountain Straight Jetting
Specifications
Place of Origin :
China
Brand Name :
YICHENG
Certification :
CE
Model Number :
ZWT series
MOQ :
10pcs
Price :
negotiation
Packaging Details :
carton
Delivery Time :
5-10 days
Payment Terms :
Ex-worked
Supply Ability :
1, 000,000pcs/week
Description

Single Shooting Pond Fountain Nozzles For Musical Fountain Straight Jetting

Quick Detail:

Name

Material

Application

Type

Thread

Single Shooting Fountain Nozzle

brass, brass chromplated, stainless steel 304

Garden, hotel, pool, pond

Ajustable

internal

Description:

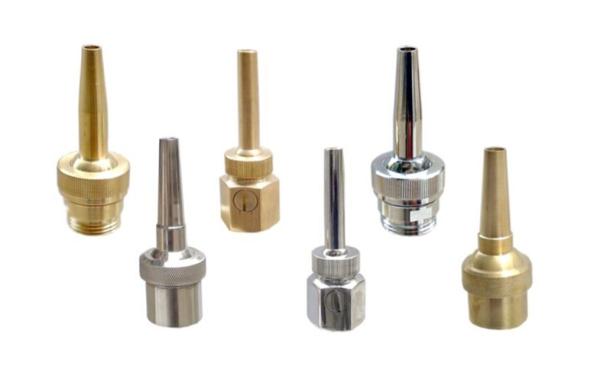

Yicheng High Quality Single Shooting Jet Nozzles, with its Special new and perfect design and made by high quality brass or brass with chrome-plated, and stainless steel 304, Which are popular and idea choice for domestic and oversea customers.

The Single Shooting Jet Nozzles are small and medium size precison nozzles, producing full, glass clear and wind stable jet.

It has a ball-shaped connector which can adjusted 15 along vertical direction.

These nozzles can be combined into different spraying results that is the best choice for musical fountains.

Adjustable Single Shooting nozzle is widely applied to many different kinds of fountain, especially in Musical Dancing Fountain and Program Control Fountain. It is called "adjustable" because it has an inside ball connector, which could adjust 15 degree vertically. According to different ponds shape, dimension and fountain design, adjustable straight spray nozzle can produce water features in different shapes and forms by changing spraying angle and height.

Specifications

Stainless steel 304 Material:

Model Performance Water Inlet Water Outlet Size Weight
pressure (Kpa) capacity (m3/h) height (m) coverage (m) diameter (inch) connection type diameter (mm) number (pcs) height (mm) max dia. (mm) (kg)
ZWT65 70-200 12-18 3-10 parabola or radial 2 1/2" external thr. Ф20 * 1 235 80 1.46
ZWT50 70-200 6-8 3-8 2" Ф13 * 1 225 73 0.71
ZWT40 70-150 4-6 3-8 1 1/2" Ф12 * 1 212 60 0.55
ZWT25 50-150 3-4 3-8 1" Ф8 * 1 115 43 0.19
ZWT20 50-150 1.5-3 1-8 3/4" internal thr. Ф7 * 1 100 37 0.15
ZWT15 50-150 0.5-1.5 1-6 1/2" internal thr. Ф5 * 1 77 31 0.16
* Can be made all in internal thread.

Brass Material:

Model Performance Water Inlet Water Outlet Size Weight
pressure (Kpa) capacity (m3/h) height (m) coverage (m) diameter (inch) connection type diameter (mm) number (pcs) height (mm) max dia. (mm) (kg)
ZWT65 70-200 12-18 3-10 parabola or radial 2 1/2" external thr. Ф20 * 1 170 75 0.94
ZWT50 70-200 6-8 3-8 2" Ф18 * 1 150 60 0.6
ZWT40 70-150 4-6 3-8 1 1/2" Ф12 * 1 117 53 0.45
ZWT25 50-150 3-4 3-8 1" Ф8 * 1 112 43 0.26
ZWT20 50-150 1.5-3 1-8 3/4" internal thr. Ф8 * 1 92 32 0.16
ZWT15 50-150 0.5-1.5 1-6 1/2" internal thr. Ф6 * 1 83 27 0.12
ZWT10 50-150 0.1-1.0 1-4 3/8" external thr. Ф5 * 1 67 20 0.07
ZWT8 50-150 0.1-0.5 1-3 1/4" Ф4 * 1 61 21 0.06
ZWT6 30-80 0.05-0.4 1-2 1/8" Ф4 * 1 60 16 0.04

Single Shooting Pond Fountain Nozzles For Musical Fountain Straight JettingSingle Shooting Pond Fountain Nozzles For Musical Fountain Straight Jetting

Single Shooting Pond Fountain Nozzles For Musical Fountain Straight Jetting

Single Shooting Pond Fountain Nozzles For Musical Fountain Straight Jetting
