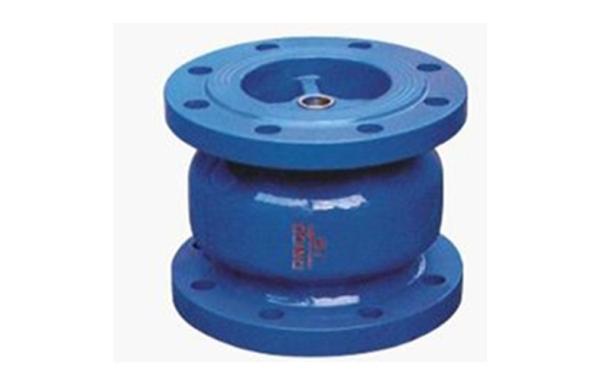

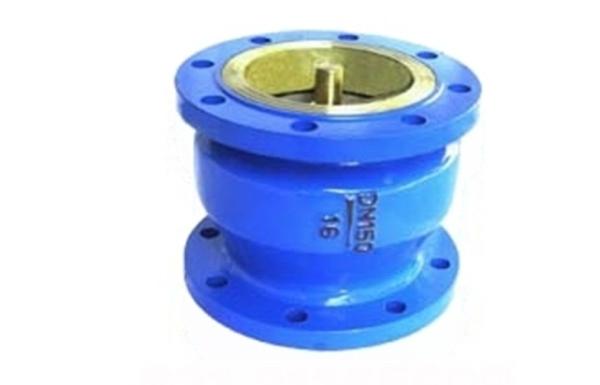

Ductile Iron Flanged Check Valve IP68 Silent Type For Drainage Pipeline

Description:

Silent lift check valve is suitable for water supply and drainage pipeline. It has small volume, light weight, small resistance, long service life etc.

Material List:

Pos Part Material
1 Guide Ductile Iron GGG40
2 Body Cast lron GG25
3 GUIDING STEM Brass Cuzn40Pb2
4 Spring Stainless steel
5 Seal NBR,EPDM,VITON
6 Disc Ductile Iron GGG40

Application:

PN Nominal pressure 1.6Mba
Sealing test pressure 1.76Mba
Strength test pressure 2.4Mba
Suitable temperature

EPDM:-10—+120°C

NBR:-10—+80°C

VITON:-23—+150°C

SILICON:-50—+200°C

Dimension Detail:

size A Cv Weight(Lbs)
2" 51/4 50 18.0
2 1/2" 51/2 140 24.0
3" 6 180 28.0
4" 71/4 330 43.0
5" 81/2 535 55.0
6" 93/4 745 71.5
8" 121/2 1310 123.0
10" 151/2 2160 183.0
12" 141/4 3000 306.0
14" 153/4 4200 381.0
16" 171/2 6500 501.0

FLow Coefficient:

The flow coefficient (Cv) is the number of gallons per minute of water flowing through a given size restriction at a pressure drop of one psig. To obtain the Cv factor for a given size check valve refer to table left.

Notes:

1. Design subject to change without notice.

2. Contact us for certified prints ( exact dimension) when requeire.

3. Flange dimensions are suitable for ANSI std. BS std. and DIN std.
