Small Air Mixed Trumpet Water Fountain Nozzles for Pool Water Features
Small Air Mixed Trumpet Water Fountain Nozzles for Pool Water Features
Small Air Mixed Trumpet Water Fountain Nozzles for Pool Water Features
Small Air Mixed Trumpet Water Fountain Nozzles for Pool Water Features
Small Air Mixed Trumpet Water Fountain Nozzles for Pool Water Features
Small Air Mixed Trumpet Water Fountain Nozzles for Pool Water Features
Small Air Mixed Trumpet Water Fountain Nozzles for Pool Water Features
Small Air Mixed Trumpet Water Fountain Nozzles for Pool Water Features
Small Air Mixed Trumpet Water Fountain Nozzles for Pool Water Features
Small Air Mixed Trumpet Water Fountain Nozzles for Pool Water Features
Small Air Mixed Trumpet Water Fountain Nozzles for Pool Water Features
Small Air Mixed Trumpet Water Fountain Nozzles for Pool Water Features
Specifications
Place of Origin :
China
Brand Name :
YICHENG
Certification :
CE
Model Number :
CYZB series
MOQ :
10pcs
Price :
negotiation
Packaging Details :
carton
Delivery Time :
5-10 days
Payment Terms :
Ex-worked
Supply Ability :
1, 000,000pcs/week
Description

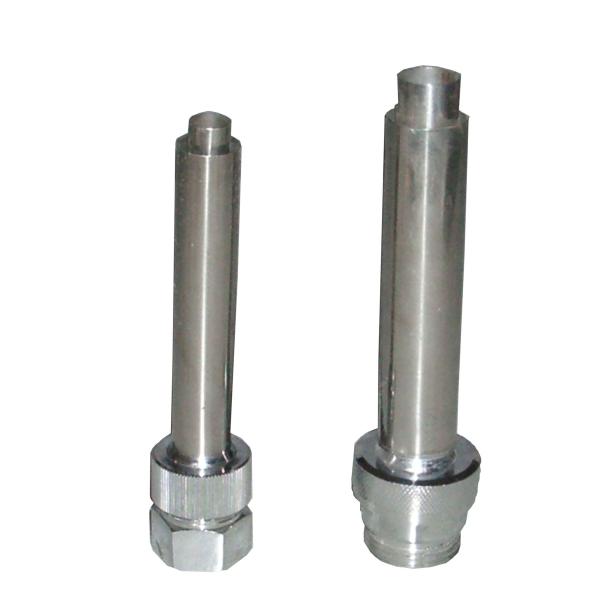

Brass / Stainless Steel Small Air Mixed Trumpet Water Fountain Nozzles Copper / SS304

Description:

The Small Air Mixed Trumpet Nozzles, with its Special new and perfect design and made by high quality brass or brass chromeplated, Which are popular and idea choice for domestic and oversea customers.

Water because of air infiltration under the refraction of light, bright, such as jade. Water is given priority to with vertical, commonly used to spray dry, commonly used for collocation center main water fountain, lighting effect is good.

With negative pressure produced by high-speed water flow inside nozzle, Big Air Mixed Trumpet nozzle can absorb the outer air into the nozzle and produce white and strong water column, which is anti-wind and suitable to all outdoor or indoor ponds. It can change the air capacity it absorbed by adjusting the outer shell. The more air it sucks, the more white the spray would be. Aerated spray nozzle also has an inside ball connector which allows 15 degrees adjustment vertically.

Specifications

Stainless Steel 304 Material:

Model Performance Water Inlet Water Outlet Size Weight
pressure (Kpa) capacity (m3/h) height (m) coverage (m) diameter (inch) connection type diameter (mm) number (pcs) height (mm) max dia. (mm) (kg)
CYZB50 180-320 20-25 2-10 straight or parabola 2" external thr. Ф30 * Ф25 * 1 204 59 0.9
CYZB40 150-280 15-18 2-10 1 1/2" Ф24 * Ф17 * 1 220 54 0.5
CYZB25 120-200 8-3 2-8 1" Ф17 * Ф12 * 1 180 43 0.4
CYZB20 100-150 4-6 1.5-5 3/4" Ф12 * Ф10 * 1 147 32 0.2
CYZB15 80-150 2-5 1-3 1/2" Ф12 * Ф8 * 1 147 32 0.2

Brass and Brass Chromplated Material:

Model Performance Water Inlet Water Outlet Size Weight
pressure (Kpa) capacity (m3/h) height (m) coverage (m) diameter (inch) connection type diameter (mm) number (pcs) height (mm) max dia.(mm) (kg)
CYZB50 180-320 20-25 2-10 straight or parabola 2" external thr. Ф30 * 1 220 63 0.9
CYZB40 150-280 15-18 2-10 1 1/2" Ф24 * 1 200 53 0.5
CYZB25 120-200 8-3 2-8 1" Ф17 * 1 180 48 0.3
CYZB20 100-150 4-6 1.5-5 3/4" Ф11 * 1 155 38 0.2
CYZB15 80-150 2-5 1-3 1/2" Ф10 * 1 145 35 0.3
