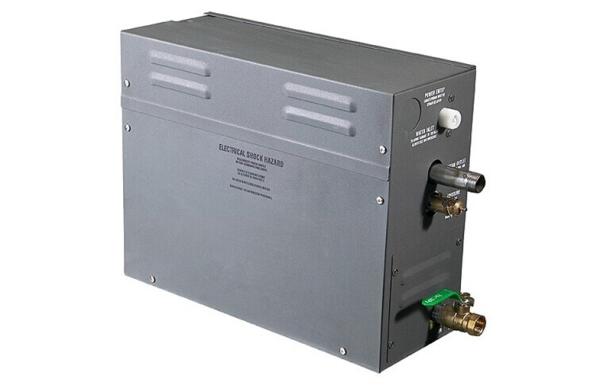

Wall-Mount Control Panel Economic Steam Generator with Stainless steel water tank
Wall-Mount Control Panel Economic Steam Generator with Stainless steel water tank
Wall-Mount Control Panel Economic Steam Generator with Stainless steel water tank
Wall-Mount Control Panel Economic Steam Generator with Stainless steel water tank
Wall-Mount Control Panel Economic Steam Generator with Stainless steel water tank
Wall-Mount Control Panel Economic Steam Generator with Stainless steel water tank
Wall-Mount Control Panel Economic Steam Generator with Stainless steel water tank
Wall-Mount Control Panel Economic Steam Generator with Stainless steel water tank
Wall-Mount Control Panel Economic Steam Generator with Stainless steel water tank
Wall-Mount Control Panel Economic Steam Generator with Stainless steel water tank
Wall-Mount Control Panel Economic Steam Generator with Stainless steel water tank
Wall-Mount Control Panel Economic Steam Generator with Stainless steel water tank
Specifications
Place of Origin :
China
Brand Name :
YICHENG
Certification :
CE
Model Number :
AR4C, AR5C, AR6C, AR7C, AR8C, AR9C
MOQ :
one piece
Price :
negotiation
Packaging Details :
Carton
Delivery Time :
5-10 days
Payment Terms :
Ex-worked
Supply Ability :
1000PCS/week
Description

Wall-Mount Control Panel Economic Steam Generator with Stainless steel water tank

Description:

Stainless steel water tank, the galvanizing and powder coated shell is anti-corrosive and durable.

When equipped with R30, a safety timer will automatically switch the generator off after 45 minutes. If equipped with TM60A, both the remaining working time and room temperature will be displayed on the panel. You could set temperature to the range of 35-55 C(95-131 F), and working time to 1~60 minutes or "CH" non-stop mode. To eliminate mineral building up, please manually drain the steam generator frequently.
The Economic steam generator features auto water feeding system, over-pressure protection and etc. A perfect choice for residential bath room or small business.

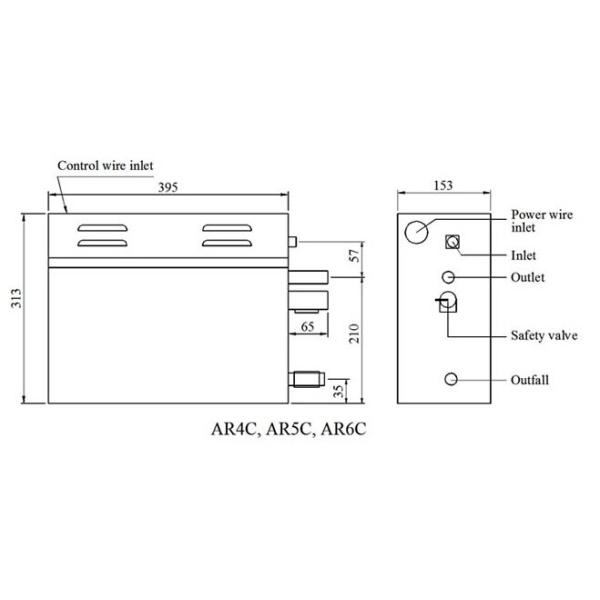

Model Power kW Power supply (50/60Hz) Power wire (copper) N*mm2 Dimensions cm Packing size cm Gross weight kg
Voltage V Current A
AR4C 4.0 220-240V~ 18.2 3*2.5 39.5*15.3*31.3 53.5*21*41 9
380-415V3N~ 6.1 5*1.5
AR5C 5.0 220-240V~ 22.7 3*2.5
380-415V3N~ 7.6 5*1.5
AR6C 6.0 220-240V~ 27.3 3*4.0
380-415V3N~ 9.1 5*1.5
AR7C 7.0 220-240V~ 31.8 3*6.0 44.5*18.2*31.3 53.5*21*41 11
380-415V3N~ 11.4 5*2.5
AR8C 8.0 220-240V~ 36.4 3*6.0
380-415V3N~ 13.6 5*2.5
AR9C 9.0 220-240V~ 40.9 3*10.0
380-415V3N~ 13.6 5*2.5
Notice :AR series Economic steam generators come with one group of heating elements and stanard manual drain valve. Auto drain valve could be installed on request.
