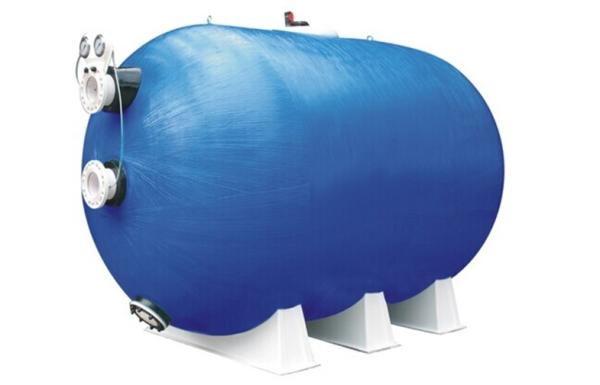

Horizontal Swimming Pool Sand Filters For Large Pools And Ponds Filtration Dia 1200mm
Horizontal Swimming Pool Sand Filters For Large Pools And Ponds Filtration Dia 1200mm
Horizontal Swimming Pool Sand Filters For Large Pools And Ponds Filtration Dia 1200mm
Horizontal Swimming Pool Sand Filters For Large Pools And Ponds Filtration Dia 1200mm
Specifications
Place of Origin :
China
Brand Name :
YICHENG
Certification :
CE
Model Number :
HF121900 - HF123000
MOQ :
one piece
Price :
negotiation
Packaging Details :
Carton
Delivery Time :
7-10 days
Payment Terms :
Ex-worked
Supply Ability :
100PCS/week
Description

Horizontal Swimming Pool Sand Filters For Large Pools And Ponds Filtration Diameter 1200mm

Description:

Horizontal sand filters are made of polyester reinforces with fiberglass; they are totally anti-corrosive, and have high mechanical, chemical and thermal resistance, higher quality water is achieved with their greater filtering capacity. Indexes of turbidity and contaminants of the filtered water are reduced due to their increased retentino capacity, the time between back washes incresses proportionally with the height of ime between back washes increase proportionally with the height of the filter bed, meaning there are fewer interruptions in filtration, and lower water consumption, because the number of back washes needed is decreased and there is less erosion of the filtering material.

A horizontal filter is the ideal choice in cases where a great volume of water is to be treated, and in cases which require optimization of the available space, as a single horizontal filter can subsitute up to 3 vertical filters of the same diameter simply by increasing its length.

Dimensions:

Φ1900X1390mm(HF121900)

Φ2300X1390mm(HF122300)

Φ2500X1390mm(HF122500)

Φ2700X1390mm(HF122700)

Φ3000X1390mm(HF123000)

Model Length Pipe size Filter Area Design flow Sand weight Gravel weight Volume Total weight Standard volume
mm mm inches m2 m3/h 0.4-0.8mm (kg) 1-2mm kg L kg m3
Diameter 1200mm
HF121900 1900 80 3 1.96 59 1100 425 1900 3220 3.10
HF122300 2300 80 3 2.42 73 1425 550 2350 3960 3.75
HF122500 2500 80 3 2.65 79 1750 700 2580 4320 4.10
HF122700 2700 100 4 2.87 86 2075 825 2800 4690 4.40
HF123000 3000 100 4 3.21 96 2325 925 3140

Working pressure: 2.5kg/cm2

Testing pressure: 4kg/cm3

Maximum temperature: 50 degree

Size of sand: 0.5-0.8mm

Optional Items:

Drain for Sand:

Horizontal Swimming Pool Sand Filters For Large Pools And Ponds Filtration Dia 1200mm

Colletion arms:

Horizontal Swimming Pool Sand Filters For Large Pools And Ponds Filtration Dia 1200mm

Nozzle plate:

Horizontal Swimming Pool Sand Filters For Large Pools And Ponds Filtration Dia 1200mm

Horizontal Swimming Pool Sand Filters For Large Pools And Ponds Filtration Dia 1200mm

Horizontal Swimming Pool Sand Filters For Large Pools And Ponds Filtration Dia 1200mm

Horizontal Swimming Pool Sand Filters For Large Pools And Ponds Filtration Dia 1200mm

Horizontal Swimming Pool Sand Filters For Large Pools And Ponds Filtration Dia 1200mm
