Specifications
Place of Origin :
China
Brand Name :
YICHENG
Certification :
CE
Model Number :
BCG series
MOQ :
one piece
Price :
negotiation
Packaging Details :
Carton
Delivery Time :
7-10 days
Payment Terms :
Ex-worked
Supply Ability :
100PCS/week
Description

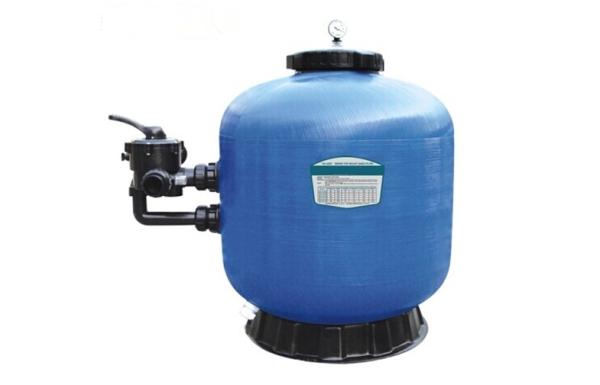

Side Mount Swimming Pool Sand Filter Equipment For Water Treatment System

Quick Detail:

Model

Material

Working pressure

Maximum temperature

BCG series

fiberglass

2.5kg/cm²

50° C(122° F)

Description:

Side mount sand filters are built to be tougher, longer lasting and better performing. Constructed of polyester resin and non-corrosive fiberglass filament winding, all internal components and connections are injection molded PVC. They produce more filtered water with less pump horsepower. UV-resistance surface allows working under sunshine. Easy-to-use six-position valve make you select any of the valve/filter operation in a proper way.

FEATURES:

Easy to Clean

Suitable for use with Automatic Pool Cleaners

High quality 6 position multi-port valve

Self-sealing barrel unions

Transparent lid for inspection of filtered water

Ring lock design for quick opening and closing, Thereby eliminating

The use of traditional screws

* Use only #20 white silica sand, size range 0.4-0.55mm.

Maximum working pressure: 2.5kg/cm² ; Maximum temperature: 50° C(122° F)

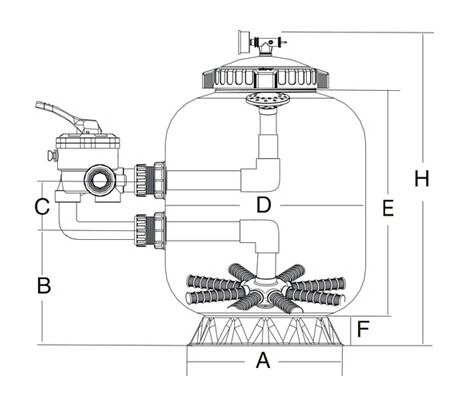

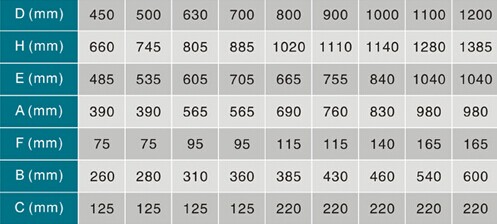

Dimensions:

Φ450X720mm(BCG450)

Φ500X775mm(BCG500)

Φ600X850mm(BCG600)

Φ700X955mm(BCG700)

Φ800X1055mm(BCG800)

Φ900X1150mm(BCG900)

Φ1000X1235mm(BCG1000)

Φ1100X1335mm(BCG1100)

Φ1200X1435mm(BCG1200)

Φ1400X1685mm(BCG1400)

Model Pipe size Filter Area Design flow Sand weight Tank volume Tank weight Valve volume Valve weight
(inches) m2 m3/h 0.4-0.8mm (kg) m3 kg m3 kg
BCG450 1.5 0.14 7.0 56 0.15 15 0.01 2.6
BCG500 1.5 0.20 10.0 90 0.20 18 0.01 2.6
BCG650 1.5 0.30 15.0 170 0.32 25 0.01 2.6
BCG700 1.5 0.37 18.5 225 0.46 30 0.01 2.6
BCG800 2.0 0.50 25.0 380 0.68 45 0.02 3.8
BCG900 2.0 0.64 30.0 453 0.92 50 0.02 3.8
BCG1000 2.0 0.79 35.0 712 1.48 65 0.02 3.8
BCG1100 2.0 0.98 44.0 975 1.98 70 0.02 3.8
BCG1200 2.0 1.13 50.0 1220 2.42 92 0.02 3.8
BCG1400 2.0 1.53 76.0 1720 3.26 112 0.02

Working pressure: 2.5kg/cm2

Maximum temperature: 50 degree

Side Mount Swimming Pool Sand Filter Equipment For Water Treatment System

Side Mount Swimming Pool Sand Filter Equipment For Water Treatment System
