Professional Side Mount Acryl Swimming Pool Sand Filters , Inground pool sand filter
Professional Side Mount Acryl Swimming Pool Sand Filters , Inground pool sand filter
Professional Side Mount Acryl Swimming Pool Sand Filters , Inground pool sand filter
Professional Side Mount Acryl Swimming Pool Sand Filters , Inground pool sand filter
Specifications
Place of Origin :
China
Brand Name :
YICHENG
Certification :
CE
Model Number :
FCG series
MOQ :
one piece
Price :
negotiation
Packaging Details :
Carton
Delivery Time :
7-10 days
Payment Terms :
Ex-worked
Supply Ability :
100PCS/week
Description

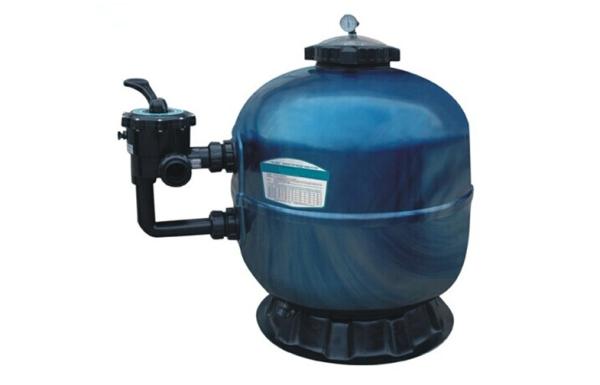

Side Mount Acryl Swimming Pool Sand Filters For Pools And Ponds Filtration

Description:

The Acryl sand filters are make of new type acryl material, considered to be one of the longest lasting filters available on the market, offering optimal performance and cost-efficiency. Manufactured from new material and fiberglass, the two halves of the filter are connected with qualified resin and fitted with collectors and diffuser of inalterable plastic to achieve full anti-corrosion protection. The characteristic of this filter is the innovative design used to achieve a unique product within the our filter range.

FEATURES:

Easy to Clean

Suitable for use with Automatic Pool Cleaners

High quality 6 position multi-port valve

Self-sealing barrel unions

Transparent lid for inspection of filtered water

Ring lock design for quick opening and closing, Thereby eliminating

The use of traditional screws

* Use only #20 white silica sand, size range 0.4-0.55mm.

Maximum working pressure: 2.5kg/cm² ; Maximum temperature: 50° C(122° F)

Dimensions:

Φ450X700mm(FCG450)

Φ500X725mm(FCG500)

Φ650X810mm(FCG650)

Φ700X900mm(FCG700)

Φ800X1040mm(FCG800)

Model Pipe size Filter Area Design flow Sand weight Tank volume Tank weight Valve volume Valve weight
(inches) m2 m3/h 0.4-0.8mm (kg) m3 kg m3 kg
FCG450 1.5 0.14 7.0 56 0.14 17.0 0.01 2.6
FCG500 1.5 0.20 10.0 90 0.18 19.0 0.01 2.6
FCG650 1.5 0.30 15.0 170 0.32 27.0 0.01 2.6
FCG700 1.5 0.38 18.5 225 0.45 32.0 0.01 2.6
FCG800 1.5 0.50 25.0 380 0.68 45.0 0.02 3.8

Working pressure: 2.5kg/cm2

Maximum temperature: 50 degree

The color of body can be chosen:

Professional Side Mount Acryl Swimming Pool Sand Filters , Inground pool sand filter
