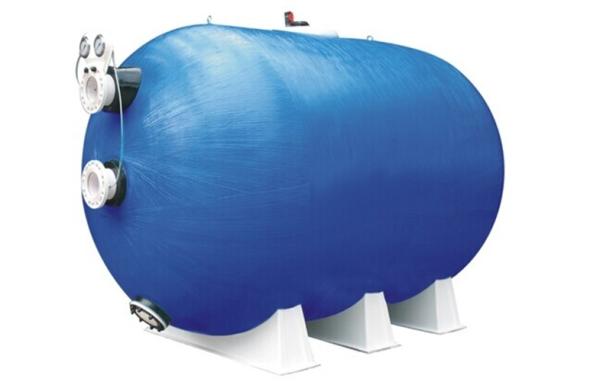

1600mm Dia Anti-corrosive Fiberglass Swimming Pool Sand Filters with Horizontal Tank
1600mm Dia Anti-corrosive Fiberglass Swimming Pool Sand Filters with Horizontal Tank
Specifications
Place of Origin :
China
Brand Name :
YICHENG
Certification :
CE
Model Number :
HF161900, HF162500, HF163000
MOQ :
one piece
Price :
negotiation
Packaging Details :
Carton
Delivery Time :
7-10 days
Payment Terms :
Ex-worked
Supply Ability :
100PCS/week
Description

Horizontal Swimming Pool Sand Filters For Large Pools And Ponds Filtration Diameter 1600mm

Description:

Horizontal sand filters are made of polyester reinforces with fiberglass; they are totally anti-corrosive, and have high mechanical, chemical and thermal resistance, higher quality water is achieved with their greater filtering capacity. Indexes of turbidity and contaminants of the filtered water are reduced due to their increased retentino capacity, the time between back washes incresses proportionally with the height of ime between back washes increase proportionally with the height of the filter bed, meaning there are fewer interruptions in filtration, and lower water consumption, because the number of back washes needed is decreased and there is less erosion of the filtering material.

A horizontal filter is the ideal choice in cases where a great volume of water is to be treated, and in cases which require optimization of the available space, as a single horizontal filter can subsitute up to 3 vertical filters of the same diameter simply by increasing its length.

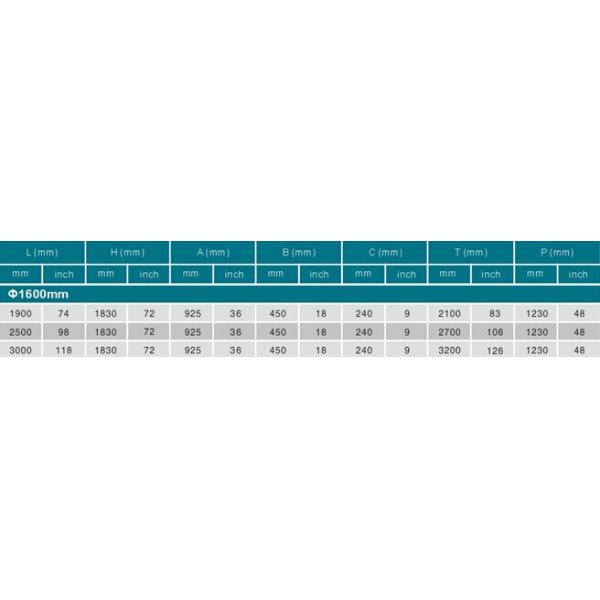

Dimensions:

Φ1900X1830mm(HF161900)

Φ2500X1830mm(HF162500)

Φ3000X1830mm(HF163000)

Model Length Pipe size Filter Area Design flow Sand weight Gravel weight Volume Total weight Standard volume
mm mm inches m2 m3/h 0.4-0.8mm (kg) 1-2mm kg L kg m3
Diameter 1600mm
HF161900 1900 100 4 2.47 74 2850 600 3220 5430 5.50
HF162500 2500 100 4 3.36 101 3875 850 4430 7400 7.20
HF163000 3000 150 6 4.10 123 4750 1050 5430 9020 8.65

Working pressure: 2.5kg/cm2

Testing pressure: 4kg/cm3

Maximum temperature: 50 degree

Size of sand: 0.5-0.8mm

Optional Items:

Drain for Sand:

1600mm Dia Anti-corrosive Fiberglass Swimming Pool Sand Filters with Horizontal Tank

Colletion arms:

1600mm Dia Anti-corrosive Fiberglass Swimming Pool Sand Filters with Horizontal Tank

Nozzle plate:

1600mm Dia Anti-corrosive Fiberglass Swimming Pool Sand Filters with Horizontal Tank

1600mm Dia Anti-corrosive Fiberglass Swimming Pool Sand Filters with Horizontal Tank

1600mm Dia Anti-corrosive Fiberglass Swimming Pool Sand Filters with Horizontal Tank

1600mm Dia Anti-corrosive Fiberglass Swimming Pool Sand Filters with Horizontal Tank

1600mm Dia Anti-corrosive Fiberglass Swimming Pool Sand Filters with Horizontal Tank
