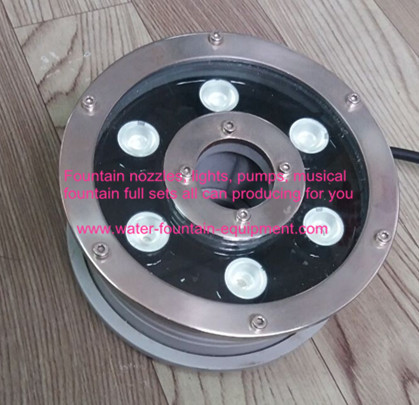

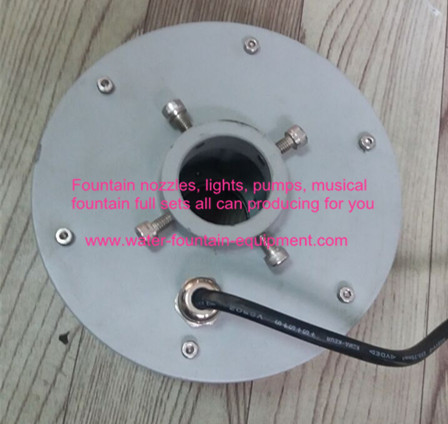

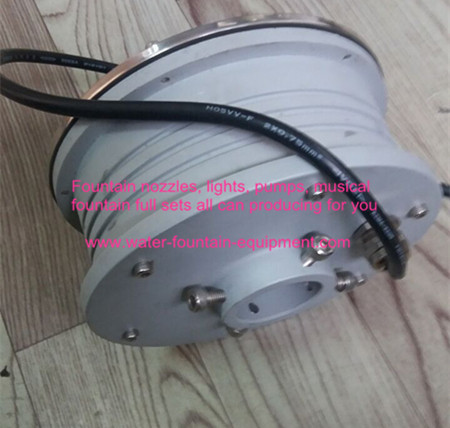

Submersible Pond Underwater Fountain Lights For One Nozzle Aluminum

Descrisption:

Donat LED underwater lights are more and more using in musical fountains, as it can let every nozzle has its brightness.

Features:

1. The shell of lamps is 304 stainless steel surface and aluminum body casting;
2. 5-8mm thickness high-strength tempered glass, high temperature resistant;
3. There is high temperature resistant to import silicon rubber sealing ring;
4. The nickel plated copper waterproof cable lock;
5. 1.6mm high quality high thermal conductivity aluminum PCB;
6. High thermal conductivity W.m 1.59/K thermal conductive silicone;
7. Lens: optical lens, any angle can be made
8. Source: Big Power LED, 1W*6PCS, 2W*6PCS, 3W*6PCS, 1W*9PCS, 2W*9PCS, 3W*9PCS, 1W*12PCS, 2W*12PCS, 3W*12PCS, 1W*15PCS, 2W*15PCS, 3W*15PCS
9. Color: red, green, blue, amber, white, warm white, RGB;
10. Control mode: synchronous control (only support power frequency voltage), normally on the four lines of three circuits including Yang external control PWM, four line three circuit, PLC relay control, DMX512 serial external control
11. Driver: built-in constant-current drive;
12. Input voltage: AC12V, AC24V, DC12V, DC24V
13. Consumed power: Pw ≦ 10W;
14. The input current, Iin ≦ 0.85 A;
15. Protection grade reference: IP68;
16. Using the environment temperature: - 20 ℃ - 45 ℃
17. Appearance size: Diameter 180mm * Height 68mm ;
18. Suitable for diameter less than DN51mm conduit;
19. Application: fountain, artificial lake, lake of natural ecology, swimming pool, aquarium etc. All using underwater lighting or decoration places.

Application Places:

For musical fountain, it will have very great effection, one light for one nozzle

Technical Specification:
