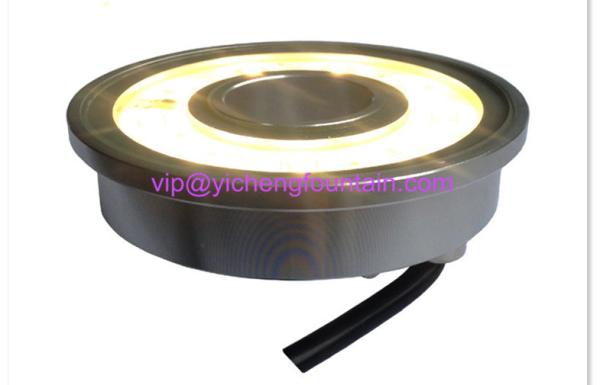

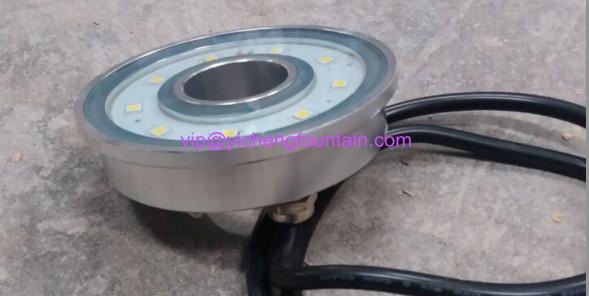

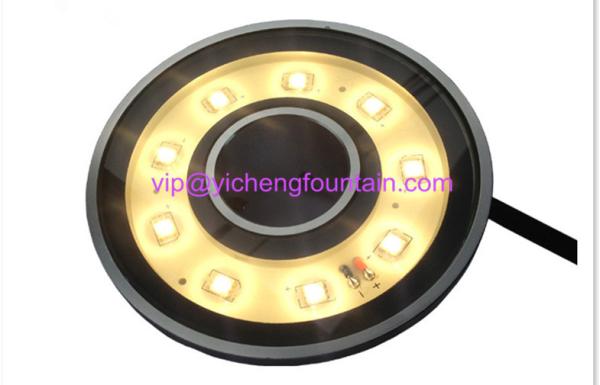

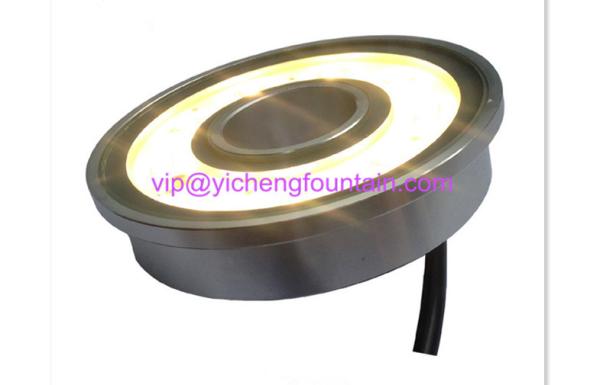

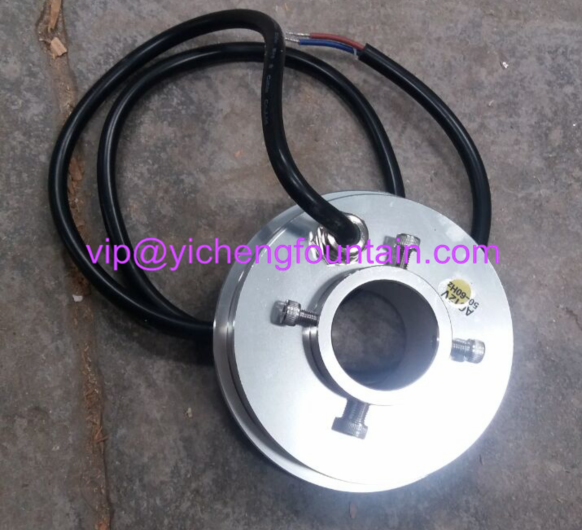

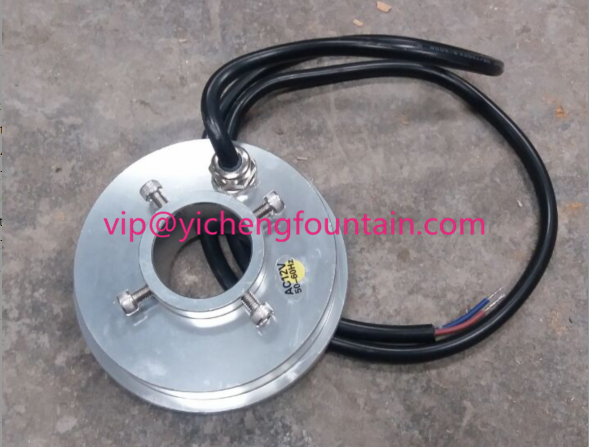

110mm Diameter Middle Hole Type Underwater Led Fountain Lights 5W RGB LED Aluminium Material

This type is specially using for Vanke Real Estate fountain pools all around Guangdong Province Buildings

Technical Specification:

Descrisption:

1. The shell of lamps is fully aluminium casting, can be used in salt water not rust;
2. 5-8mm thickness high-strength tempered glass, high temperature resistant;
3. There is high temperature resistant to import silicon rubber sealing ring;
4. The nickel plated copper waterproof cable lock;
5. 1.6mm high quality high thermal conductivity aluminum PCB;
6. High thermal conductivity W.m 1.59/K thermal conductive silicone;
7. Lens: optical lens, any angles can be made
8. Source: SMD LED, 5W, single color or RGB color changing
9. Color: red, green, blue, amber, white, warm white, RGB
10. Control mode: synchronous control (only support power frequency voltage), normally on the four lines of three circuits including Yang external control PWM, four line three circuit, PLC relay control, DMX512 serial external control
11. Driver: built-in constant-current drive;
12. Input voltage: AC12V, AC24V, DC12V, DC24V
13. Consumed power: Pw ≦ 10W;
14. The input current, Iin ≦ 0.85 A;
15. Protection grade reference: IP68;
16. Using the environment temperature: - 20 ℃ - 45 ℃
17. Appearance size: Diameter 110mm * Height 35mm ;
18. Suitable for diameter less than DN36mm conduit;
19. Application: fountain, artificial lake, lake of natural ecology, swimming pool, aquarium etc. All using underwater lighting or decoration places.

Good artwork process:
1) homothermal searing-iron to pretect the LED chips, soldering temperature is 260 degree, time less than 3 seconds.
2) Very good performance of thermal viscose.
3) There are good extension tube around all wires and make them more hard wearing, temperature resistant, acid resistant etc.
