Specifications
Brand Name :
YICHENG
Model Number :
Dry Fountain Grating
Certification :
CE
Place of Origin :
Guangzhou, China
MOQ :
one set
Price :
negotiation
Payment Terms :
T/T, western union, L/C, MoneyGram
Supply Ability :
100sets/month
Delivery Time :
within one week
Packaging Details :
film, planel, wooden case
Material :
Stainless Steel 304 (316 can also made)
Size :
Fixed the installation areas
Surface :
polish or not
Thickness :
1.2mm, 1.5mm
Shape :
Square, rectangle
Open type :
yes, easy for cleaning
Description

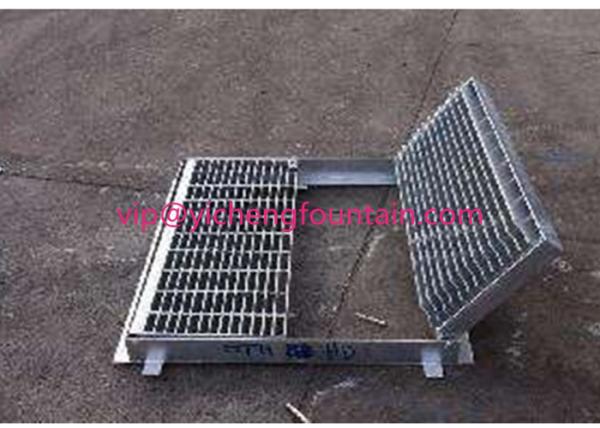

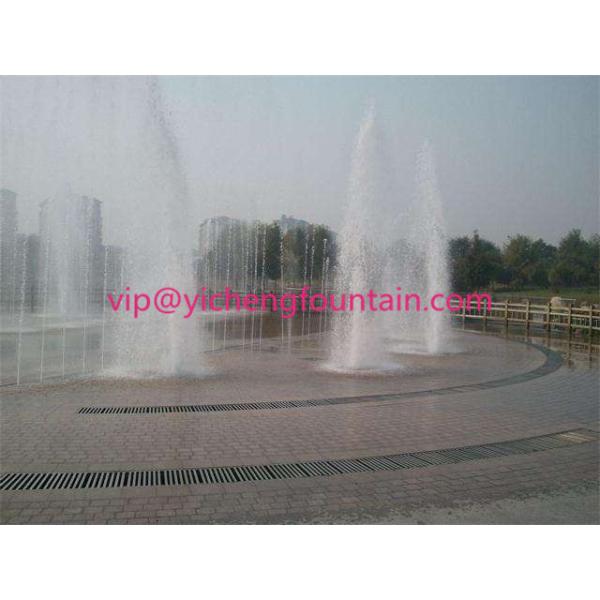

Floor Grating For Dry Fountain Gather Water Back Open Type Made In Stainless Steel Or Galvanized Steel Material

Description:

1.) Processing technic:

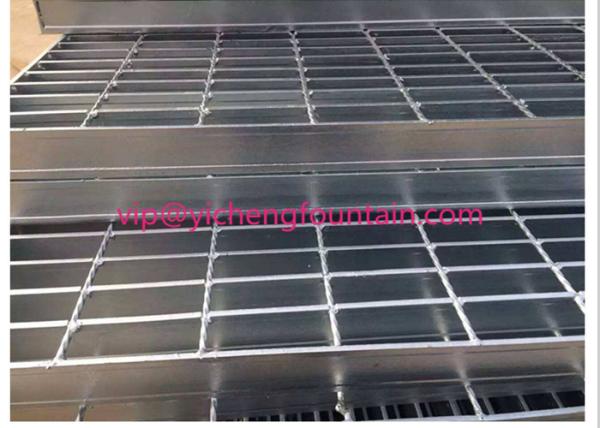

Galvanized steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.


2.) Features:

Intensity, light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.


3.) Useage: Widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, environmental sanitation engineering fields of the platform, footpath, zhanqiao pier, ditch lid, manhole cover, ladders, fences, guardrail etc.


4.) Material: Carbon steel, Stainless steel ,and so on .


5.) Surface treatment: Hot-dipped-galvanized ,electro galvanized or PVC coated ....

6.) Size: Standard size or OEM(Making as the customers' request).


7.) Packing: Naked or packing as the customers' request

Product Details
No. Terms Description
1 Material Low carbon,middle carbon,stainless steel
2. Material standard GB700-88,ASTM(A36),BS4360(43A),AS3679
3. Bearing bar size

20*3,20*5,25*3,25*5,32*3,32*5,35*3,35*5,

40*3,40*5,45*5,50*3,50*5,55*5,60*5,65*5mm etc,
4. Bearing bar pitch 15,20,25,30,33,35,38,40,50,60,80,90mm
5. Cross bar pitch 24-200mm
6. Surface treatment Hot dipped galvanized,painted,self-color,
7. Grating standard

YB/T4001.1-2007,

ANSI/NAAMM(MBG531-88),

BS4592-1987,

AS1657-1985
8. Bearing bar type F,I ,S,IS type
9. Application Floor walkway,industrial platform,stair tread,metal ceiling
10. Feature

Fine appearance,anti-corrosive,simple installation,light weight,

high load,anti-skid,Prevent dirt deposition,ventilation,anti-explosion
11. Payment terms TT
12. Package

Pallets in containers packed by steel strap and worthy sea shipping,

or according to the customers' requirements
13. Product capacity 10days for a 20”

Fountain Gather Water Back Open Type SS / Galvanized Steel Floor Grating For Dry

Fountain Gather Water Back Open Type SS / Galvanized Steel Floor Grating For Dry
