Specifications
Place of Origin :
Guangzhou, China
Brand Name :
YICHENG
Certification :
CE
Model Number :
M-660P
MOQ :
one piece
Price :
negotiation
Packaging Details :
carton
Delivery Time :
within one week
Payment Terms :
T/T, western union, L/C
Supply Ability :
1000000pcs/month
Description

Zinc Metal Swimming Pool Dosing Pump , Swimming Pool Disaffection Equipment

The C-600 series dosing pump is designed to inject chemicals into piping systems. All models are equipped with a side mount mechanical flow rate adjustment knob. Optional on/off cycling timers are available.

Product Featurs

☆ Double-ball ceramic check valves.

☆ PVDF(Kynar) valve assemblies.

☆ Viton O-rings

☆ Hight outlet pressure capablility of 125 PSI

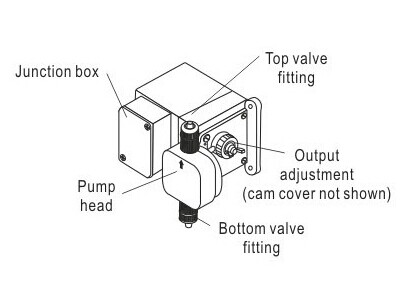

☆ Easy access ,side mounted mechanical feed rate adjustment.

☆ Ball bearing supported motor drive shaft

☆ Permanently lubricated ball bearing motor

☆ 27:1 adjustment turn down ratio

☆ Easy servicing

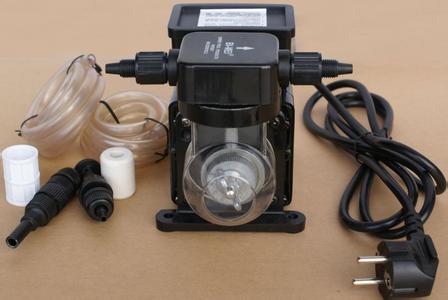

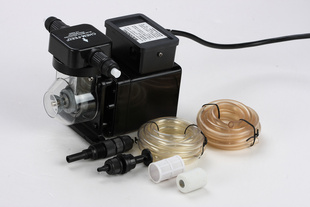

☆ Includes suction tube, foot valve & strainer,suction bube weight , suction tubing ,

Discharge tubing and injection fitting with internal back-flow check valve and Mounting hardware.

Model Max. GPD Max. GPH Max.LPH Strokes Per Minute Max.PSI
M-660P 110 4.6 17.4 60 60

Specifications

Maximum Working Pressure 125 Psi/8.6 bar*
Maximum Fluid Temperature 130 F / 54℃
Output Accuracy +/- 10% of maximum(water@70°F, 0 psig, and 5'suction lift
Ambient Temperature Range 14 to 110°F / -10 to 43℃
Enclosure Zinc Metal
Duty Cycle Continuous
Maximum Viscosity 1,000 Centipoise
Maximum Suction Lift up to 10ft. Water
Power Requirements 115V 60Hz 45 Watts
220V 60Hz 45 Watts
230V 60Hz 45 Watts
24V 60Hz 45 Watts
Dimensions 6-1/2 high x 6-1/2 wide x 5-3/4 deep
Weight 81b.

Zinc Metal Swimming Pool Dosing Pump , Swimming Pool Disaffection Equipment

Helpful Information

TO CONVERT LIQUID TO FORMULA
GALLONS LITERS GALLONS X 3.785 = LITERS
LITERS GALLONS LITERS X 0.6442 = GALLONS
OUNCES MILLILITERS OUNCES X 29.57 = MILLILITERS
MILLITERS OUNCES MILLILITERS X 0.338 = OUNCES
MILLITERS/MIN GAL.PER HOUR ML/MIN X 0.0158 = GALLONS PER HOUR
FEET OF WATER PSI FT/HEAD X 0.443 = PSI
GALLONS POUNDS GALLONS X 8.337 = POUND
GALLONS CUBIC FEET GALLONS X 0.1337 = CUBIC FEET
GALLONS CUBIC INCHES GALLONS X 231 = CUBIC INCHES
GALLONS/DAY MILLILITERS/MIN GALLONS/DAY X 2.628 = MILLILITERS/MIN
