Specifications
Place of Origin :
China
Brand Name :
YICHENG
Certification :
CE
Model Number :
HF141900, HF142500, HF143000
MOQ :
one piece
Price :
negotiation
Packaging Details :
Carton
Delivery Time :
7-10 days
Payment Terms :
Ex-worked
Supply Ability :
100PCS/week
Description

1400mm Dia Swimming Pool Cartridge Filters , Horizontal Tank Sand Filters

Description:

Horizontal sand filters are made of polyester reinforces with fiberglass; they are totally anti-corrosive, and have high mechanical, chemical and thermal resistance, higher quality water is achieved with their greater filtering capacity. Indexes of turbidity and contaminants of the filtered water are reduced due to their increased retentino capacity, the time between back washes incresses proportionally with the height of ime between back washes increase proportionally with the height of the filter bed, meaning there are fewer interruptions in filtration, and lower water consumption, because the number of back washes needed is decreased and there is less erosion of the filtering material.

A horizontal filter is the ideal choice in cases where a great volume of water is to be treated, and in cases which require optimization of the available space, as a single horizontal filter can subsitute up to 3 vertical filters of the same diameter simply by increasing its length.

Dimensions:

Φ1900X1600mm(HF141900)

Φ2500X1600mm(HF142500)

Φ3000X1600mm(HF143000)

Model Length Pipe size Filter Area Design flow Sand weight Gravel weight Volume Total weight Standard volume
mm mm inches m2 m3/h 0.4-0.8mm (kg) 1-2mm kg L kg m3
Diameter 1400mm
HF141900 1900 100 4 2.23 67 2100 575 2530 4250 4.85
HF142500 2500 100 4 3.02 91 2825 800 3460 5740 6.25
HF143000 3000 100 4 3.67 110 3450 1000 4230 6990 7.45

Working pressure: 2.5kg/cm2

Testing pressure: 4kg/cm3

Maximum temperature: 50 degree

Size of sand: 0.5-0.8mm

Option: Dran for sand

1400mm Dia Swimming Pool Cartridge Filters , Horizontal Tank Sand Filters

Collector arms

1400mm Dia Swimming Pool Cartridge Filters , Horizontal Tank Sand Filters

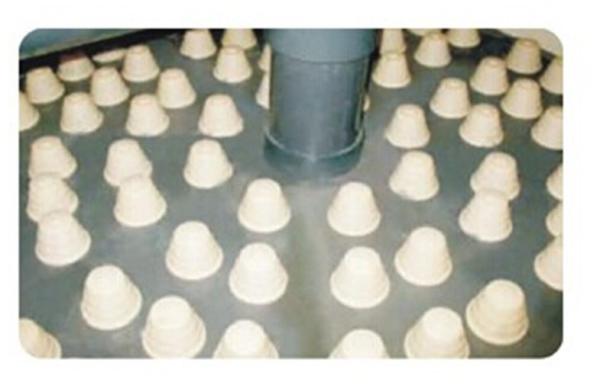

Nozzle plate

1400mm Dia Swimming Pool Cartridge Filters , Horizontal Tank Sand Filters

1400mm Dia Swimming Pool Cartridge Filters , Horizontal Tank Sand Filters

1400mm Dia Swimming Pool Cartridge Filters , Horizontal Tank Sand Filters

1400mm Dia Swimming Pool Cartridge Filters , Horizontal Tank Sand Filters

1400mm Dia Swimming Pool Cartridge Filters , Horizontal Tank Sand Filters
