Top Mount Fiberglass Swimming Pool Cartridge Filters For Pools / Ponds Filtration
Top Mount Fiberglass Swimming Pool Cartridge Filters For Pools / Ponds Filtration
Top Mount Fiberglass Swimming Pool Cartridge Filters For Pools / Ponds Filtration
Top Mount Fiberglass Swimming Pool Cartridge Filters For Pools / Ponds Filtration
Top Mount Fiberglass Swimming Pool Cartridge Filters For Pools / Ponds Filtration
Top Mount Fiberglass Swimming Pool Cartridge Filters For Pools / Ponds Filtration
Top Mount Fiberglass Swimming Pool Cartridge Filters For Pools / Ponds Filtration
Top Mount Fiberglass Swimming Pool Cartridge Filters For Pools / Ponds Filtration
Top Mount Fiberglass Swimming Pool Cartridge Filters For Pools / Ponds Filtration
Top Mount Fiberglass Swimming Pool Cartridge Filters For Pools / Ponds Filtration
Specifications
Place of Origin :
China
Brand Name :
YICHENG
Certification :
CE
Model Number :
ADG series
MOQ :
one piece
Price :
negotiation
Packaging Details :
Carton
Delivery Time :
7-10 days
Payment Terms :
Ex-worked
Supply Ability :
100PCS/week
Description

Top Mount Fiberglass Swimming Pool Cartridge Filters For Pools / Ponds Filtration

Description:

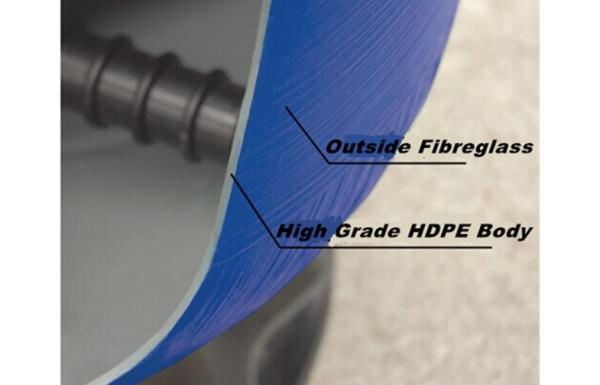

Top mount sand filters are built to be tougher, longer lasting and better performing. Constructed of polyester resin and non-corrosive fiberglass filament winding, all internal components and connections are injection molded PVC. They produce more filtered water with less pump horsepower. UV-resistance surface allows working under sunshine. Easy-to-use six-position valve make you select any of the valve/filter operation in a proper way.

FEATURES:

Easy to Clean

Suitable for use with Automatic Pool Cleaners

High quality 6 position multi-port valve

Self-sealing barrel unions

Transparent lid for inspection of filtered water

Ring lock design for quick opening and closing, Thereby eliminating

The use of traditional screws

* Use only #20 white silica sand, size range 0.4-0.55mm.

Maximum working pressure: 2.5kg/cm² ; Maximum temperature: 50° C(122° F)

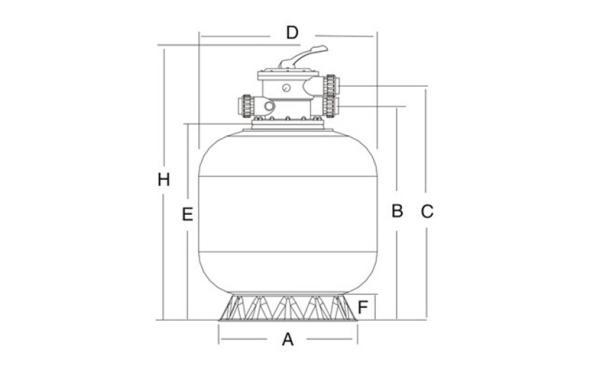

Dimension:

Φ400X730mm(ADG400)

Φ450X800mm(ADG450)

Φ500X840mm(ADG500)

Φ600X940mm(ADG600)

Φ800X1190mm(ADG800)

Φ900X1320mm(ADG900)

Φ1000X1410mm(ADG1000)

Φ1200X1630mm(ADG1200)

Φ1400X1860mm(ADG1400)

Model

Pipe size

Filter Area

Design flow

Sand weight

Tank

volume

Tank

weight

Valve

volume

Valve

weight

(inches)

m2

m3/h

0.4-0.8mm (kg)

m3

kg

m3

kg

ADG400

1.5

0.11

6.0

28

　

　

　

　

ADG450

1.5

0.14

7.0

50

0.15

15

0.01

2.6

ADG500

1.5

0.20

10.0

80

0.20

18

0.01

2.6

ADG650

1.5

0.30

15.0

170

0.32

25

0.01

2.6

ADG700

1.5

0.37

18.5

225

0.46

30

0.01

2.6

ADG800

2.0

0.50

25.0

380

0.68

45

0.02

3.8

ADG900

2.0

0.64

30.0

453

0.92

50

0.02

3.8

ADG1000

2.0

0.79

35.0

712

1.48

65

0.02

3.8

ADG1100

2.0

0.98

44.0

975

1.98

70

0.02

3.8

ADG1200

2.0

1.13

50.0

1220

2.42

92

0.02

3.8

ADG1400

2.0

1.53

76.0

1720

3.26

112

0.02

3.8

Working pressure: 2.5kg/cm2

Maximum temperature: 50 degree
