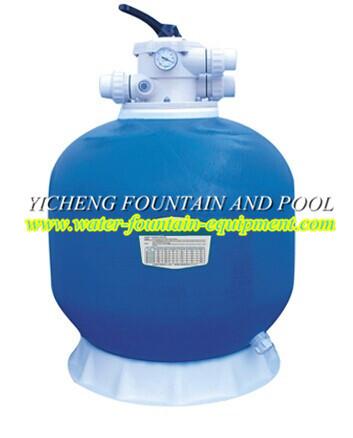

Top Mount Fiberglass Swimming Pool Sand Filters For Pools / Ponds Filtration
Top Mount Fiberglass Swimming Pool Sand Filters For Pools / Ponds Filtration
Top Mount Fiberglass Swimming Pool Sand Filters For Pools / Ponds Filtration
Top Mount Fiberglass Swimming Pool Sand Filters For Pools / Ponds Filtration
Specifications
Brand Name :
YICHENG
Model Number :
ADG series
Certification :
CE
Place of Origin :
China
MOQ :
one piece
Price :
negotiation
Payment Terms :
Ex-worked, L/C, T/T, Western Union
Supply Ability :
100PCS/week
Delivery Time :
7-10 days
Packaging Details :
Carton
Material :
Fiberglass
Connection :
Top Mount
Maximum working pressure: :
2.5kg/cm²
Maximum temperature :
50° C(122° F)
Size :
Diameter: 400mm - 1200mm
Description

Top Mount Fiberglass Swimming Pool Sand Filters For Pools / Ponds Filtration

Description:

Top mount sand filters are built to be tougher, longer lasting and better performing. Constructed of polyester resin and non-corrosive fiberglass filament winding, all internal components and connections are injection molded PVC. They produce more filtered water with less pump horsepower. UV-resistance surface allows working under sunshine. Easy-to-use six-position valve make you select any of the valve/filter operation in a proper way.

FEATURES:

Easy to Clean

Suitable for use with Automatic Pool Cleaners

High quality 6 position multi-port valve

Self-sealing barrel unions

Transparent lid for inspection of filtered water

Ring lock design for quick opening and closing, Thereby eliminating

The use of traditional screws

Use only #20 white silica sand, size range 0.4-0.55mm.

Maximum working pressure: 2.5kg/cm² ; Maximum temperature: 50° C(122° F)

Dimension:

Φ400X730mm(ADG400)

Φ450X800mm(ADG450)

Φ500X840mm(ADG500)

Φ600X940mm(ADG600)

Φ800X1190mm(ADG800)

Φ900X1320mm(ADG900)

Φ1000X1410mm(ADG1000)

Φ1200X1630mm(ADG1200)

Φ1400X1860mm(ADG1400)

Model

Pipe size

Filter Area

Design flow

Sand weight

Tank

volume

Tank

weight

Valve

volume

Valve

weight

(inches)

m2

m3/h

0.4-0.8mm (kg)

m3

kg

m3

kg

ADG400

1.5

0.11

6.0

28

　

　

　

　

ADG450

1.5

0.14

7.0

50

0.15

15

0.01

2.6

ADG500

1.5

0.20

10.0

80

0.20

18

0.01

2.6

ADG650

1.5

0.30

15.0

170

0.32

25

0.01

2.6

ADG700

1.5

0.37

18.5

225

0.46

30

0.01

2.6

ADG800

2.0

0.50

25.0

380

0.68

45

0.02

3.8

ADG900

2.0

0.64

30.0

453

0.92

50

0.02

3.8

ADG1000

2.0

0.79

35.0

712

1.48

65

0.02

3.8

ADG1100

2.0

0.98

44.0

975

1.98

70

0.02

3.8

ADG1200

2.0

1.13

50.0

1220

2.42

92

0.02

3.8

ADG1400

2.0

1.53

76.0

1720

3.26

112

0.02

3.8

Working pressure: 2.5kg/cm2

Maximum temperature: 50 degree

Top Mount Fiberglass Swimming Pool Sand Filters For Pools / Ponds Filtration
