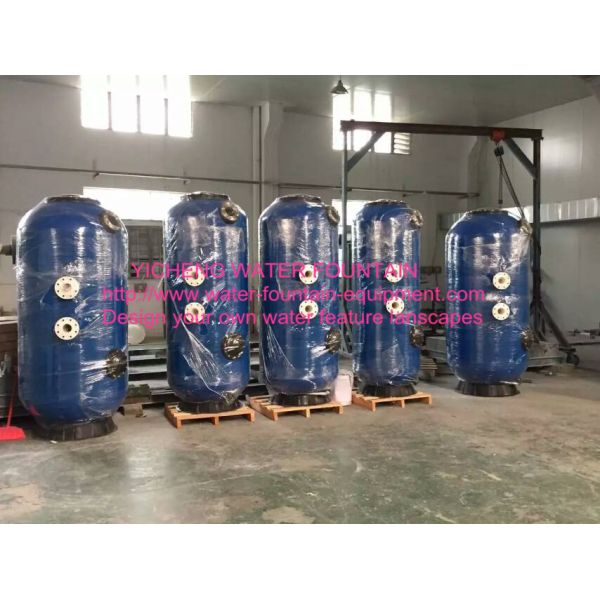

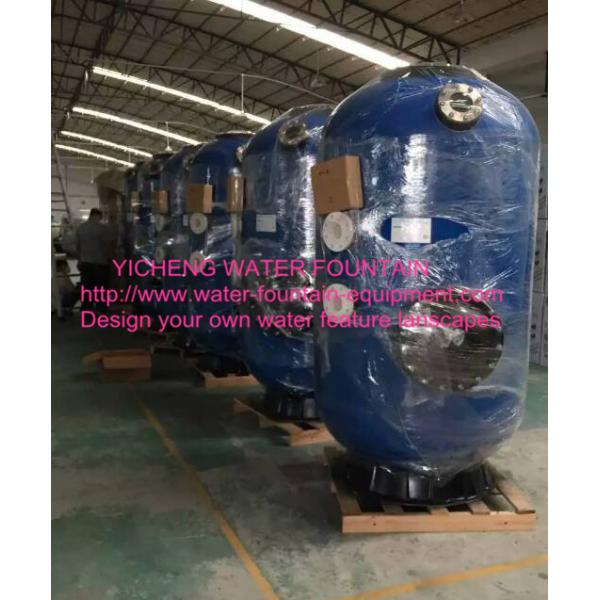

Fiberglass Depth Swimming Pool Sand Filters Side Mount Type Connect To Butterfly Valves

Specifications

Brand Name :

YICHENG

Model Number :

ECG series

Certification :

Place of Origin :

China

MOQ :

one piece

Price :

negotiation

Payment Terms :

T/T, Western Union, MoneyGram, L/C

Supply Ability :

100PCS/week

Delivery Time :

7-10 days

Packaging Details :

Carton

Material :

Fiber Glass

Body Color :

As your requests

Bottom Color :

White or Black

Optional :

Sight glass, manhole, Manual air purge, Collector arms, Nozzle plate

Pipe size :

2 inch

Connect :

Butterfly Valves System

Description

Fiberglass Depth Swimming Pool Sand Filters Side Mount Type Connect To Butterfly Valves

Description:

It is made of high quality fibre glass which is chemical and sunlight resistance, and can be installed out-of-doors. Side mount, easily for operating. It also can be feeded and mixed different filtrate medium (Such as: Zeolit, sand and Active carbon) to make the water more clear. It is best choice for residential area and public water.

High performance vertical bobbin wound filters are manufactured by using reinforced polyester with fiber glass, which is completely anti-corrosive, with high mechanical chemical and thermal resistance. One of its main characteristics is the height of its filtering layer. Dirt is driven through out the sand bed and trapped in minute spaces between the particles of sand. Initially, a clean bed will remove larger particles and then as the sand bed starts to load u p. it will remove finer particles. The higher it is, the better it performances.

FEATURES:

Easy to Clean

Suitable for use with Automatic Pool Cleaners

High quality Butterfly Valves System

Self-sealing barrel unions

Transparent lid for inspection of filtered water

Ring lock design for quick opening and closing, Thereby eliminating

The use of traditional screws

* Use only #20 white silica sand, size range 0.4-0.55mm.

Maximum working pressure: 2.5kg/cm² ; Maximum temperature: 50° C(122° F)

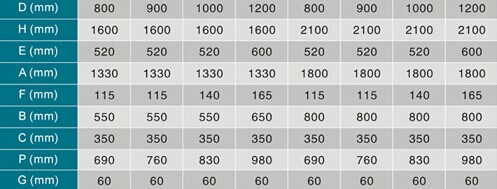

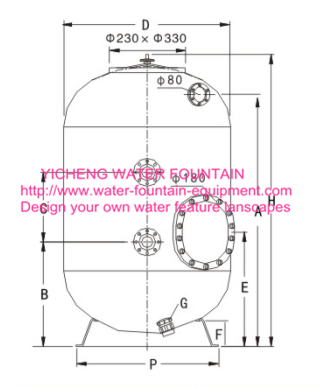

Dimensions:

Φ800X1600mm(ECG15800)

Φ900X1600mm(ECG15900)

Φ1000X1600mm(ECG151000)

Φ1200X1600mm(ECG151200)

Φ800X2100mm(ECG20800)

Φ900X2100mm(ECG20900)

Φ1000X2100mm(ECG201000)

Φ1200X2100mm(ECG201200)

Model	Pipe size	Filter Area	Design flow	Sand weight	Gravel weight	Height	Standard volume	Standard weight
Model	(inches)	m2	m3/h	0.4-0.8mm (kg)	1-2mm(kg)	mm	m3	kg
ECG15800	2.0	0.50	15.0	470	200	1000	1.55	75
ECG15900	2.0	0.64	19.2	590	255	1600	1.90	79
ECG151000	2.0	0.79	23.7	729	301	1600	2.28	90
ECG151200	2.0	1.13	33.9	842	490	1600	3.15	104
ECG20800	2.0	0.50	15.0	811	200	2100	1.98	102
ECG20900	2.0	0.64	19.2	1035	255	2100	2.45	110
ECG201000	2.0	0.79	23.7	1280	301	2100	2.92	125
ECG201200	2.0	1.13	33.9	1634	490	2100	4.05

Working pressure: 2.5kg/cm2

Maximum temperature: 50 degree

Optional items:

Manual air purge:
