SS Material And Brass Material Dancing Water Fountain Nozzle Adjustable Spray Nozzles
SS Material And Brass Material Dancing Water Fountain Nozzle Adjustable Spray Nozzles
SS Material And Brass Material Dancing Water Fountain Nozzle Adjustable Spray Nozzles
SS Material And Brass Material Dancing Water Fountain Nozzle Adjustable Spray Nozzles
SS Material And Brass Material Dancing Water Fountain Nozzle Adjustable Spray Nozzles
SS Material And Brass Material Dancing Water Fountain Nozzle Adjustable Spray Nozzles
SS Material And Brass Material Dancing Water Fountain Nozzle Adjustable Spray Nozzles
SS Material And Brass Material Dancing Water Fountain Nozzle Adjustable Spray Nozzles
SS Material And Brass Material Dancing Water Fountain Nozzle Adjustable Spray Nozzles
SS Material And Brass Material Dancing Water Fountain Nozzle Adjustable Spray Nozzles
SS Material And Brass Material Dancing Water Fountain Nozzle Adjustable Spray Nozzles
SS Material And Brass Material Dancing Water Fountain Nozzle Adjustable Spray Nozzles
Specifications
Brand Name :
YICHENG
Model Number :
ZWT series
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1, 000,000pcs/week
Delivery Time :
5-10 days
Packaging Details :
carton
Material :
stainless steel, Brass, Brass with chrom
Size :
1/8 inch to 3 inch
With valve :
Brass and Chrom model can be
Thread :
Male and Female can be made as your request
Spray Height :
1-10 meters
Pressure :
80-300Kpa
Description

SS Material And Brass Material Dancing Water Fountain Nozzle Adjustable Spray Nozzles



Description:

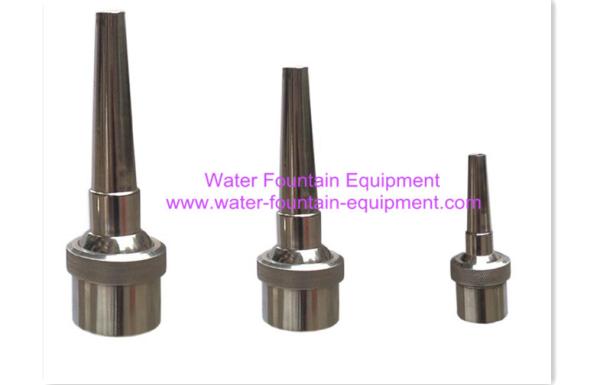

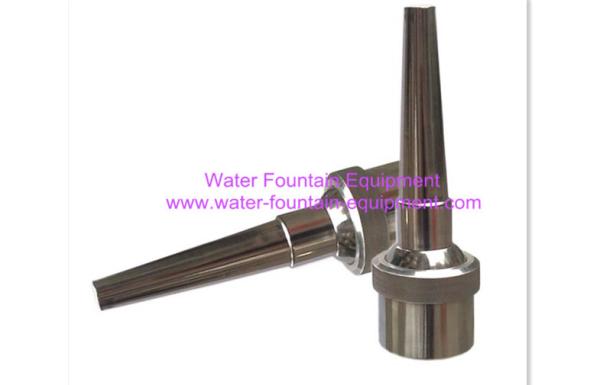

1. Adjustable straight spray nozzle with single jet, direct spray .

2. The water pillar is crystal clear, crisp line and smooth.

3. The jet line can be adjusted in the range of ±10, with a flexible install way and can form various water shapes.

4. The adjustable straight nozzle can be widely used in fountains in any occasions, and is necessary nozzles for music fountain.

5. It has a ball-shaped connector which can be adjusted 15 along vertical direction.

6. The adjustable straight nozzles can be combined into different spraying results.
7. It will have a better effect when working with underwater lights.

It can match with:

1. Musical Fountain

2. Laser Water- Screen movie and water-screen ads

3. Water irrigation

4. Street, Plaza and Park lighting

5. Water Purification of River and Swimming Pool

6. Landscape Architecture Planning

7. All kinds of fountain equipments and Irrigation equipments



Specifications
Stainless steel 304 Material:

Model Performance Water Inlet Water Outlet Size Weight
pressure (Kpa) capacity (m3/h) height (m) coverage (m) diameter (inch) connection type diameter (mm) number (pcs) height (mm) max dia. (mm) (kg)
ZWT65 70-200 12-18 3-10 parabola or radial 2 1/2" external thr. Ф20 * 1 235 80 1.46
ZWT50 70-200 6-8 3-8 2" Ф13 * 1 225 73 0.71
ZWT40 70-150 4-6 3-8 1 1/2" Ф12 * 1 212 60 0.55
ZWT25 50-150 3-4 3-8 1" Ф8 * 1 115 43 0.19
ZWT20 50-150 1.5-3 1-8 3/4" internal thr. Ф7 * 1 100 37 0.15
ZWT15 50-150 0.5-1.5 1-6 1/2" internal thr. Ф5 * 1 77 31 0.16
* Can be made all in internal thread.


Brass Material:

Model Performance Water Inlet Water Outlet Size Weight
pressure (Kpa) capacity (m3/h) height (m) coverage (m) diameter (inch) connection type diameter (mm) number (pcs) height (mm) max dia. (mm) (kg)
ZWT65 70-200 12-18 3-10 parabola or radial 2 1/2" external thr. Ф20 * 1 170 75 0.94
ZWT50 70-200 6-8 3-8 2" Ф18 * 1 150 60 0.6
ZWT40 70-150 4-6 3-8 1 1/2" Ф12 * 1 117 53 0.45
ZWT25 50-150 3-4 3-8 1" Ф8 * 1 112 43 0.26
ZWT20 50-150 1.5-3 1-8 3/4" internal thr. Ф8 * 1 92 32 0.16
ZWT15 50-150 0.5-1.5 1-6 1/2" internal thr. Ф6 * 1 83 27 0.12
ZWT10 50-150 0.1-1.0 1-4 3/8" external thr. Ф5 * 1 67 20 0.07
ZWT8 50-150 0.1-0.5 1-3 1/4" Ф4 * 1 61 21 0.06
ZWT6 30-80 0.05-0.4 1-2 1/8" Ф4 * 1 60 16 0.04


SS Material And Brass Material Dancing Water Fountain Nozzle Adjustable Spray Nozzles

SS Material And Brass Material Dancing Water Fountain Nozzle Adjustable Spray Nozzles

SS Material And Brass Material Dancing Water Fountain Nozzle Adjustable Spray Nozzles
