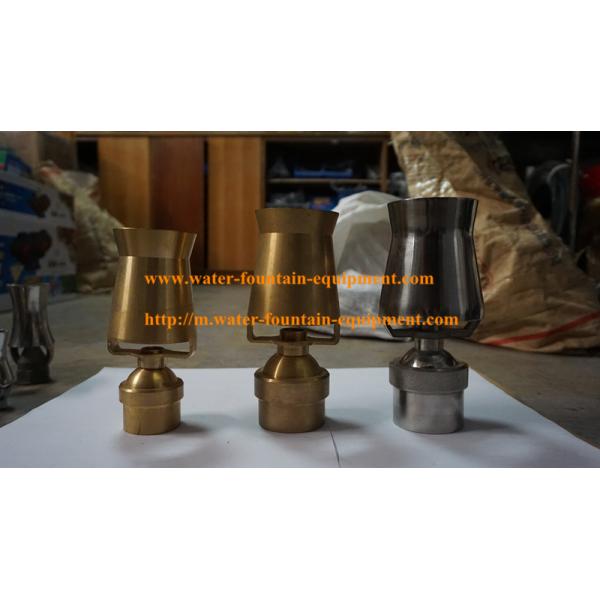

Adjustable Cedar Fountain Nozzle Heads Brass / Stainless Steel
Description:
The Cedar Nozzle is the single most popular effect used in commercial and architectural
fountains through modern times.This nozzle is a kind of porous scattering nozzle. It is also called Ice
Tower nozzle or Cedar nozzle. It sprays can be used in a wide variety of ways to achieve spectacular effects. With beautiful shape and convenient installation, it can be adapted to a wide range of ponds and fountains.
Features:

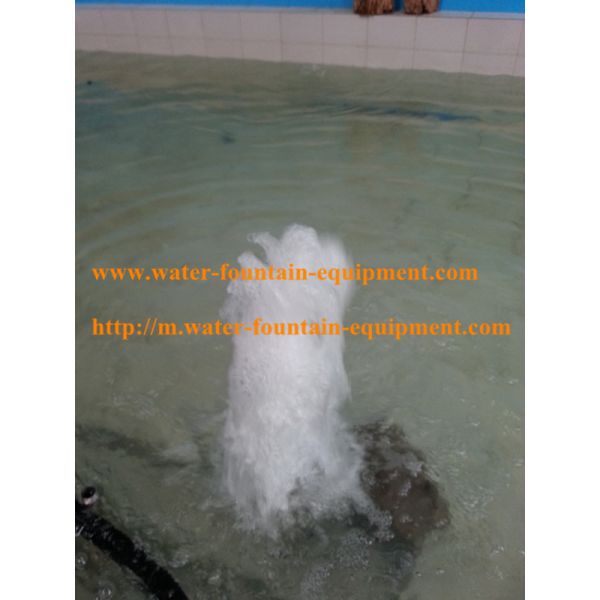

1. The water sprays highly and straightly, like white jade tower, so it is called ice tower or the cedar. With LED lightst, it can show gold tower, blue tower, and red tower.
2. The material mainly has brass or stainless steel and etc.
3. It is one of the most popular fountain jets in the world market. It can form into many different shapes, so widely used in musical fountains and program control fountains.
4. Our fountain jets are very durable, we can ensure you 2 years of guarantee. Within this period, if it has any problem that fall within our quality scope, we will replace a new one for free. Kindly hope you can have a test.
Specifications
Model | Performance | Water Inlet | Water Outlet | Size | Weight | ||||||
pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia. (mm) | (kg) | |
CBtT80 | 80-450 | 55-65 | 1-12 | 1-1.5 | 3" | external thr. | Ф91 * Ф24 * 1 | 283 | 123 | 1.66 | |
CBtT65 | 80-450 | 55-65 | 1-12 | 1-1.5 | 2 1/2" | internal thr. | Ф91 * Ф24 * 1 | 283 | 123 | 1.66 | |
CBtT50 | 80-400 | 35-45 | 1-10 | 0.8-1.0 | 2" | Ф73 * Ф19 * 1 | 200 | 94 | 1.1 | ||
CBtT40 | 50-300 | 20-35 | 1-8 | 0.5-0.6 | 1 1/2" | Ф66 * Ф16 * 1 | 180 | 86 | 0.75 | ||
CBtT25 | 40-200 | 8-12 | 1-5 | 0.2-0.3 | 1" | Ф46 * Ф12 * 1 | 123 | 60 | 0.35 | ||
CBtT20 | 40-100 | 3-5 | 1-3 | 0.2 | 3/4" | external thr. | Ф30 * Ф10 * 1 | 89 | 44 | 0.13 | |
CBtT15 | 40-100 | 2-4 | 1-3 | 0.15 | 1/2" | internal thr. | Ф25 * Ф8 * 1 | 71 | 33 | 0.07 |
