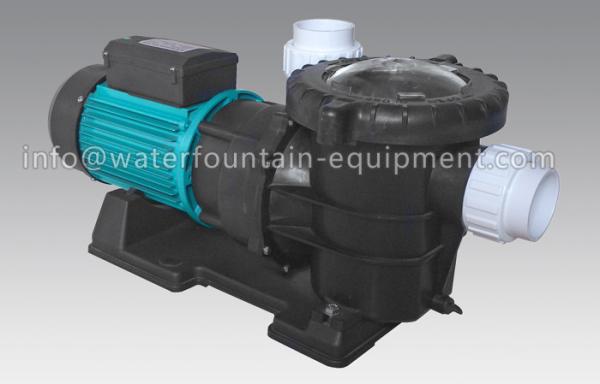

3.0HP Plastic Swimming Pool Pumps Single - Phase For Sea Water Circulation
3.0HP Plastic Swimming Pool Pumps Single - Phase For Sea Water Circulation
3.0HP Plastic Swimming Pool Pumps Single - Phase For Sea Water Circulation
3.0HP Plastic Swimming Pool Pumps Single - Phase For Sea Water Circulation
Specifications
Brand Name :
autumn solar
Model Number :
STP150-STP300
Certification :
ce, GS,UL,SAA
Place of Origin :
Made in China
MOQ :
1 PC
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 PCS/Month
Delivery Time :
7-15 days
Packaging Details :
carton
Model No :
STP300
max.head :
19.5m
Max. Flow :
635 L/min
Material of pump body :
engineering Plastic mixed with Fibreglass
Type :
Self-Priming Pump, centrifugal pump
waterproisolation gradeof grade :
B
waterproof grade :
IPX5
maxiumn working pressure :
0.3MPa
Application :
Swimming pool filtration, pond filtration
quality certificate :
ce,GS,UL, SAA
Description

STP300 3.0HP sea water swimming pool pump / swimming pool circulate pump

FEATURES:

* motor and water are completely seperated,total electrical separation.

* pump housing, pump cover & impeller are made of high reinforce plastic

* 2.2L strainer

* quick record could be used with the inlet & outlet super flow

OPERATION CONDITIONS:

Liquid temperature from +5℃ ~ +60℃

Ambient temperature up to 50℃

Max. working pressure: 3 bar

APPLICAIONS:

Jet pump for jetted bath tubs, spa pools, swimming pools, massage stations, cleaning system.

MOTOR:

1. 2-pole induction motor

2. single-phase: 220V ~ 240V / 50Hz

3. single-phase with thermal protector from T.I

4. capacitor inside terminal box

5. insulation class B. or F.

6. protection IPX5

7. continous duty

TECHNICAL PARAMETER:

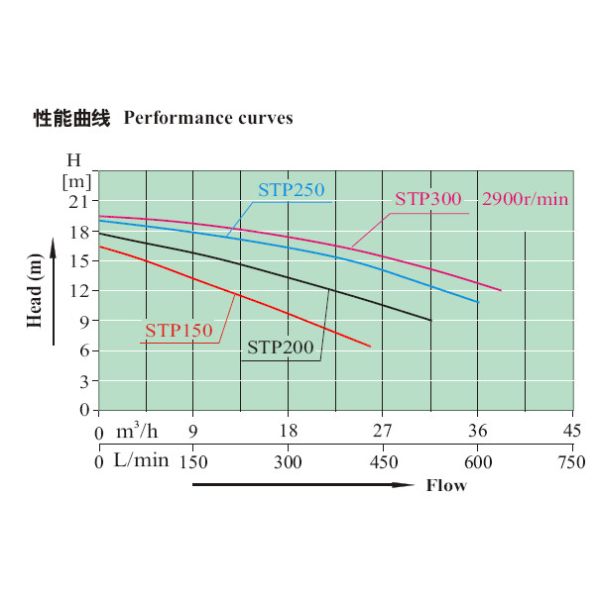

Model Qmax Hmax Voltage Input Power Fitting Size Weight Length Carton dimension
(L/Min) (m) (V/Hz) KW HP (mm) (kg) (mm) (mm)
STP150 430 16.5 220V/50Hz 1.1 1.5 60/63 13.5 573 600X295X345

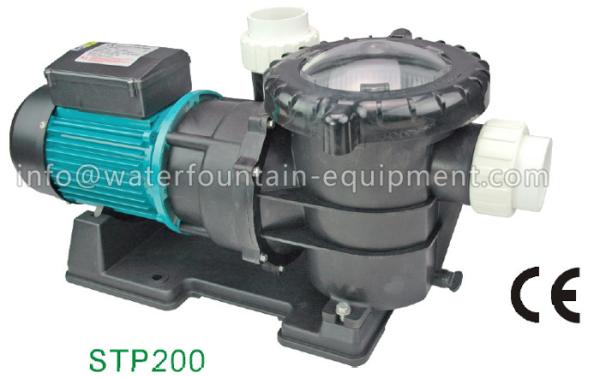

STP200 520 18 220V/50Hz 1.5 2.0 60/63 14 573 600X295X345
STP250 600 19 220V/50Hz 1.85 2.5 60/63 15 573 600X295X345
STP300 635 19.5 220V/50Hz 2.2 3.0 60/63 17 598 625X295X345
230V/60Hz, 110V/60Hz , 110V/50Hz models are available on request

3.0HP Plastic Swimming Pool Pumps Single - Phase For Sea Water Circulation

3.0HP Plastic Swimming Pool Pumps Single - Phase For Sea Water Circulation
