Top Mount Heavy Duty Swimming Pool Filter UV Protected Corrosion Resistant
Top Mount Heavy Duty Swimming Pool Filter UV Protected Corrosion Resistant
Top Mount Heavy Duty Swimming Pool Filter UV Protected Corrosion Resistant
Top Mount Heavy Duty Swimming Pool Filter UV Protected Corrosion Resistant
Top Mount Heavy Duty Swimming Pool Filter UV Protected Corrosion Resistant
Top Mount Heavy Duty Swimming Pool Filter UV Protected Corrosion Resistant
Specifications
Brand Name :
TOTAL POOL
Model Number :
TK400~TK1400
Place of Origin :
Made in China
MOQ :
1 PC sample order acceptable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 PCS / MONTH
Delivery Time :
15-30 DAYS
Packaging Details :
Carton or bubble film wrap+metal pallet
Model: :
TK400~TK1400
Usage: :
swimming pool filtration,water treatment
specificatons: :
dia.400~1400mm (dia.16"~48")
Material: :
fibreglass and resin
product name :
Top Mount Swimming Pool Filter
feature :
UV protected
Description

Bobbin Wound Fibreglass Sand Filter With Top Mount Multiport Valve for Swimming Pool

FEATURES:

  • heavy duty UV protected fibreglass tank
  • Ergonomically designed six position multiport valve
  • high performance filtering action
  • Resistant to chemicals and corrosion
  • sight glass for inspecion of filtered water
  • pressure gauge for inspection of oerating pressure
  • Virtually maintenance free, simply backwash filter when required
  • Sand drain plug for easirer sand removal-replacement

The top mount sand filters are heavy-duty and combine the world's best filtration technology. Sand Filter series are designed as high-rate sand filtration system and manufactured using the highest grade of fiberglass composite material. The filters are manufactured using the state-of-the-art production technique to ensure toughness, durable, easy to install and guarantee to last years after years.

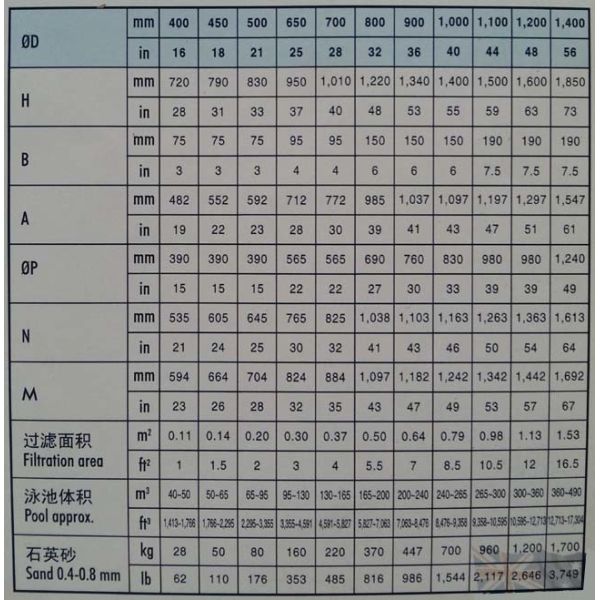

TECHNICAL DATA
Model

Diameter

(mm)

Height

(mm)

Outlet

(mm)

Filer Area

(m²)

Flow rate

(m³/h)

Sand

(kg)
TK400 400 720 40 0.11 6.3 28
TK450 450 790 40 0.14 7.89 50
TK500 500 830 40 0.2 11.52 80
TK650 650 950 40 0.3 16.2 160
TK700 700 1010 40 0.37 20.4 220
TK800 800 1220 50 0.5 25.2 370
TK900 900 1340 50 0.64 30 447
TK1000 1000 1400 50 0.79 33 700
TK1100 1100 1500 50 0.98 37.8 960
TK1200 1200 1600 50 1.13 45.2 1200
TK1400 1400 1850 50 1.53 61.2 1700

* Use only #20 white silica sand, size range 0.4-0.55mm.
* Maximum working pressure: 2.5kg/cm²; working pressure of 4kg/cm² available by special order

* Application: swimming pool filtration system, aquaculture, fish farming and hatchery filtration system, and many other water filtration application.
