Underwater Swing Motor Cast Iron Water Pump Lightweight 50Hz Electricity Drive
Underwater Swing Motor Cast Iron Water Pump Lightweight 50Hz Electricity Drive
Specifications
Brand Name :
autumn solar
Model Number :
QD0.75-6-24
Certification :
ce
Place of Origin :
made in China
MOQ :
one PC sample order acceptable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 pcs / month
Delivery Time :
10-15 days
Packaging Details :
wood case
name :
underwater swing machine
model :
QD0.75-6-24
power :
0.75KW/380V/50HZ
imput speed :
960 r/min
output speed :
24 r/min
material :
cast iron or stainless steel
pump type :
submersible pump
drive mode :
electricity
Description

underwater swing motor swing device for fountain project in cast iron / stainless steel material

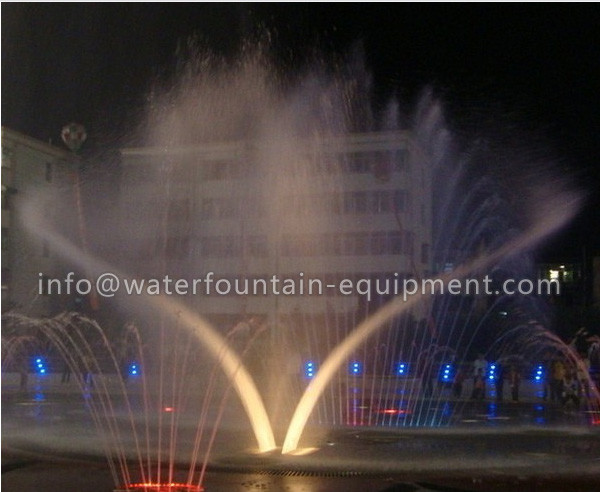

Underwater swing device is consist of oil-filled submersible motor, coupling and turbo reducer. It has advantages of novel structure, elegant appearance, light weight, small dimension, convenient installation, stable working and low noise. It is widely used for fountain projects, providing low speed rotation for musical control, lighting control fountain, also providing ideal power to artistic model and action.

Working environment:

  1. Swing device should immerse under water 0.5-5m below water surface
  2. Frequency 50Hz, voltage 380V, voltage must between 342-420 V

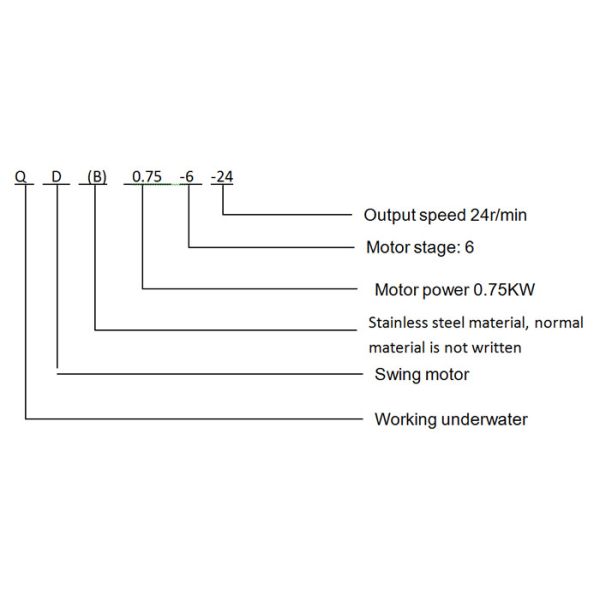

MODEL EXPLANATION:

Underwater Swing Motor Cast Iron Water Pump Lightweight 50Hz Electricity Drive

TECHINCAL PARAMTER:

No model Power (KW) Currency (A) Voltage (V) Imput speed (r/min) Output speed (r/min) Output torque (N.m)
1 QD 0.75-6-24 0.75 2.3 380 960 24 70
2 QD 1.1-6-24 1.1 3.2 103
3 QD 2.2-6-24 2.2 5.6 303
4 QD 3-6-24 3 7.2 352
5 QD 4-6-24 4 9.4 450
6 QD 5.5-6-24 5.5 12.6 680
7 QD 7.5-6-24 7.5 17.0 863

Underwater Swing Motor Cast Iron Water Pump Lightweight 50Hz Electricity Drive
