Specifications
Brand Name :
steamist
Model Number :
LT-150
Certification :
ce
Place of Origin :
Guangdong, China
MOQ :
1 pc
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per month
Delivery Time :
5-7 working days
Packaging Details :
seaworthy carton with foam inside
model :
LT-150
type :
wet steam
shell material :
electrolytic plate with spray
drainage :
automatic
power :
15KW/50 Hz
voltage :
380V / 415V
controller model :
LT-150
water tank :
AISI 304 stainless steel
Description

STEAMIST commcercial portable sauna steam generator 4KW-15KW with controller

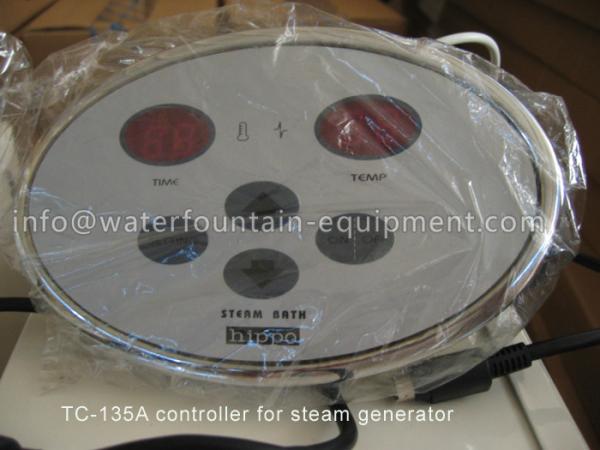

Equipped with TC-135 or TC-135A digital control panel

Model:LT-40,LT-50,LT-60,LT-70,LT-80,LT-90,LT-105,LT-120,LT-150.

The shell is made of electrolytic plate with spray, anti-corrosion and durable. Using TC-135 control panel, the machine will automatically turn off after 45 minutes, the temperature can be automatically controlled within 35-55 ° C (95-131 ° F) range , digital display temperature; Using the TC-135A control panel can automatically control the temperature within 35-55 ° C (95-131 ° F) range, but can also set up automatic shutdown time within 1-60 minutes , digital display temperature and time. The model is suitable for families and small sauna clubs to use, with the European CE certification and China Import and Export Commodity Inspection certificate of inspection.

Upgrade options:

Upgrade to #201 stainless steel shell or Upgrade to #304 stainless steel shell or Add top service hole

specifications:

1. with TC135 controller or TC135A controller (without / with auto drainage function)
2. Power: 15kw
3. Voltage: 220/380V/240V
4. Phase: 1/3
5. Steam room volume: 13-18cbm
6. Control type: control inside/outside

7. Housing dimensions:500x 200 x 380mm, Weight: 20kgs

Functions:

1. Touch buttons, water-proof and steam-proof

2. Digital display for both temperature and time
3. Heating status LED indicating

4. Lack- water and over-heat protection

5. automatic cleaning and dranage (for TC-135A controller)

PARAMTER OF CONTROLLER:

Controller Model Time Range to control (minute) Temperature range to show Temperature range to control Dimension(mm)

TC-135

45 (Fixed)

6-60° C (43-140° F)

35-55 ° C (95-131 ° F)

100x100x25(eight square)

Functions:

1.Automatically turn off after 45 minutes.

2.The temperature is automatically controlled.

3.Automatic protection when shortage of water and pressure of inner tank.

4.Customer required automatic drainage and long term working is acceptable.

TC-135A

1-60

6-60° C (43-140° F)

35-55 ° C (95-131 ° F)

110x170x18(eight square)

Functions:

1.Automatically turn off after 45 minutes.

2.The temperature is automatically controlled and adjustable.

3.Time is adjustable, and also can set time to work for long term.

4.Automatic protection when shortage of water and pressure of inner tank.

5.customer required lighting and automatic drainage is acceptable.

PARAMETER OF STEAM GERNATOR:

Model Power KW Power supply (50/60Hz) Power wire (copper) N*mm2 Dimensions cm Packing size cm G.W kg
Voltage V Current A
LT-40 4.0 220-240V~ 18.2 3*2.5 39.5*15.3*31.3 53.5*21*41 9
LT-50 5.0 220-240V~ 22.7 3*2.5
LT-60 6.0 220-240V~ 27.3 3*4.0
380-415V3N~ 9.1 5*1.5
LT-70 7.0 220-240V~ 31.8 3*6.0 44.5*18.2*31.3 53.5*21*41 11
380-415V3N~ 11.4 5*2.5
LT-80 8.0 220-240V~ 36.4 3*6.0
380-415V3N~ 13.6 5*2.5
LT-90 9.0 380-415V3N~ 13.6 5*2.5
LT-105 10.5 380-415V3N~ 15.9 5*2.5 50*20*52 54*25*61 18
LT-120 12.0 380-415V3N~ 18.2 5*2.5
LT-150 15.0 380-415V3N~ 22.7 5*2.5
Notice :LT series common type steam generator comes with high house cover and couples pieces heating elements, automatic draining function and 9-12KW single phase 220V-240V need to make specially.
