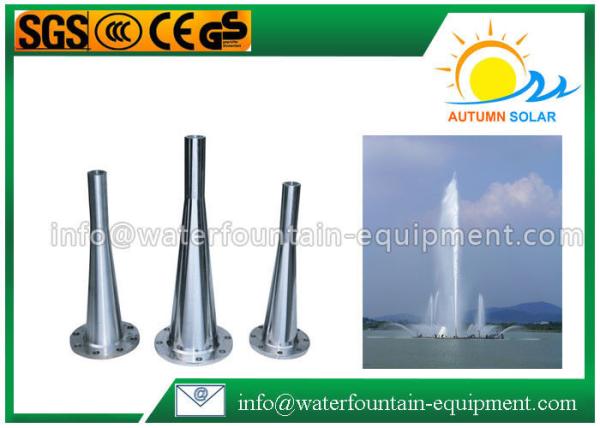

100 meter high pressure comet fountain jet / smooth bore fountain nozzle in stainless steel
Water Effect: Creates a solid stream water effect with integral angular adjustability.
Performance Characteristics: The Adjustable Smooth Bore effect is a clear
stream of water at lower pressures and heights and becomes more striated as
pressure and height increase
TECHNICAL PARAMETER :
name | model | Connection size | Pressure (Kpa) | Flow rate (m3/h) | Discharge Height (M) | Net Weight (kg) | |
100m high pressure comet jet | HPC100-38 | DN100-38 | 4” | 330-1300 | 105-208 | 20-80 | 10 kgs |
HPC100-45 | DN100-45 | 4” | 330-1350 | 144-290 | 20-80 | 10 kgs | |
HPC150-48 | DN150-48 | 6” | 330-1650 | 186-401 | 20-100 | 20 kgs | |
HPC150-58 | DN150-58 | 6” | 330-2000 | 291-673 | 20-120 | 20 kgs |
WATER FEATURE :
