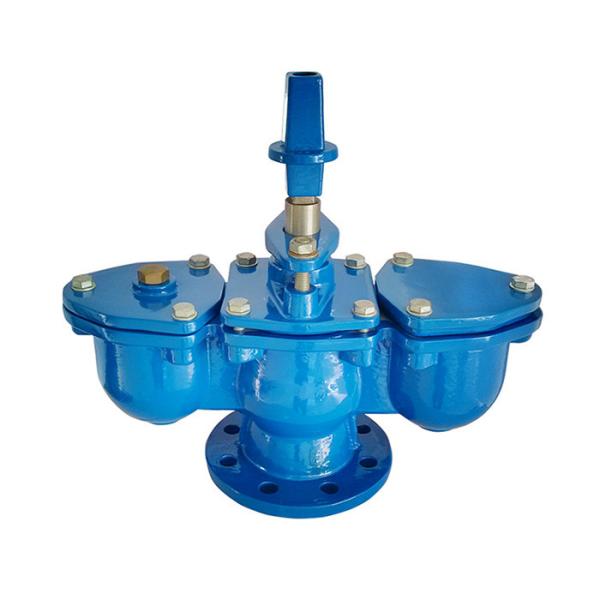

Double Orifice Air Valve Flange End

1. PRODUCT PROFILE

Double orifice air valve is one normal type of exhaust valve in the long big piping transport, which is normally mounted on the top of the pipe or pipe air holding place to discharge the air in the pipe, When the power supply for the pump is off, pump is stopped working, there will be negative pressure inside of pipeline, there will be vibration or break happened. Then, the air valve will work to suck into air quickly, keep the pressure inside the pipeline to be safe, making sure the pipe work normally. Prosper Flow combined air valve can remove the air existed in the pipe more flexible, preventing of the pressure fluctuation or other damages in the piping system. Double orifice air valve is applicable especially to the main water pipes and deep well pumps piping system.

2. FEATURES

· Discharge air more flexible

· Preventing of the water hammer

· Discharge the air slowly

· Safer self-protection

· Long service life

·Body and cover of ductile iron with blue epoxy coating.

·Release valves can be manufactured with flanged or screwed ends.

·Depending on the capacity of the pipeline, single orifice or double orifice air release valve needs to be chosen.

·Double Orifice ARV is installed on the pipe with a flange, releases the air recevied from its flange connnection through the orifices located above the float parts. When the air release is completed, the floats travel upside with the water force and closes the orifice outlet, thus preventing the leakage of water.

3. TECHNICAL SPECIFICATION

· Nominal pressure: PN10 / PN16 bar

· Size: 2”~ 8” (DN50 ~ 200mm)

· Materials: cast iron A126 B (GG25), ductile iron A536 65-45-12 (GGG40/50)

4. STANDARD

· Design & manufacturing: BS EN1074-4:2000

· Face to face: BS EN1074-4

· Flanged ends: EN 1092-2:1997, ASME B16.1/B16.42, AS4087

· Inspection & testing: EN 12266-1:2012

· Working temperature: 0 ℃ ~ + 80 ℃

5. APPLICATION

· Water projects

· Real Estate

· Water treatment industry

· Power plant

· Pump station
