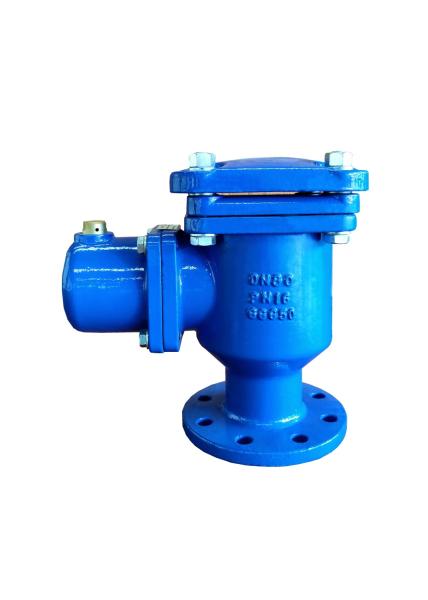

DN80 Low Pressure Air Valve Water Main For Pump Station
DN80 Low Pressure Air Valve Water Main For Pump Station
Specifications
Brand Name :
OEM
Certification :
CE / ACS
Place of Origin :
China
MOQ :
1
Price :
USD 0~100
Payment Terms :
T/T, L/C
Supply Ability :
500 thousands pcs per year
Delivery Time :
30 days
Packaging Details :
in plywooden boxes
Material :
Cast iron,Ductile iron
Working press :
PN10,PN16
Size :
DN50 ~ DN200
Epoxy resin thickness :
≥250μm
Applicable temperature :
0℃~+80℃
Color :
Blue
Connection :
Flange end
Brand :
OEM
Description

Triple Orifice Air Valve Flange End

1. PRODUCT PROFILE

Triple function air release valve is installed at the pump outlet or in the water supply line to remove a large amount of air from the pipe or dischargea small amount of air collected at a higher level of pipeline into the atmosphere,so as to improve the efficiency of the pipeline and the pimp.Once in case of negative pressure inside the pipe, the valve will quicklu absorb the outside air to protect the pipeline from damage caused by negative pressure.

Material Ductile iron/Cast iron Medium Water
Brand OEM
Size
DN50-DN200
Working pressure PN10 / PN16 Connection Flange End
Color Blue Working temperature 0 ℃ ~ + 80 ℃

2. FEATURES

· Discharge air more flexible

· Preventing of the water hammer

· Discharge the air slowly

· Safer self-protection

· Long service life

3. TECHNICAL SPECIFICATION

· Nominal pressure: PN10 / PN16 bar

· Size: 2”~ 8” (DN50 ~ 200mm)

· Materials: cast iron A126 B (GG25), ductile iron A536 65-45-12 (GGG40/50)

4. STANDARD

· Design & manufacturing: BS EN1074-4:2000

· Face to face: BS EN1074-4

· Flanged ends: EN 1092-2:1997, ASME B16.1/B16.42, AS4087

· Inspection & testing: EN 12266-1:2012

· Working temperature: 0 ℃ ~ + 80 ℃

5. APPLICATION

· Water projects

· Real Estate

· Water treatment industry

· Power plant

· Pump station
