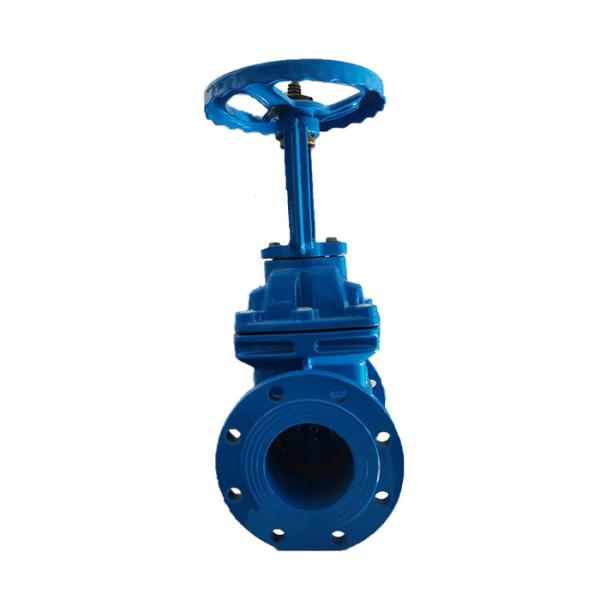

3 Flanged PN16 Gate Valve DN50-DN1000 For Waste Water
3 Flanged PN16 Gate Valve DN50-DN1000 For Waste Water
3 Flanged PN16 Gate Valve DN50-DN1000 For Waste Water
3 Flanged PN16 Gate Valve DN50-DN1000 For Waste Water
3 Flanged PN16 Gate Valve DN50-DN1000 For Waste Water
3 Flanged PN16 Gate Valve DN50-DN1000 For Waste Water
3 Flanged PN16 Gate Valve DN50-DN1000 For Waste Water
3 Flanged PN16 Gate Valve DN50-DN1000 For Waste Water
Specifications
Brand Name :
OEM
Model Number :
BS 5163
Certification :
CE / ACS
Place of Origin :
China
MOQ :
1
Price :
0~100$
Payment Terms :
T/T, L/C
Supply Ability :
500 thousands pcs per year
Delivery Time :
30 days
Packaging Details :
in plywooden boxes
Material :
Ductile iron
Power :
Manual
Pressure :
Low Pressure
Size :
DN50-DN1000
Color :
Blue
Connection :
Flange Ends
Medium :
Water
Valve type :
Gate Valve,Metal Seated
Description

High Quality Metal Seated Gate Valve DN50-DN1000

1. PRODUCT PROFILE

Metal Seated Gate Valve is designed and manufactured for use in water, waste water, and sewage as well as heating & marine applications. Main usage is for isolation purposes. Having two sided brass/ bronze seat surfaces on wedge makes it possible to be used bi-directionally. The fluid cleans the sealing surface area every time the valve is opened.

Material Ductile iron Medium Water
Size DN50 - DN300 Working Pressure PN10 / PN16
Color Blue Brand OEM
Standard DIN-F4 Epoxy resin thickness ≥250μm

2. FEATURES

· Unique lightweight ductile iron design

· WRAS listed fusion bonded epoxy coated

· Stem seals replaceable under pressure

· Full bore design

· Clockwise to close operation as standard, clockwise to open available upon request

· Stainless steel fasteners for increas. ed corrosion protection

· PN25 rated version available upon request

· Alu - bronze wedge nut with lubricating abilities providing optimum compatibility with stem

· Corrosion-resistant construction

· Integral feet to facilitate safe storage

· Robust low maintenance design suitable for buried service

3. STANDARD

· Design & manufacturing: EN1171/1074/DIN3202-F4/ F5/BS5163

· Flanges and Drillings: BS EN 1092-2

· Face to Face Dimensions: BS E N 558

4. TECHNICAL SPECIFICATION

· Working pressure:PN10/PN16

· Temperature range -10°C to 80°C

· Designed according to EN 1074 part 1 & 2

· Standard flange drilling to EN1092-2 (ISO 7005-2), PN 10/16

· Hydraulic test according to EN 1074-1 & 2 / EN 12266

· Seat: 1.1 x PN (in bar), Body: 1.5 x PN (in bar)

· Approved for wastewater / pressure test EN 1074

5. APPLICATION

· Water supply system

· Waste water, sludge, sewage treatment industry

· Irrigation system

· Real estate industry

· Mining, steel industry

· Metallurgy plant, power plant

· Textile, pharmaceutical industry

· Food, pharmaceutical industry
