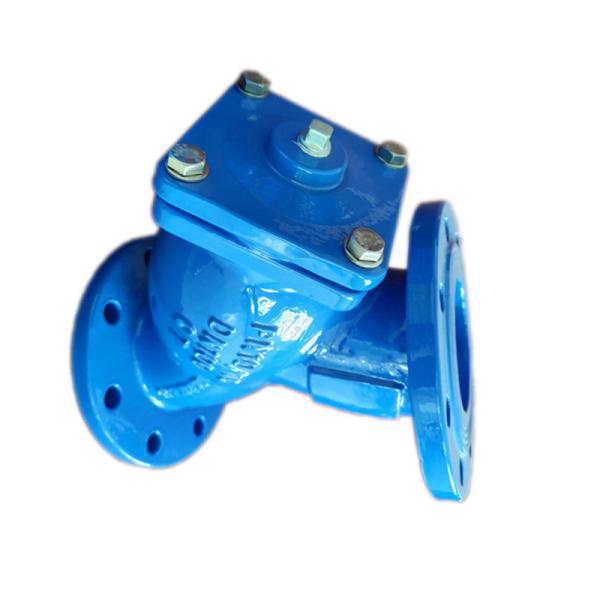

DIN-F1 Water Ductile Iron Y Strainer Filter DN50-DN300 Flange Ends
DIN-F1 Water Ductile Iron Y Strainer Filter DN50-DN300 Flange Ends
DIN-F1 Water Ductile Iron Y Strainer Filter DN50-DN300 Flange Ends
DIN-F1 Water Ductile Iron Y Strainer Filter DN50-DN300 Flange Ends
DIN-F1 Water Ductile Iron Y Strainer Filter DN50-DN300 Flange Ends
DIN-F1 Water Ductile Iron Y Strainer Filter DN50-DN300 Flange Ends
DIN-F1 Water Ductile Iron Y Strainer Filter DN50-DN300 Flange Ends
DIN-F1 Water Ductile Iron Y Strainer Filter DN50-DN300 Flange Ends
DIN-F1 Water Ductile Iron Y Strainer Filter DN50-DN300 Flange Ends
DIN-F1 Water Ductile Iron Y Strainer Filter DN50-DN300 Flange Ends
DIN-F1 Water Ductile Iron Y Strainer Filter DN50-DN300 Flange Ends
DIN-F1 Water Ductile Iron Y Strainer Filter DN50-DN300 Flange Ends
Specifications
Brand Name :
OEM
Model Number :
DIN3202 F1
Certification :
CE / ACS
Place of Origin :
China
MOQ :
1
Price :
USD 0~100
Payment Terms :
T/T, L/C
Supply Ability :
500 thousands pcs per year
Delivery Time :
30 days
Packaging Details :
in plywooden boxes
Material :
Ductile iron
Working press :
PN10,PN16
Size :
DN50-DN300
Epoxy resin thickness :
≥250μm
Applicable temperature :
-10~+80℃
Color :
Blue
Connection :
Flange ends
Standard :
DIN3202-F1
Description

DIN3202 F1 Y Strainer

1. PRODUCT PROFILE

Y Strainer is device for mechanically removing unwanted solids from liquids, gas or steam lines by means of a perforated or wire mesh straining element. It is used in pipelines to protect pumps, meters, control valves, steam traps, regulators and other process equipment. Prosper Flow can manufacture and supply Y Strainer according to standard of DIN3202-F1 with dimensions of 2”~12” (DN50~DN300mm).

Material Ductile iron Medium Water
Size DN50 - DN300 Working Pressure PN10 / PN16
Color Blue Brand OEM
Standard DIN3202 F1 Epoxy resin thickness ≥250μm

2. FEATURES

· Main parts of all kinds of pumps, valves in the pipeline

· Mainly used to filter dirt, rust and other debris

3. TECHNICAL SPECIFICATION

· PN10 / PN16 / 125LB / 150LB / JIS10K / 150PSI / 200PSI

· Size: 2”~12” (DN50~DN300mm)

· Materials: cast iron A126 B (GG25), ductile iron A536 65-45-12 (GGG40/50)

· Working temperature: -10~+80℃

4. STANDARD

· Flange: DIN2501/EN1092-2 PN10/16/25

· Standard: DIN3202 F1, ANSI CLASS 125, BS4504 PN16.
· Face-to-face conform to DIN3352/DIN3202 F1(ISO5752)/EN558-1. ANSI B16.10. BS2080.
· Working pressure: PN10/PN16 or 10Bar/16Bar or class 125lbs-150lbs.
· Body coating: Fusion bonded epoxy coating or bitumen coating at customers' request.

5. APPLICATION

· Water works, water projects

· Environment protection

· Public facilities

· Power plant

· Real estate

· Petroleum, chemical industry

· Steel work, metallurgy

· Food & beverage
