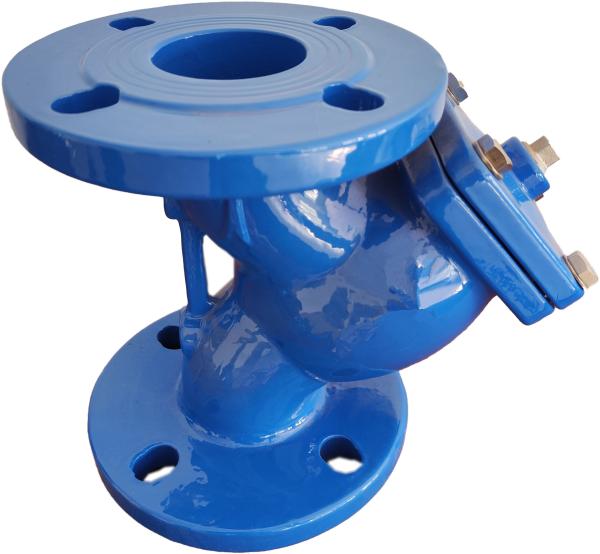

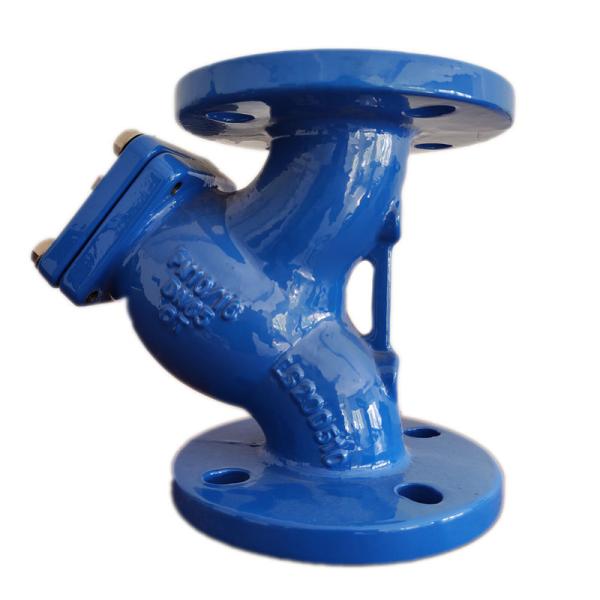

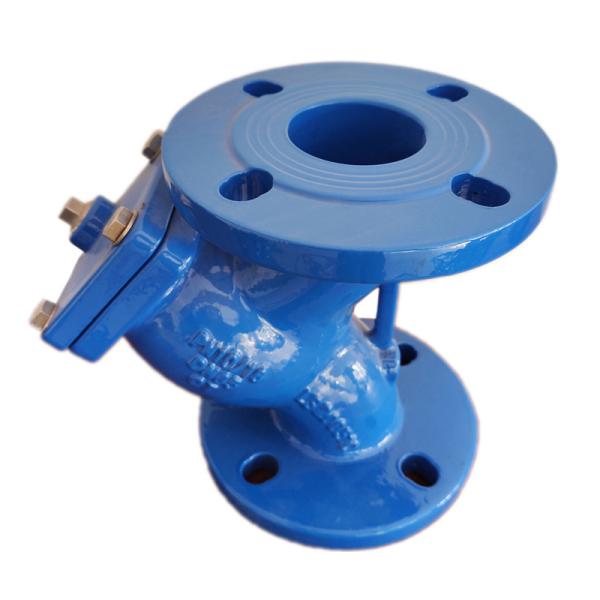

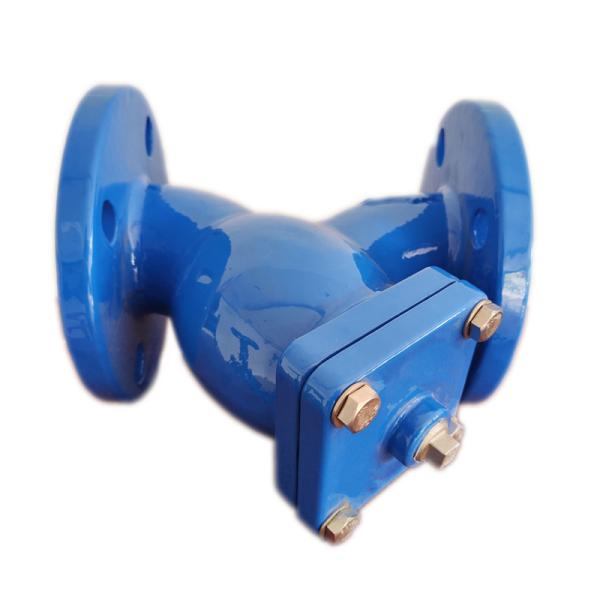

DIN3202 F1 Y Strainer

1. PRODUCT PROFILE

Y Strainer is necessary equipment for pipeline systems, generally installed in the entrance of pressure-relief valve, pressure-release valve, water-positioner valve or other equipments, to protect the valves and equipments by clearing the impurity in medium. This strainer has feather of advanced structure, little resistance, efficient pollution-discharging, can be used in water, oil and gas, and generally mesh amount is 18~30 for water passing, 40~480 for gas passing, customization will be accepted.

2. FEATURES

· Main parts of all kinds of pumps, valves in the pipeline

· Mainly used to filter dirt, rust and other debris

· The Y-type strainer screen adopts stainless steel double-layer net structure, which is firm and durable, and has the characteristics of advanced structure, small flow resistance and convenient sewage discharge.

· The mesh number of the filter screen should be set according to the user's needs.

· A blow down plug on the drain port will allow clean-out without removal of the screen and without interrupting the process flow,provided on request.

· 304 SS perforated screens are standard.

3. TECHNICAL SPECIFICATION

· PN10 / PN16 / 125LB / 150LB / JIS10K / 150PSI / 200PSI

· Size: 2”~12” (DN50~DN300mm)

· Materials: cast iron A126 B (GG25), ductile iron A536 65-45-12 (GGG40/50)

· Working temperature: -10~+80℃

4. STANDARD

· Design & manufacturing: ASME B16.34

· Face to face: GB/12221, ANSI B16.10, EN 558-1

· Flanged ends: GB/T17241.6, ANSI B16.1/5, EN 1092, JIS10K, AS 2129

· Inspection & testing: API598

5. APPLICATION

· Water works, water projects

· Environment protection

· Public facilities

· Power plant

· Real estate

· Petroleum, chemical industry

· Steel work, metallurgy

· Food & beverage
