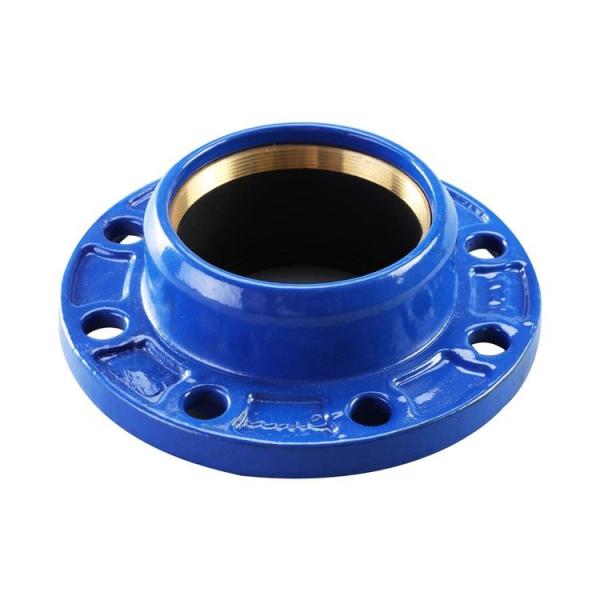

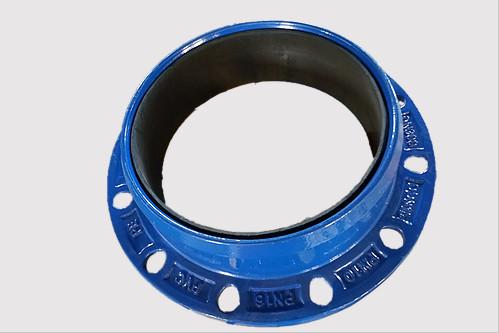

PN16 Blue Ductile Iron Quick Flange Adaptor For PVC Pipe
PN16 Blue Ductile Iron Quick Flange Adaptor For PVC Pipe
PN16 Blue Ductile Iron Quick Flange Adaptor For PVC Pipe
PN16 Blue Ductile Iron Quick Flange Adaptor For PVC Pipe
PN16 Blue Ductile Iron Quick Flange Adaptor For PVC Pipe
PN16 Blue Ductile Iron Quick Flange Adaptor For PVC Pipe
PN16 Blue Ductile Iron Quick Flange Adaptor For PVC Pipe
PN16 Blue Ductile Iron Quick Flange Adaptor For PVC Pipe
Specifications
Brand Name :
OEM
Model Number :
/
Certification :
CE / ACS
Place of Origin :
China
MOQ :
1
Price :
USD 0~100
Payment Terms :
T/T, L/C
Supply Ability :
500 thousands pcs per year
Delivery Time :
30 days
Packaging Details :
in plywooden boxes
Material :
Ductile iron
Pressure :
PN10,PN16
Size :
DN40-DN600
Color :
Blue
Type :
Coupling
Application :
Water
Connection :
Flange end
Epoxy resin thickness :
≥250μm
Description

Ductile Iron Quick Flange Adaptor For PVC Pipe

Quick Flange Adaptor For Pvc

1. PRODUCT PROFILE

Quick adaptor is used in PVC/PE pipe. It has a gasket and a restrained brass rings (alternative) .The quick adaptors only need the gasket, sliding into the end of the connecting pipe socket to realize quick installation and connection.Under certain conditions, it can replace universal flanged adaptor or Straight flanged adaptors, and the cost are lower, but the detachable performance is slightly worse.When you put the pipe in the adaptor body and fasten the bolts, the brass ring will fasten the pipe to avoid it pull out.

Material Ductile iron Medium Water
Size DN50 - DN400 Working Pressure PN10 / PN16
Color Blue Brand OEM

2. FEATURES

· ±25mm longitudinal adjustment simplifies future pipework modifications, reducing down time

· Can be locked at required length with tie rods supplied

· FBE anticorrosive coated make long service life

· Both restrained or un-restrained styles for selection

· The dismantling joint is particularly suitable for simplifying the installation and removal of valves, pipes and fittings of non-return valves, check valve, isolation valve, control valve, flow metering equipment, pump sets, pressure reducing valve, flanged pipe and fitting.

3. TECHNICAL SPECIFICATION

· Working pressure: PN10 / PN16 Bar

· Size: 2″~16″ (DN50~400mm)

· Materials: ductile iron

· Epoxy resin thickness: ≥250micron

· Applicable temperature: 0℃~+80℃

4. STANDARD

· Design & manufacturing: ISO, BS/EN, AWWA /ANSI

· Face to face: ISO2531, BS EN545

· Flange ends:EN1092-2

· Inspection & testing: API598

5. APPLICATION

· Typical applicable industry:

· Sewage treatment works

· Water treatment works

· Power generation equipment

· Gas distribution station

· Industrial cooling systems

· Pumping station
