Specifications
Warranty :
1 Year
After-sale Service :
Online technical support
Project Solution Capability :
graphic design
Application :
Outdoor, Soil Reinforcement/embankment/landfill seperation
Design Style :
Contemporary
Place of Origin :
Shandong, China
Brand Name :
Wantong
Model Number :
PET100/100
Material :
Polyester/polypropylene
Color :
white/black
Width :
5.2m
Length :
100m
Package :
PP Woven Fabric
Tensile Strength :
100kn
Product name :
High Tensile Strength Polyester Woven Geotextile for Road Construction
Keyword :
woven geotextile high strength geotextile pet woven geotextile
Certificate :
CE/ISO
MOQ :
10000 square meters
Price :
$1.10/square meters 10000-29999 square meters
Description

High Tensile Strength Polyester Woven Geotextile for Road Construction

Product Description

PET Woven Geotextile is interwoven by high tenacity PET filament yarn into a dimensionally stable network. The inherent characteristics of Polyester-high tensile strength and modulus,low elongation, low creep and high long-term design strength makes the good ideal for soil reinforcement application. The fabric develops excellent frictional interaction with a wide variety of soil and granular materials.

Feature
• High tensile strength and modulus ,low elongation, low creep and high long-term design strength
• Ease of Construction
• Cost effective
• Creep resistance
• Consistency
• Less differential settlement

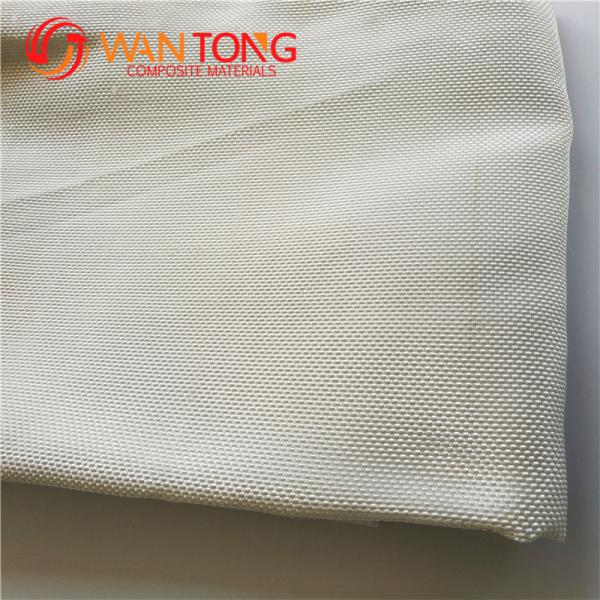

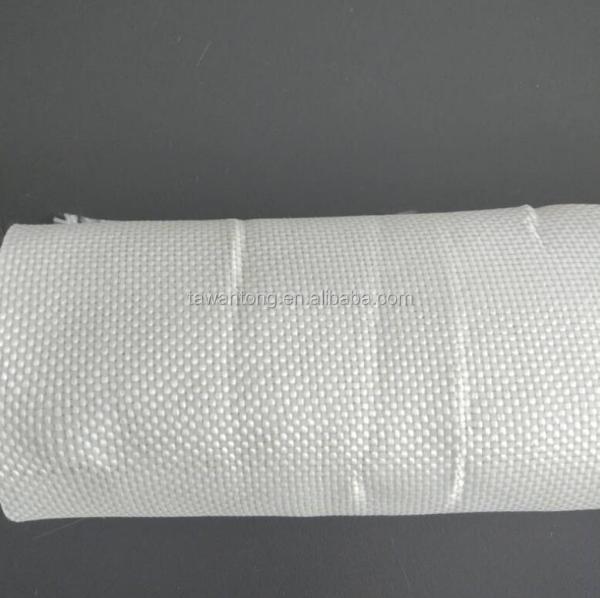

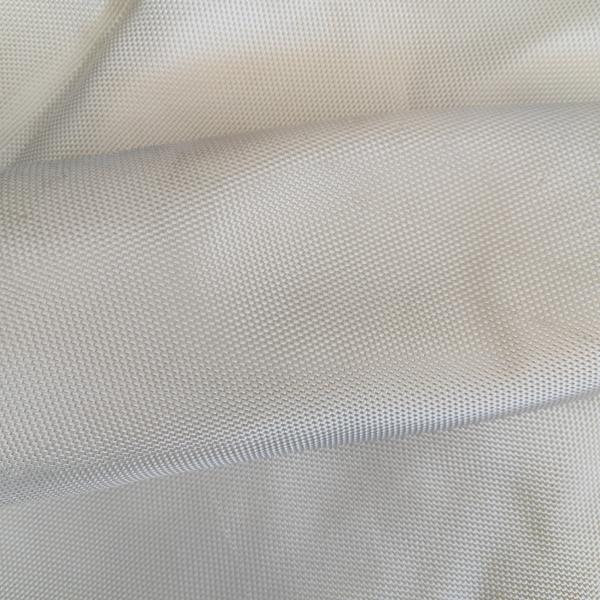

Product Show

100kn Outdoor High Tensile Strength Polyester Woven Geotextile for Road Construction

specification

Property Unit PET100-50 PET300-50 PET500-50 PET600-50 PET1200-50
Ultimate Tensile Strength MD KN/m 100 300 500 600 1200
Ultimate Tensile Strength CD KN/m 50 50 50 50 50
Strain at short term strength % 10 12 12 12 12
Elongation % 30 30 30 30 30
Apparent Opening Size mm 0.15 0.15 0.15 0.15 0.15
UV resistance ( Retained 500 Hours) % 70 70 70 70 70
Width m 5.2 5.2 5.2 5.2 5.2
Height m 100 100 100 100 75
Roll weight Kg 140 320 480 580 810
Packaging& Shipping

100kn Outdoor High Tensile Strength Polyester Woven Geotextile for Road Construction100kn Outdoor High Tensile Strength Polyester Woven Geotextile for Road Construction100kn Outdoor High Tensile Strength Polyester Woven Geotextile for Road Construction

Certifications

100kn Outdoor High Tensile Strength Polyester Woven Geotextile for Road ConstructionWe have passed ISO 9001, SGS and CE Certificate, etc.
