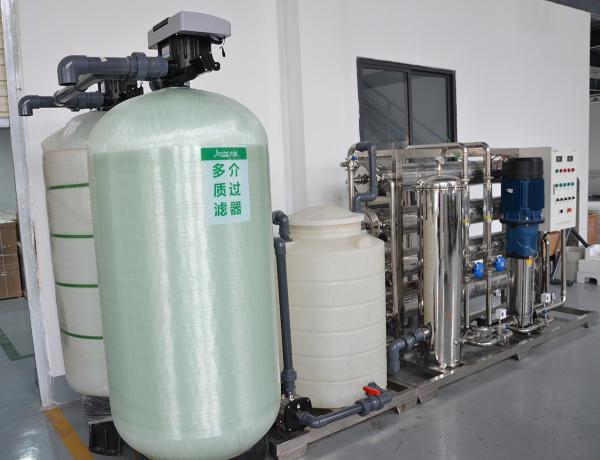

3TPH Industrial Drinking Water RO Plant Reverse Osmosis Water Treatment System
3TPH Industrial Drinking Water RO Plant Reverse Osmosis Water Treatment System
3TPH Industrial Drinking Water RO Plant Reverse Osmosis Water Treatment System
3TPH Industrial Drinking Water RO Plant Reverse Osmosis Water Treatment System
3TPH Industrial Drinking Water RO Plant Reverse Osmosis Water Treatment System
3TPH Industrial Drinking Water RO Plant Reverse Osmosis Water Treatment System
3TPH Industrial Drinking Water RO Plant Reverse Osmosis Water Treatment System
3TPH Industrial Drinking Water RO Plant Reverse Osmosis Water Treatment System
Specifications
Brand Name :
Leader-t/OEM
Model Number :
LD-3T
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Sets /Month
Delivery Time :
5-8 Days
Packaging Details :
Wooden /Box
Product :
3TPH Industrial Factory For Drinking Water Plant Ro System
Productivity :
3000LPH
Core Components: :
Pump, Motor, PLC
Pre-filter :
Quartz sand/active carbon/softener
Work pressure :
0.3-0.7 (psi)
Ro membrane :
Vontron/DOW/Toray
Option :
UV and Ozone
Warranty :
1 Year
Description

3TPH Industrial Factory For Drinking Water Plant Ro System

Specification
Configuration list
Configuration Material SPEC Brand
Tank FRP /SS 844/725/1065etc Domestic/Pentair etc.
Value / Auto/Manual Domestic/Pentair etc
Filter quartz sand 20-80 mesh Domestic
Active Carbon 600-1100Mg/g Domestic
Resin / Domestic PUROLITE,Rohm Hass
Ro membrance Cellulose acetate membrane,element 1812/2521/2540,4040/8040 etc.. VONTRON/DOW,HYDRANAUTIC/Dongli
Controlling System / PLC ,Maunal,Electric control Domestic,Siemens
Pipe/Value Upvc/ss304/ss316 DN15-DN150 Domestic
Pump SS/Iron/Copper CNP,Grundfos
Optional Customize the design according to the customer's URS
Application Drinking, cleaning, beverage, industrial and mining enterprises and so on.

Function of each part of water treatment plant


1. feed water pump pump-- provide the pressure to quartz sand filter/active carbon filter
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
6. High pressure pump-- Provide the high pressure to RO membrane
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

RO reverse osmosis machine application

1. Electronic industry water integrated circuits, silicon wafers, display tubes and other electronic components flushing water
2. Pharmaceutical industry water infusion, injection, tablet, biochemical products, equipment cleaning and so on
3. Chemical industry process water, chemical circulating water, chemical products manufacturing
4. Power industry boiler supply water thermal power boiler, plant and mine low pressure boiler power system, etc
5. Food industry water drinking pure water, beverage, beer, liquor, health products, etc
6.Ultrasonic cleaning water computer accessories, special materials, precision machinery and other requirements of high cleanliness of ultrasonic cleaning line
7. Electroplating industry water cleaning workpiece water, bath water
8. Other process water for automobile, home appliance coating, coated glass, cosmetics, fine chemicals, etc

Flow chart

3TPH Industrial Drinking Water RO Plant Reverse Osmosis Water Treatment System

Pictures

3TPH Industrial Drinking Water RO Plant Reverse Osmosis Water Treatment System

3TPH Industrial Drinking Water RO Plant Reverse Osmosis Water Treatment System

3TPH Industrial Drinking Water RO Plant Reverse Osmosis Water Treatment System
