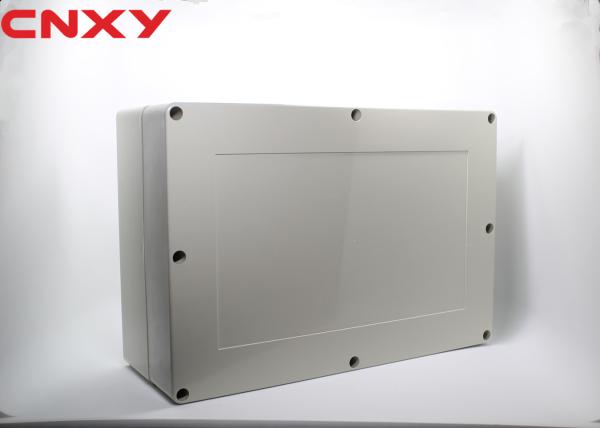

Electronic Project Plastic Junction Box 0.16 Inch Flame Resistance Long Life Span
Electronic Project Plastic Junction Box 0.16 Inch Flame Resistance Long Life Span
Specifications
Brand Name :
CNXY
Model Number :
M1-382614G
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
1000pcs per week
Delivery Time :
samples 2-3 working days, large quantity 7-20 working days
Packaging Details :
common carton
Material :
ABS, other material customizable
IP grate :
IP65
Color :
grey
Size :
380*260*140mm
OEM :
Hole drilling, color, logo printing and so on
Weight :
1.4kg
Description

Electronic Project Plastic Junction Box 0.16 Inch Flame Resistance Long Life Span

This junction box is mainly used for indoor and outdoor electrical, communications, fire fighting equipment, iron and steel smelting, petrochemical, electronics, electricity, railways, construction sites, mines, mining, airports, hotels, ships, large factories, coastal factories unloading dock equipment, sewage and waste treatment facilities, environmental hazards facilities, etc.
Specifications:
Product Name: Junction Box
Outer Size: 380*260*140/ (L*W*H)
Main Color: Light Gray
Main Material: ABS,PC
Screw Thread Dia.: 4mm(0.16inch)
Rating: IP65
Net Weight: 1400g

Size available

ModelDimension(mm)Quantity/ctn
M1-060503G64*58*35560
M1-060503T
M1-080503G83*58*33480
M1-080503T
M1-080805G83*81*56216
M1-080805T
M1-100605G100*68*50280
M1-100605T
M1-110905G115*90*55162
M1-110905T
M1-121209G120*120*9099
M1-121209T
M1-150904G158*90*40165
M1-150906G158*90*60102
M1-150906T
M1-160405G160*45*55
M1-161109G160*110*9042
M1-161109T
M1-161609G160*160*9033
M1-161609T
M1-201205G200*120*5658
M1-201205T
M1-201207G200*120*7580
M1-201207T
M1-201211G200*120*11345
M1-201211T
M1-231507G230*150*8736
M1-231507T
M1-241609G240*160*9023
M1-241609T
M1-241612G240*160*12028
M1-241612T
M1-261806G263*182*6046
M1-261806T
M1-261809G263*182*9521
M1-261809T
M1-261812G263*182*12522
M1-261812T
M1-281913G280*195*13518
M1-302814G300*280*1408
M1-322411G320*240*11014
M1-322411T
M1-322414G320*240*14012
M1-322414T
M1-322415G320*240*15510
M1-382610G380*260*10512
M1-382612G380*260*12012
M1-382614G380*260*14010

Details:

Electronic Project Plastic Junction Box 0.16 Inch Flame Resistance Long Life SpanElectronic Project Plastic Junction Box 0.16 Inch Flame Resistance Long Life Span
A white gasket is put inside the box. It needs inserting by clients. And we provide hand-inserting service, also machine sealing. Latter is recommend.
In the bottom of the box, there is brass stud for mounting terminals, pcb, and other components.

Tips to ensure the effect of the IP65 waterproof:

1)Please check and make sure rubber grommet being completely filled around the lid.(The rubber grommet has elasticity. If the rubber grommet is shorter, you can stretch it to the proper length when you are installing it on the corner parts)
2)If there is any issues,please contact our customer service,our customer service representatives are 24/7 to help!

OEM service:

Material: ABS, PC, UL,flame resistent
Color: Grey, orange, green, black, and so on. Transparent lid type available.
Hole drilling: round, rectangle, square,
Mounting plate, inner door for some some series.
Electronic components fixing such as cable glands, pcb, terminal.

Advantage

1.The product weighs approximately 1/4 the weight of an iron box and can be easily installed or
moved,The product is free from corrosion,carries superior insulation.
2.The Product has passed waterproof and dustproof carried out under rigid quality standards. (IP 65)
3.The use is also convenient for the installation of Terminal Substitution Rail, Button Box, Small
Terminal, Signal , Relay and Sensor ,Communication and joint Box etc.
4.High quality waterproof box series, new imported materials, no recycled material. Good
strength. Can do transparent and opaque or PC material , with corresponding backplate for
choice.

FAQ

Q:Are you a factory or trading company?

A: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q: How long is your delivery time?

A: Generally it is 2 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q: Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings,we can build the molds and fixtures.
Q: Could I put my own logo on it?

A: Sure,of course.we have many years OEM experience.customers' logo can be made by laser,engraved,embossed,transfer printing etc.
