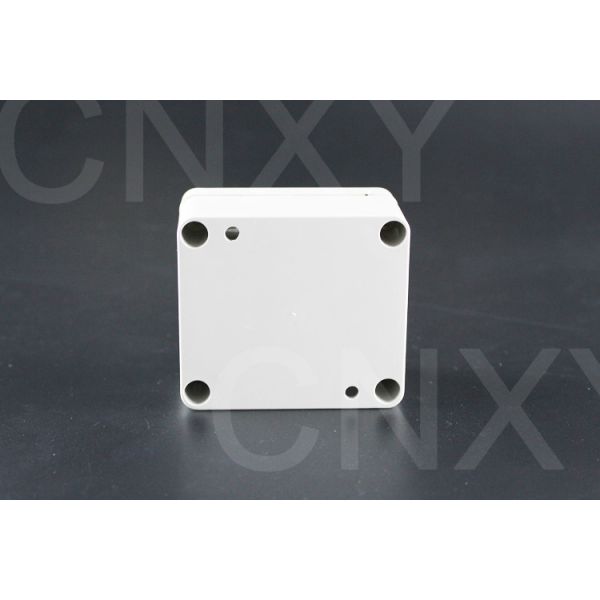

Screw locking IP65 grey lid plastic junction box 64*58*35mm electrical junction box
Screw locking IP65 grey lid plastic junction box 64*58*35mm electrical junction box
Specifications
Brand Name :
CNXY
Model Number :
M1-060503G
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
1000pcs per week
Delivery Time :
samples 2-3 working days, large quantity 7-20 working days
Packaging Details :
common carton
Material :
abs/ pc
IP grate :
IP65
Color :
grey
Model :
M1-060503G
Size :
64*58*35mm
OEM :
Yes
Description

Screw locking IP65 grey lid plastic junction box 64*58*35mm electrical junction box

1. Material: ABS, custom: PC, ul, flame resistent

2. Size:64*58*35mm

3. Certificate:CE ROHS

4. 1 year warranty.

5.More than 10 years manufacturer.

6. Color : grey

Sizes available.

Model Dimension(mm) Quantity/ctn
M1-060503G 64*58*35 560
M1-060503T
M1-080503G 83*58*33 480
M1-080503T
M1-080805G 83*81*56 216
M1-080805T
M1-100605G 100*68*50 280
M1-100605T
M1-110905G 115*90*55 162
M1-110905T
M1-121209G 120*120*90 99
M1-121209T
M1-150904G 158*90*40 165
M1-150906G 158*90*60 102
M1-150906T
M1-160405G 160*45*55
M1-161109G 160*110*90 42
M1-161109T
M1-161609G 160*160*90 33
M1-161609T
M1-201205G 200*120*56 58
M1-201205T
M1-201207G 200*120*75 80
M1-201207T
M1-201211G 200*120*113 45
M1-201211T
M1-231507G 230*150*87 36
M1-231507T
M1-241609G 240*160*90 23
M1-241609T
M1-241612G 240*160*120 28
M1-241612T
M1-261806G 263*182*60 46
M1-261806T
M1-261809G 263*182*95 21
M1-261809T
M1-261812G 263*182*125 22
M1-261812T
M1-281913G 280*195*135 18
M1-302814G 300*280*140 8
M1-322411G 320*240*110 14
M1-322411T
M1-322414G 320*240*140 12
M1-322414T
M1-322415G 320*240*155 10
M1-382610G 380*260*105 12
M1-382612G 380*260*120 12
M1-382614G 380*260*140 10

Details:

Screw locking IP65 grey lid plastic junction box 64*58*35mm electrical junction box

Screw locking IP65 grey lid plastic junction box 64*58*35mm electrical junction box

Screw locking IP65 grey lid plastic junction box 64*58*35mm electrical junction box

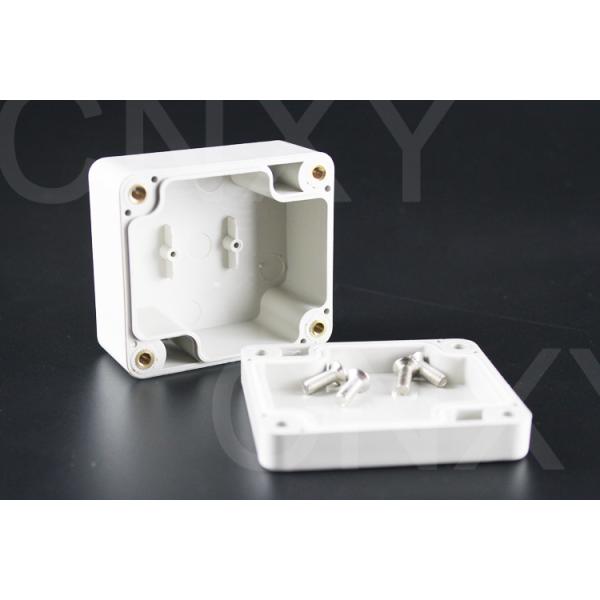

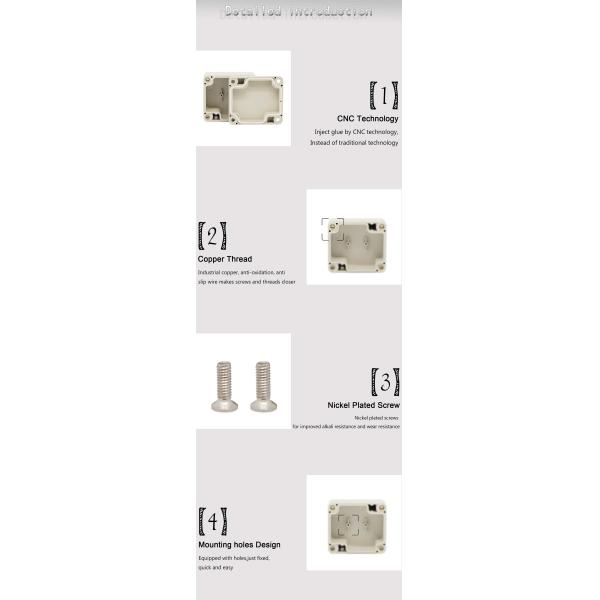

Accessories: formed sealing rope, steel screws. ( Stainless steel screws are available)

Sealing ways: 1 ordinary hand-insert the formed sealing rope

2 CNC machine sealing, convenient and not affected by the weather.

With mounting holes, convinent to install the electrical components.

Advantages:

1). Gland connected for wire through.

2). Any shape hole could be drilled by laser cutter.

3). Silk screen could be done.Show your company logo and name.

4). Mounting plate for installing other electronic enclosure.

5). New mould for your customized design is acceptable.

Application:

It is convenient for the general &mechanical usages such as terminal box, measuring equipment box, gauge box, power distribution, control box, etc.

Feature: Waterproof, dust-proof, high-strength insulation. Any opening is available according to the customers’ demands, it is very complete in specification and convenient in installation.
