Dustproof Outdoor Electrical Junction Box Flame Resistent CE / ROHS Approved
Dustproof Outdoor Electrical Junction Box Flame Resistent CE / ROHS Approved
Specifications
Brand Name :
CNXY
Model Number :
M2-080503T
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
1000pcs per week
Delivery Time :
samples 2-3 working days, large quantity 7-20 working days
Packaging Details :
common carton
Material :
abs/ pc
IP grate :
IP65
Color :
grey
Model :
M2-080503T
Size :
83*58*33mm
OEM :
Yes
Description

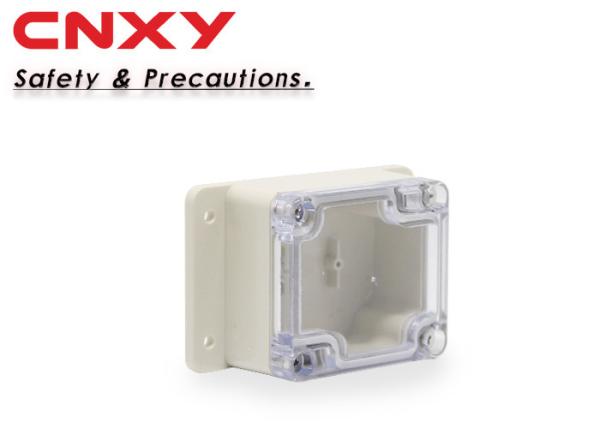

Dustproof Outdoor Electrical Junction Box Flame Resistent CE / ROHS Approved

1. Material: ABS, custom: PC, ul, flame resistent

2. Size:83*58*33mm

3. Certificate:CE ROHS

4. 1 year warranty.

5.More than 10 years manufacturer.

6. Clour : transparent AS lid

7. This product is used for indoor and outdoor electrical ,electronic, communication, fire equipment ,control panel .terminal BOX,PCB BOX, shipping, oil chemical, large factories, coastal factories, discharging terminal equipment, dirty wastewater treatment facilities, environmental hazards facilities and so on.

8. Products adopt high quality thermoplastic plastics ABS ,PC ,nylon, also can according to the customer asked to select material, non-corrosive good insulation.

9. Can punching and printing as your requirements.

Sizes available.

Model Dimension(mm) Carton size
(cm)		 Quantity
(pcs/ctn)
M2-060503G 64*58*35 68*52*25 448
M2-060503T
M2-080503G 83*58*33 68*52*25 380
M2-080503T
M2-100604G 100*68*40 70*53*30 304
M2-100604T
M2-100605G 100*68*50 70*53*30 240
M2-100605T
M2-110803G 115*85*35 70*53*30 210
M2-110803T
M2-110905G 115*90*55 70*53*30 144
M2-110905T
M2-110906G 115*90*68 68*52*25 84
M2-110906T
M2-121005G 125*100*52 70*53*30 138
M2-120806G 120*81*65 68*52*25 102
M2-120806T
M2-150904G 158*90*46 70*53*30 117
M2-150904T
M2-150906G 158*90*64 70*53*30 90
M2-150906T
M2-161609G 160*160*90 70*53*30 36
M2-161609T
M2-201207G 200*120*75 68*52*25 42
M2-201207T
M2-231508G 230*150*87 70*53*30 28
M2-231508T

Details:

Dustproof Outdoor Electrical Junction Box Flame Resistent CE / ROHS Approved

With mounting flanges, easier to install indoor and outdoor.

Accessories: formed sealing rope, steel screws. ( Stainless steel screws are available)

Dustproof Outdoor Electrical Junction Box Flame Resistent CE / ROHS Approved

Sealing ways: 1 ordinary hand-insert the formed sealing rope

2 CNC machine sealing, convenient and not affected by the weather.

Dustproof Outdoor Electrical Junction Box Flame Resistent CE / ROHS Approved

With mounting holes, convinent to install the electrical components.

OEM service available

Dustproof Outdoor Electrical Junction Box Flame Resistent CE / ROHS Approved

Application:

It is convenient for the general &mechanical usages such as terminal box, measuring equipment box, gauge box, power distribution, control box, etc.

Feature: Waterproof, dust-proof, high-strength insulation. Any opening is available according to the customers’ demands, it is very complete in specification and convenient in installation.
