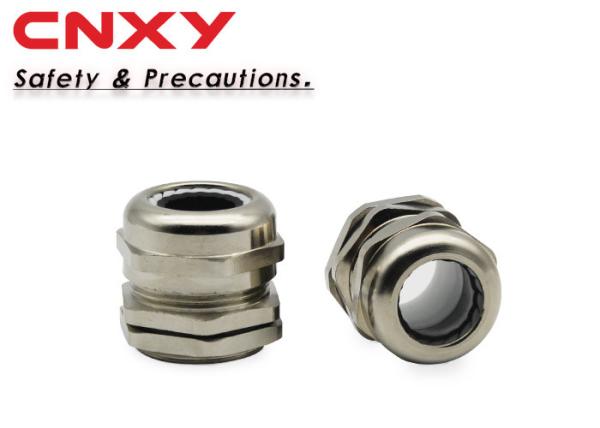

IP68 Brass Waterproof Cable Gland 3 To 6.5 Mm Thread Range CE Standard
IP68 Brass Waterproof Cable Gland 3 To 6.5 Mm Thread Range CE Standard
Specifications
Brand Name :
CNXY
Model Number :
BPG7
Certification :
CE. RoHS
Place of Origin :
China
MOQ :
10 pcs
Supply Ability :
10000pcs per week
Delivery Time :
3-8 working days after the payment
Packaging Details :
common carton
Material :
Brass
Protection level :
IP68
Color :
Grey, black, or other color
Working temperature :
-20℃~120℃
Thread range :
3-6.5mm
Hole size :
12mm
Description

IP68 Brass Waterproof Cable Gland 3 To 6.5 Mm Thread Range CE Standard

Type: PG, M, NPT, G
Material: Brass with nickel plated
Clamp jaw: Nylon PA(UL File NO: E240925). UL94-V2
Sealing element: NBR
Thread type: Metric according to EN 60423
Test standard: EN50262/ EN62444
Advantage: Waterproof, Dustproof, Oil-Proof, Fixed
Protection degree: IP68/IP69K(the wire/cable is in clamping range, and assemble O-Ring on the groove.)
Operating temperature: -40ºC to +100ºC
Application: Suitable for all sealing, fixed, non-slip, the occasion of high temperature requirements.

Size available

Cable gland
Model wiring scope
mm		 panel mounting hole
mm
PG7 3-6.5 12.7
PG9 4-8 16
PG11 5-10 18.6
PG13.5 6-12 20.5
PG16 10-14 22.5
PG19 12-15 24
PG21 13-18 28.3
PG25 16-21 30.2
PG29 18-25 37.2
PG36 22-32 47.2
PG42 32-38 54.2
PG48 37-44 59.2
PG63 42-50 70.2
M12×1.5 3-6.5 12
M16×1.5 4-8 16
M18×1.5 5-10 18
M20×1.5 6-12 20
M22×1.5 10-14 22
M24×1.5 12-15 24
M25×1.5 13-18 25
M27×1.5 13-18 27
M30×1.5 16-21 30
M32×1.5 18-25 32
M36×1.5 18-26 36
M40×1.5 22-32 40
M50×1.5 32-38 50
M63×1.5 37-44 63

Details

IP68 Brass Waterproof Cable Gland 3 To 6.5 Mm Thread Range CE StandardIP68 Brass Waterproof Cable Gland 3 To 6.5 Mm Thread Range CE Standard

IP68 Brass Waterproof Cable Gland 3 To 6.5 Mm Thread Range CE Standard

Advantage

• Professional manufacturer in China for locks,handles and hinges with competitive price and high quality.
• Free samples will be provided within 3 days.
• OEM service:Customer logo,packing can be made as required.
•Excellent after-sales service.

FAQ

Q1: Are you trading company or manufacturer ?
A:We are manufacturer directly.

Q2:Where is your factory?
A:We located in Yuyao Ningbo city, near Shanghai and Ningbo port.

Q3:How long will I receive your quotation?
A:We will send you quotation within 12~24 hours after get your detailed requests.

Q4: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or will be 15-20 days if the goods are not in stock, it also depends on your order quantity.

Q5: Do you provide samples ? is it free or extra ?
A: Yes, we can provide free samples but not include freight charge.

Q6: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
