28AWG 3 Pin 3 Core Male Female Plug IP67 LED Connector
28AWG 3 Pin 3 Core Male Female Plug IP67 LED Connector
28AWG 3 Pin 3 Core Male Female Plug IP67 LED Connector
28AWG 3 Pin 3 Core Male Female Plug IP67 LED Connector
28AWG 3 Pin 3 Core Male Female Plug IP67 LED Connector
28AWG 3 Pin 3 Core Male Female Plug IP67 LED Connector
Specifications
Brand Name :
Realeader
Model Number :
DR-C02
Certification :
UL/CE/CQC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T,, MoneyGram,Paypal,, L/C
Supply Ability :
100000pcs/month
Packaging Details :
cartons
Product Name :
Waterproof Led Connectors
Contact Cores :
2pin/3pin/4pin/5pin
IP Level :
IP67
Gender :
Male + Female
Color :
Black
Application :
Led Module
Wire Specifications :
28AWG-20AWG
Rated Voltage :
250V AC
Description

28AWG 3 Pin 3 Core Male Female Plug IP67 LED Connector

Quick Detail Of Waterproof Led Connectors

1) Advanced structure: Direct plug-in

2) Mutiple pin: 2pin/3pin/4pin/5pin

3) Electric Bike Connector type : Male / Female / Male + Female5

4) Colours:Black

5) Cable length:Different cable length could be customized

Feature Of Waterproof Led Connectors

1. Quick lock docking assembly, simple to use and convenient installation.

2. Integrating current and signal transmission in one of the multifunctional integrated circular connector.

3. The material of products in nylon fiber grealy improves product durability and safety.

4. The pins with gold-plated ensure the conducting performance's stability and security.

5. The male plug can match the product DR-T06 of our company.

6. Mainly used in street lamp module cables and other cables.

Specification Of Waterproof Led Connectors

Product Name Waterproof Led Connectors Certification UL,CQC,CE
Current Rating 8A Gender Male + Female
Voltage Rating 250V AC Pin Number 2pin/3pin/4pin/5pin
Male Size Φ13.5*44mm Cable Size 28AWG-20AWG
Female Size Φ14.3*42.8mm Connecting Mode Direct plug-in
External Mold Material PVC / TPU IP Level IP67
Plug/unplug durability 1500 times Length 0.5M/1M/2M/5M/10M/20M/Customized

Technical date

Pins number Rated Current Rated Voltage Contact Resistance Insulation Resistance IP Level Cable Specifications Cable Range
2 8A 250VAC 10mΩ 200MΩ IP67 <1.5mm2 0-8mm
3 5A 250VAC 10mΩ 200MΩ IP67 <1.0mm2 0-8mm
4 5A 250VAC 10mΩ 200MΩ IP67 <1.0mm2 0-8mm
5 3A 60VAC 10mΩ 200MΩ IP67 <0.75mm2 0-8mm


Application Of Waterproof Led Connectors

1. LED Street Light

2. LED Lighting System

3. LED Module

What kind of waterproof Connector can we provide

M6 Waterproof Connector

M8 Waterproof Connector

M10 Waterproof Connector

M12 Waterproof Connector

M15 Waterproof Connector

M16 Waterproof Connector

Our Advantages

1. Customized Waterproof Connectors : For all connectors we provide OEM & ODM service.

2. Fast Delivery : 1-3 working day for sample ; 5-7 working days for bulk order.

3. Factory direct support : Realeader foucs on Waterproof Connectors for over 13years.

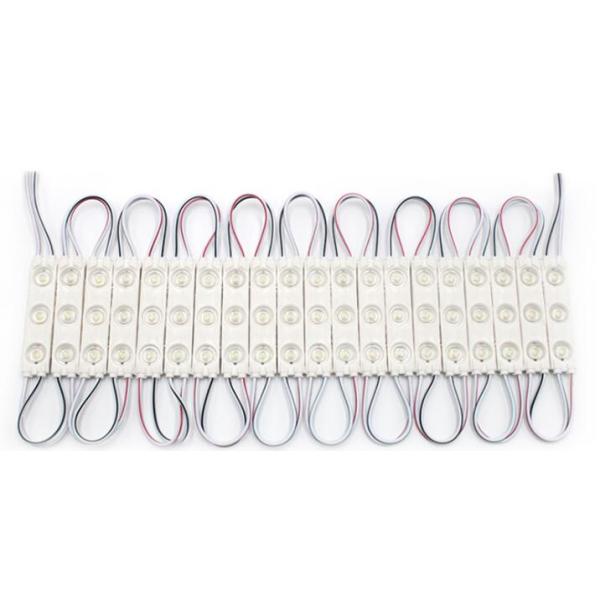

Application of Waterproof Led Connectors

28AWG 3 Pin 3 Core Male Female Plug IP67 LED Connector

28AWG 3 Pin 3 Core Male Female Plug IP67 LED Connector

28AWG 3 Pin 3 Core Male Female Plug IP67 LED Connector

C02 Specification.pdf
