Waterproof Male Female Wire Connectors 5 Pin Outdoor Plug Connectors
Waterproof Male Female Wire Connectors 5 Pin Outdoor Plug Connectors
Waterproof Male Female Wire Connectors 5 Pin Outdoor Plug Connectors
Waterproof Male Female Wire Connectors 5 Pin Outdoor Plug Connectors
Waterproof Male Female Wire Connectors 5 Pin Outdoor Plug Connectors
Waterproof Male Female Wire Connectors 5 Pin Outdoor Plug Connectors
Specifications
Brand Name :
Realeader
Model Number :
DR-A02
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
10 pieces
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram , Paypal
Supply Ability :
1000000 pieces per month
Delivery Time :
7-15 working days
Packaging Details :
By Carton, 25*20*16CM; 45*30*25CM
Product :
Waterproof Electrical Wire Plug Connector
Pins :
5 pins
Material :
PVC/TPU
Rated Current :
2A
Rated voltage :
60V
Protection Level :
IP66
Color :
Black & Green
Sample :
Free Sample
Description

Waterproof Male Female Wire Connectors 5 Pin Outdoor Plug Connectors

1. Basic information

  • Direct plug-in assembly, simple in using, convenient in installation;
  • Specially designed for low-voltage, weak-current products;
  • With compact structure, small and exquisite shape, the plug is more suitable for product needs;
  • Our company developed the plug for electric bicycle signal lines in 2011.


2. Other Details

  • Operating Temperature : PVC: 0℃~+80℃ | TPU : -40℃~+105℃
  • Plug/Unplug durability : 1500times
  • Connection Mode : Direct Plug-in

3. Parameters

Pins number 2Pin/3Pin/4Pin/5Pin/6Pin
Rated current 1.5A ~ 2.0A
Rated voltage 40V AC ~ 60V AC
Contact resistance 10mΩ
Insulation resistance 100MΩ
IP-Code IP65
Cable Specifications 0.2~0.3mm2
Cable Range 0-4mm
Operating temperature PVC:0℃ ～ +80℃; TPU: -40℃ ～ +105℃

4. Questions & Answers

Q1: Can I have a sample for test?

Yes, sample order is welcomed, the lead time will be 3-5 working days acoording to your request.

Q2: How about the lead time?

Sample order need 3-5 working days, mess order need 15-20 working days.

Q3: Do you have certificates about the waterproof connectors?

Yes, we have got UL, CE for all waterproof connectors.

Q4: What payment can you accept?

We are appreciate that you can pay via T/T, and of course you can pay by L/C, Western Union, Paypal.

Q5: Is that OK to print our Logo on your product and package?

Yes, it is OK. Before our production please inform us formally, and confirm the design firstly based on the sample that we send to you.

Q6: Are your company a factory? Where is your factory?

Yes, our company is a factory, we located in Shenzhen.

Q7: Do you accept OEM & ODM service?

Yes, we accept OEM service. We will produce according to your requirment. ODM are also welcomed. Our engineers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.

Q8: How much does it cost to my country?

The freight will be given by fright company based on your Gross weight and CBM.

5. Product Details

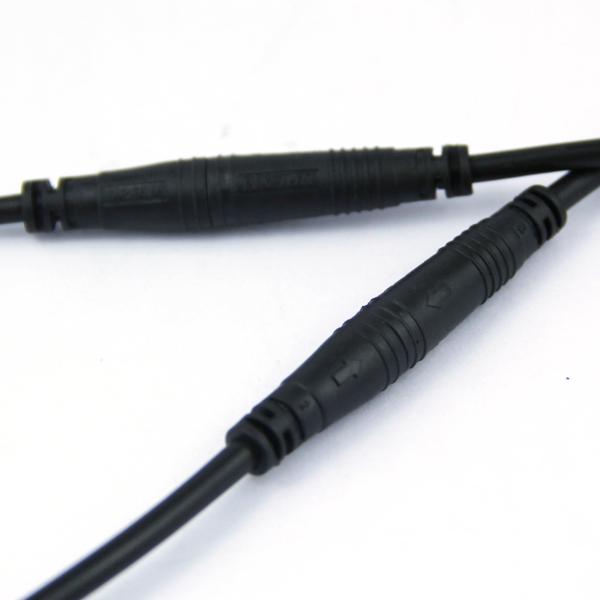

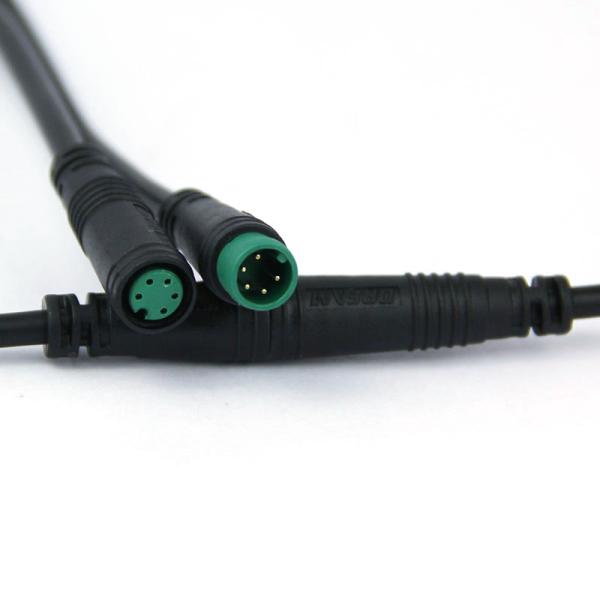

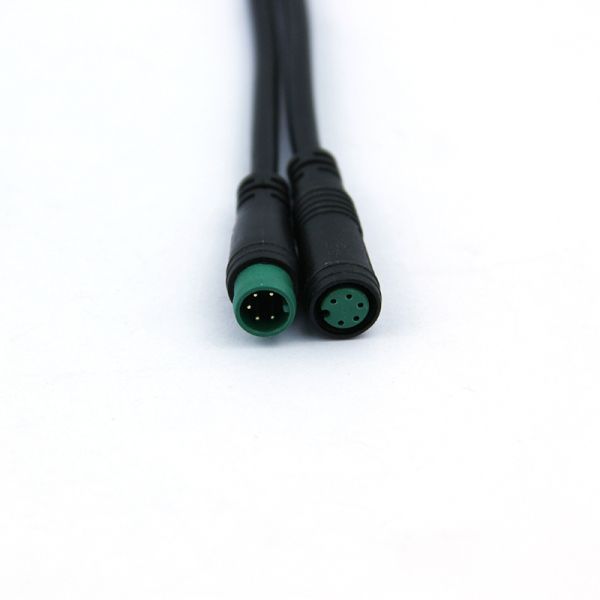

Waterproof Male Female Wire Connectors 5 Pin Outdoor Plug Connectors

Waterproof Male Female Wire Connectors 5 Pin Outdoor Plug Connectors

Waterproof Male Female Wire Connectors 5 Pin Outdoor Plug Connectors

Waterproof Male Female Wire Connectors 5 Pin Outdoor Plug Connectors
