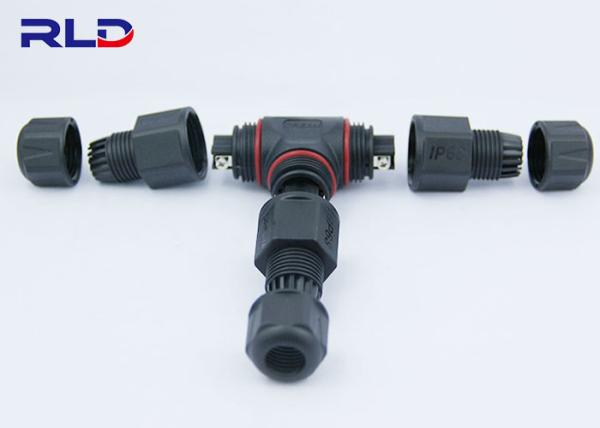

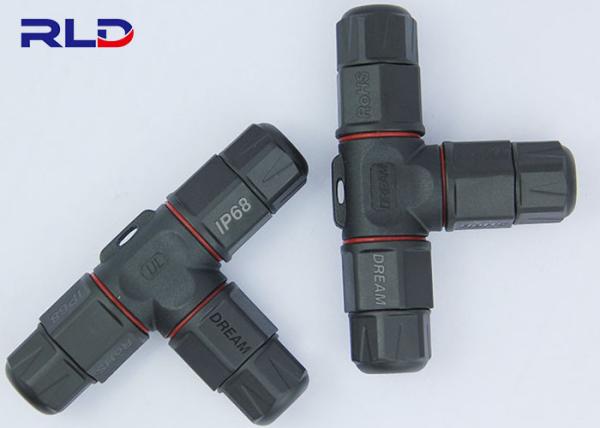

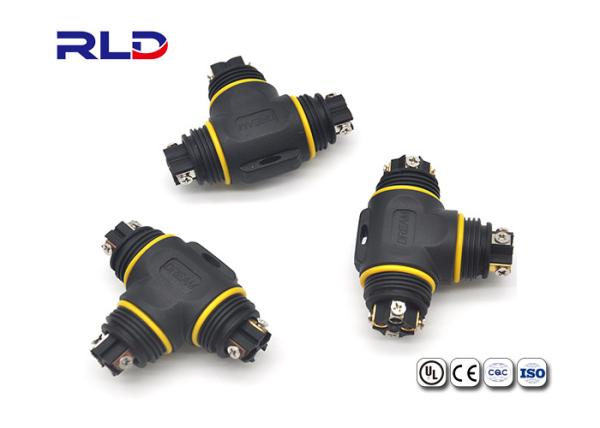

T Type Waterproof Power Connector IP68 2 3 4 Pin Assembly Connector
T Type Waterproof Power Connector IP68 2 3 4 Pin Assembly Connector
T Type Waterproof Power Connector IP68 2 3 4 Pin Assembly Connector
T Type Waterproof Power Connector IP68 2 3 4 Pin Assembly Connector
T Type Waterproof Power Connector IP68 2 3 4 Pin Assembly Connector
T Type Waterproof Power Connector IP68 2 3 4 Pin Assembly Connector
Specifications
Brand Name :
Realeader
Model Number :
DR-T15
Certification :
ISO9001, UL, CE
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram , Paypal
Supply Ability :
100000pieces/Month
Delivery Time :
7-10 working days
Packaging Details :
25*20*16CM
Product :
t-type connector
pins :
2 Pin 3 Pin 4 Pin
Connector Type :
T shape waterproof connector
Connection Mode :
Screw Threaded
Cable Range :
6-10mm
Material :
TPU, Nylon
Color :
Black
Description

T Type Waterproof Power Connector IP68 2 3 4 Pin Assembly Connector

1. Features

  • Screw threaded three ways assembly, simple in using, convenient in installation;
  • Brass plating nickel finish, high-strength corrosion resistance and electrical conductivity could effectively response to the temperature rise changes caused by the current;
  • Unique tablet design, the wire need no tin plating, then crimping will be more reliable, and will not damage the copper wire structure;
  • Nylon material, stable electrical performance, high-strength resistance to pressure, anti-heat, anti-explosion, and corrosion;
  • Increases the design flexibility: the use of connectors gives engineers greater flexibility in designing and integrating new products, as well as in composing systems with components.
2. Application
  • Led Outdoor Lighting
  • Led Wall Light
  • Led WallWasher
  • Led Street Light

3. Other Parameters

  • Operating Temperature : PA66 : -40℃~+105℃
  • Plug/Unplug durability : 1500times
  • Connection Mode : Screw Threaded

4. Parameters

Pins Number 2pin/3pin/4pin
Rated Current 20A
Rated Voltage 250V AC
Contact Resistance 10mΩ
Insulation Resistance 200MΩ
IP-Code IP68
Cable Specification 1.5mm2 ~ 2.5mm2
Cable Range 6-10mm

5. FAQ

Q1: Can I have a sample for test?

Yes, sample order is welcomed.

Q2: How about the lead time?

For sample order: 5-7 working days;

For mass order: 15-20 working days .

Q3: Do you have certificates about the waterproof connectors?

Yes, we have gotten UL, CE, ISO9001 for all waterproof connectors .

Q4: What payment can you accept?

We are appreciate that you can pay via T/T, and of course you can pay through L/C, Western Union, and Paypal etc.

Q5: Is that OK to print our Logo on your product and package?

Yes, it is OK. Before our production please inform us formally, and confirm the design firstly based on the sample that we send to you .

Q6: Are you a factory ? Where is your factory?

Yes, we are factory. We are located in Shenzhen, China.

Q7: Do you accept OEM & ODM service?

Yes, we accept OEM & ODM service. We will produce the products according to your requirment. Our engineers have more than 10 years experience in R&D of waterproof connector industry. We provide our best service for your refer.

Q8: How much does it cost to my country?

The freight charge will be given by fright company based on your Gross weight and CBM .

6. Product Details

T Type Waterproof Power Connector IP68 2 3 4 Pin Assembly Connector
