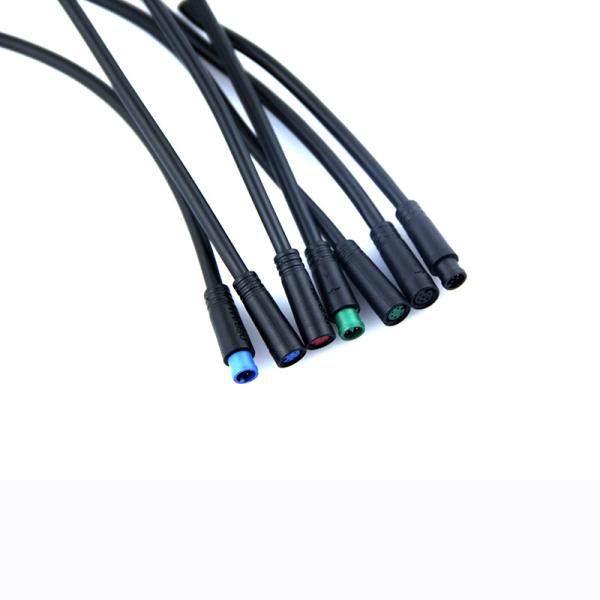

2 Pin IP65 Waterproof Connectors Compact Structure For Electric Bicycle Accessories
2 Pin IP65 Waterproof Connectors Compact Structure For Electric Bicycle Accessories
2 Pin IP65 Waterproof Connectors Compact Structure For Electric Bicycle Accessories
2 Pin IP65 Waterproof Connectors Compact Structure For Electric Bicycle Accessories
2 Pin IP65 Waterproof Connectors Compact Structure For Electric Bicycle Accessories
2 Pin IP65 Waterproof Connectors Compact Structure For Electric Bicycle Accessories
Specifications
Brand Name :
Realeader
Model Number :
DR-A09
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
10pieces
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram , Paypal
Supply Ability :
100000pieces/Month
Delivery Time :
7-10 working days
Packaging Details :
25*20*16CM
Product :
IP65 waterproof connectors
Pins :
2Pin/3Pin/4Pin/5Pin/6Pin
Working temperature :
PVC: 0℃~ +80℃; TPU: -40℃~ +125℃
Certificate :
ISO9001/CE
Insulator Material :
PA66
Rated current :
≤2A
Rated voltage :
≤60V
Description

IP65 2 Pin Waterproof Connector Mini Waterproof Connector For Electric Bicycle Accessories

1. Product Description

  • Direct plug-in assembly, simple in using, convenient in installation;
  • Specially designed for low-voltage, weak-current products;
  • With compact structure, small and exquisite shape, the plug is more suitable for product needs;
  • Our company developed the plug for electric bicycle signal lines in 2018.

2. Main specification:

  • Male Size : Φ7.41*24.1mm
  • Female Size : Φ7.41*23mm
  • Male Pin Diameter : Φ0.6 mm
  • External Material : PVC, TPU
  • Over-Mold Material : PA66
  • Insulator Material : PA66+30% fibre
  • Wire Specifications : 28AWG---22AWG
  • Wire Diameter : Φ3.0-Φ4.0
  • Protective Level : IP65
  • Temperature Environment : PVC: 0℃~ +80℃; TPU: -40℃~ +125℃
  • Plug/Unplug Durability : 1000 times

3. Widely used the following fields:

  • Electric bike accessories;
  • Low voltage signal lines;
  • Integrated lines

4. Data Sheet

Contact Cores 2Pin/3Pin/4Pin/5Pin/6Pin
Male Pin Diameter Φ0.6 mm
External Material PVC, TPU
Insulator Material PA66+30% fibre
Wire Specifications 28AWG---22AWG
Protection Level IP65
Contact Resistance 10mΩ
Insulation Resistance 100MΩ
Rated Current​ 2A

5. Questions & Answers

Q1: Can I have a sample for test?

Yes, sample order is welcomed.

Q2: How about the lead time?

For sample order: 5-7 working days;

For mass order: 15-20 working days .

Q3: Do you have certificates about the waterproof connectors?

Yes, we have gotten UL, CE, ISO9001 for all waterproof connectors .

Q4: What payment can you accept?

We are appreciate that you can pay via T/T, and of course you can pay through L/C, Western Union, and Paypal etc.

Q5: Is that OK to print our Logo on your product and package?

Yes, it is OK. Before our production please inform us formally, and confirm the design firstly based on the sample that we send to you .

6. Product Details

2 Pin IP65 Waterproof Connectors Compact Structure For Electric Bicycle Accessories

2 Pin IP65 Waterproof Connectors Compact Structure For Electric Bicycle Accessories

2 Pin IP65 Waterproof Connectors Compact Structure For Electric Bicycle Accessories
