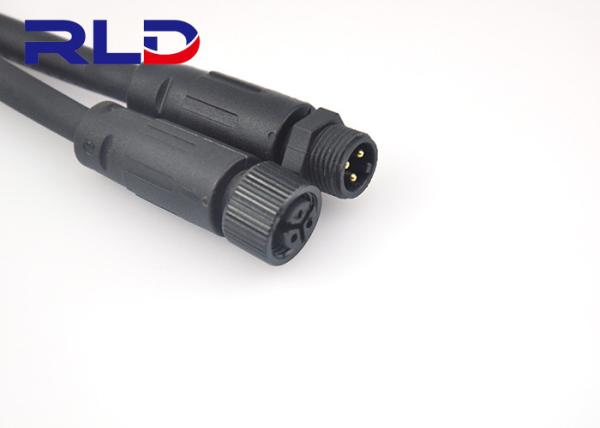

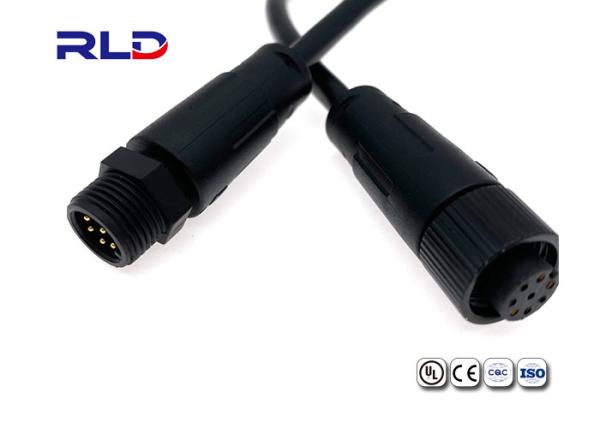

M12 Waterproof Connector Male Female 2Pin 3Pin 4Pin Waterproof Circular Connector
M12 Waterproof Connector Male Female 2Pin 3Pin 4Pin Waterproof Circular Connector
M12 Waterproof Connector Male Female 2Pin 3Pin 4Pin Waterproof Circular Connector
M12 Waterproof Connector Male Female 2Pin 3Pin 4Pin Waterproof Circular Connector
M12 Waterproof Connector Male Female 2Pin 3Pin 4Pin Waterproof Circular Connector
M12 Waterproof Connector Male Female 2Pin 3Pin 4Pin Waterproof Circular Connector
Specifications
Brand Name :
Realeader
Model Number :
DR-D18
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pieces
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100000 pieces/Month
Delivery Time :
7-15 working days
Packaging Details :
small carton: 25*20*16cm; large carton: 45*30*25cm
Product :
3 Pin Waterproof Connector
Pins :
3pin
Material :
Nylon, PA66
Color :
Black
Type :
Waterproof Power connector
Application :
LED Lighting, LED Screen, etc
Description

M12 Waterproof Connector Male Female 2Pin 3Pin 4Pin Waterproof Circular Connector

1. Product Description

  • M12 metal nut type docking assembly, more exquisite and more durable;
  • Integrating current and signal transmission in one of the multi-functional comprehensive waterproof plug;
  • Metal nut locking makes a better tensile performance and better waterproof performance;
  • The male and female pins of gold-plated ensure the conducting performance's stability, safe and reliable;
  • Mainly used for upscale lighting accessories lines and other upscale products.

2. Other Parameters

  • Operating Temperature : PA66 : -10℃~+105℃
  • Plug/Unplug durability : 1500times
  • Connection Mode : Screw Threaded

3. Date Sheet

Male Pin Diameter Φ1.2mm
Female Pin Diameter Φ1.0mm
Male Pin Material Copper/Copper Alloy (Gold plating/Nickel plating)
Female Pin Material Copper/Copper Alloy (Gold plating/Nickel plating)
Over-Mold Material PA66
Insulator Material PA66+30% fibre
Wire Specifications 24AWG---16AWG
Wire Diameter Φ4.0-Φ8.5

Protective Level

 IP67

4. Electrical Property

Temperature Environment -40℃~ 125℃
Plug/Unplug Durability 1000 times
Rated Current 10A
Rated Voltage

250V
Test Voltage 1000V
Contact Resistance 10 MΩ
Insulation Resistance 200 MΩ

5. Payment Terms

  • 100% T/T before shipment.
  • T/T, Paypal, Western Union, L/C.

6. Questions & Answers

Q1: Can I have a sample for test?

Yes, Sample order is welcomed.

Q2: How about the lead time ?

For sample order: 7-10 working days;

For mass order: 10-25 working days.

Q3: Do you have certificates about the waterproof connectors ?

Yes, we have gotten UL, CE and ISO9001 certificates .

Q4: What payment can you accept ?

We are appreciate that you can pay via T/T, and you can also pay through L/C, Western Union, Paypal.

Q5: Is that OK to print our Logo on your product and package ?

Yes, it is OK. Before our production please inform us formally, and confirm the design firstly based on the sample that we send to you.

Q6: Is your company a factory ? Where is your factory ?

Yes, our company is a factory. We are located in Shenzhen .

Q7: Do you accept OEM & ODM service ?

Yes, we accept OEM service. We will produce according to your requirment.

ODM are also welcomed. Our engineers have more than 10 years experience for waterproof connector industry. We would provide our best service for your refer.

Q8: How much does it cost to my country ?

The freight charge depends on the cargo weight volume. We will calculate order by order.

7. Product Details

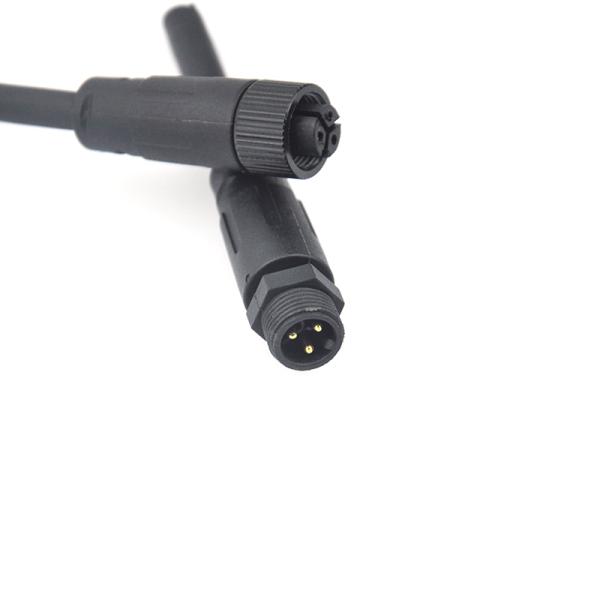

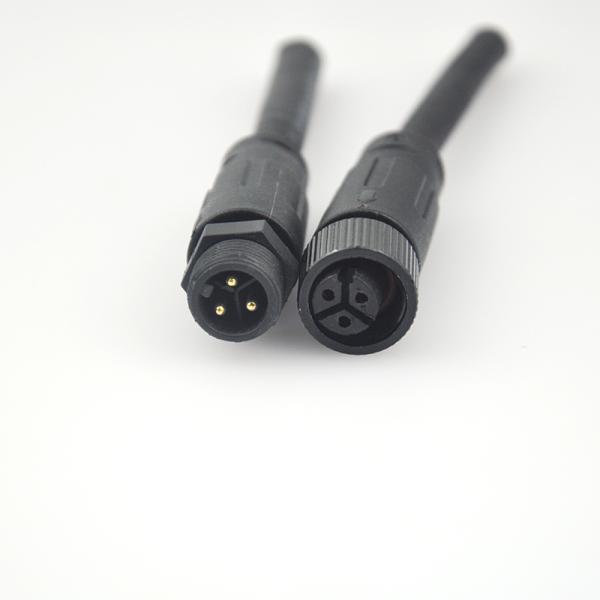

M12 Waterproof Connector Male Female 2Pin 3Pin 4Pin Waterproof Circular Connector

M12 Waterproof Connector Male Female 2Pin 3Pin 4Pin Waterproof Circular Connector

M12 Waterproof Connector Male Female 2Pin 3Pin 4Pin Waterproof Circular Connector
