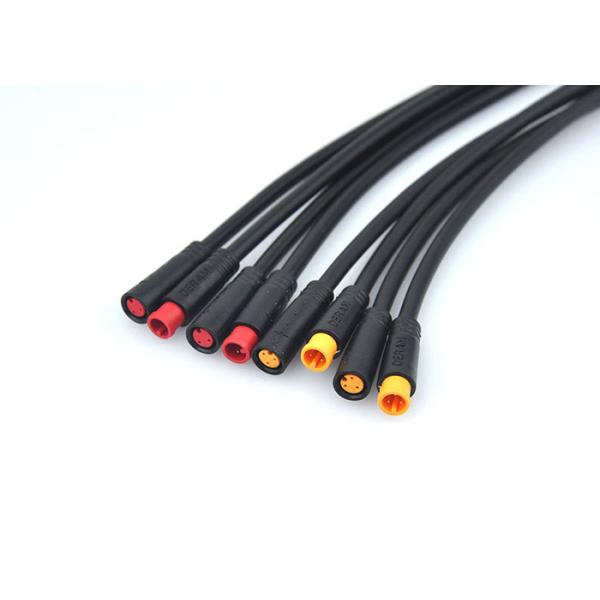

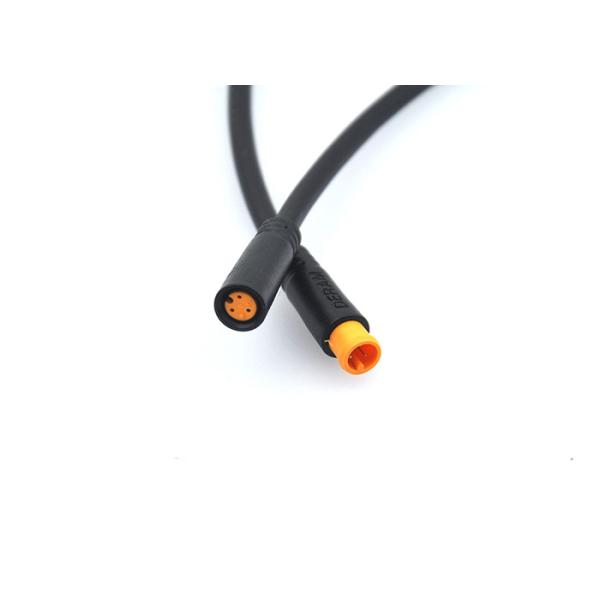

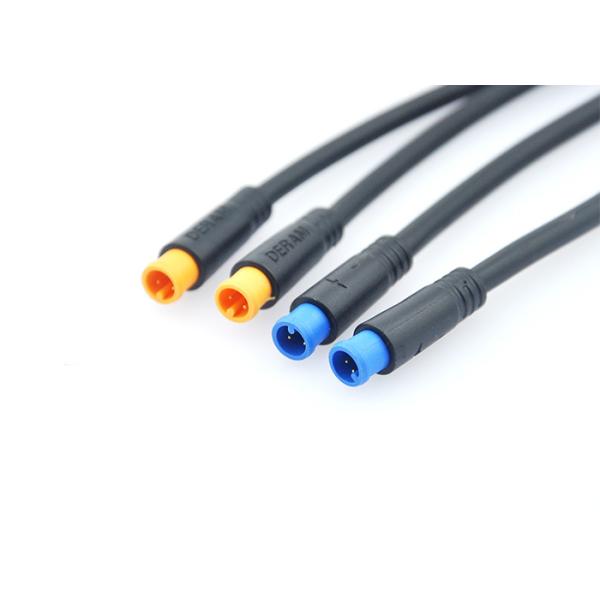

Small Size IP65 Waterproof Electric Bike Connectors M6 Male Female Connector
Small Size IP65 Waterproof Electric Bike Connectors M6 Male Female Connector
Small Size IP65 Waterproof Electric Bike Connectors M6 Male Female Connector
Small Size IP65 Waterproof Electric Bike Connectors M6 Male Female Connector
Small Size IP65 Waterproof Electric Bike Connectors M6 Male Female Connector
Small Size IP65 Waterproof Electric Bike Connectors M6 Male Female Connector
Small Size IP65 Waterproof Electric Bike Connectors M6 Male Female Connector
Small Size IP65 Waterproof Electric Bike Connectors M6 Male Female Connector
Small Size IP65 Waterproof Electric Bike Connectors M6 Male Female Connector
Small Size IP65 Waterproof Electric Bike Connectors M6 Male Female Connector
Specifications
Brand Name :
Realeader
Model Number :
DR-A09
Certification :
ISO9001
Place of Origin :
China
MOQ :
10pieces
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram , Paypal
Supply Ability :
100000pieces/Month
Delivery Time :
5-8 working days
Packaging Details :
25*20*16CM
Product :
Electric Bike Connector
Pins :
2pin/3pin/4pin/5pin/6pin
Material :
PVC Rubber
Working temperature :
-40~+120℃
Color :
Black
Certificate :
ISO9001
Description

Small Size IP65 Waterproof Electric Bike Connectors M6 Male Female Connector

Product Description

1. Direct plug-in assembly, simple in using, convenient in installation;
2. Specially designed for low-voltage, weak-current products;
3. With compact structure, small and exquisite shape, the plug is more suitable for product needs;
4. Our company developed the plug for electric bicycle signal lines in 2011.

Pins Number Rated Current Rated Voltage Contact Resistance Insulation Resistance IP-Code Cable Specification Cable Range
2pin 2A 60V AC 10mΩ 100MΩ IP65 ≤0.3mm2 0-4mm
3pin 2A 60V AC 10mΩ 100MΩ IP65 ≤0.2mm2 0-4mm
4pin 2A 60V AC 10mΩ 100MΩ IP65 ≤0.2mm2 0-4mm
5pin 1.5A 40V AC 10mΩ 100MΩ IP65 ≤0.2mm2 0-4mm
6pin 1.5A 40V AC 10mΩ 100MΩ IP65 ≤0.2mm2 0-4mm

Other Parameters :

Operating Temperature : PVC: 0℃~+80℃ TPU : -40℃~+105℃

Plug/Unplug durability : 1500times

Connection Mode : Direct Plug -in

Waterproof connector, as the name suggests, is a waterproof plug, but waterproof plug in addition to whether the difference between waterproof, there is a main difference is that ordinary plugs are generally composed of plugs and sockets, plugs and plug generally waterproof plug, that is We often call the waterproof male and female plugs, connected together to form a complete set of waterproof plugs, also known as waterproof connector, is a product of two different titles, like Electric Bike and LED.

Questions & Answers

Q1 : Can I have a sample for test ?

Yes , Sample order is welcomed , the lead time will be 3-5 working days acoording to your request .

Q2 : How about the lead time ?

Sample order need 3-5 working days , mess order need 15-20 working days .

Q3 : Do you have certificates about the waterproof connectors ?

Yes , we have got UL for DL-A02 series , CE for all waterproof connectors .

Q4 : What payment can you accept ?

We are appreciate that you can pay via T/T , and of course you can pay by L/C , Western Union , Paypal .

Q5 : Is that OK to print our Logo on your product and package ?

Yes , it is OK . Before our production please inform us formally , and confirm the design firstly based on the sample that we send to you .

Q6 : Are you a factory ? Where is your factory ?

Yes , we are a factory , we located in Shenzhen .

Q7 : Do you accept OEM & ODM service ?

Yes , we accept OEM service. We will produce according to your requirment .ODM are also welcomed . Our engineers have more than 10 years experience for waterproof connector industry . we provide our best service for your refer.

Q8 : How much does it cost to my country ?

The freight will be given by fright company based on your Gross weight and CBM .

Q9 : Can I order 100m cable for 1pc waterproof connector ?

Yes , for waterproof connector ,we can connect with 10cm , 1m , 2m ,5m , 10m , 50m , 100m and so on , will produce according to your detailed requirement .

Product Details

Small Size IP65 Waterproof Electric Bike Connectors M6 Male Female Connector

Small Size IP65 Waterproof Electric Bike Connectors M6 Male Female Connector

Small Size IP65 Waterproof Electric Bike Connectors M6 Male Female Connector
