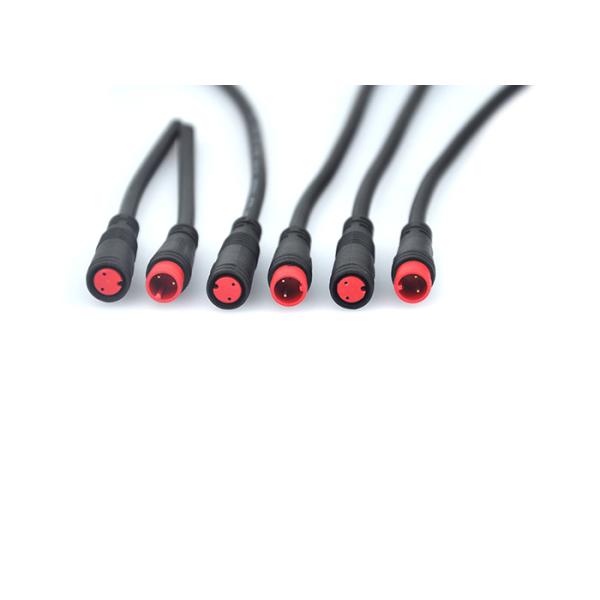

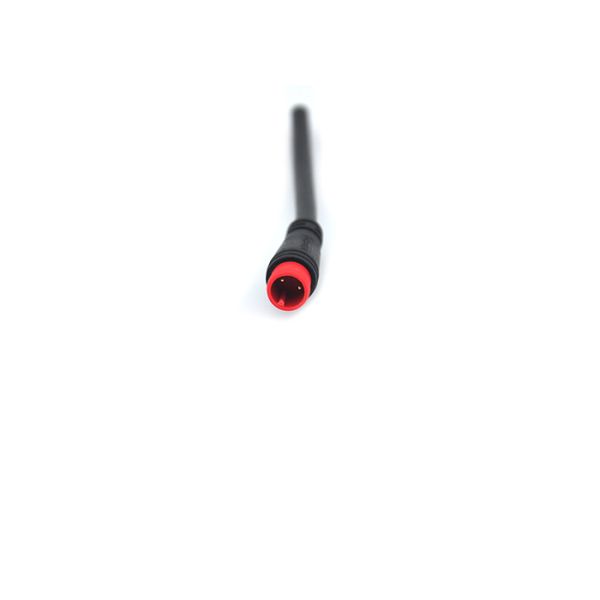

5 Pin Waterproof Power Connector IP65 Wire Connector For Electric Bike
5 Pin Waterproof Power Connector IP65 Wire Connector For Electric Bike
5 Pin Waterproof Power Connector IP65 Wire Connector For Electric Bike
5 Pin Waterproof Power Connector IP65 Wire Connector For Electric Bike
5 Pin Waterproof Power Connector IP65 Wire Connector For Electric Bike
5 Pin Waterproof Power Connector IP65 Wire Connector For Electric Bike
Specifications
Brand Name :
Realeader
Model Number :
DR-A02
Certification :
ISO9001
Place of Origin :
China
MOQ :
10pieces
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram , Paypal
Supply Ability :
100000pieces/Month
Delivery Time :
5-8 working days
Packaging Details :
25*20*16CM
Product :
Electric Bike Waterproof Connector
Pins :
2pin/3pin/4pin/5pin/6pin
Material :
PVC Rubber
Working temperature :
-40~+120℃
Color :
Black
Certificate :
ISO9001
Function :
Dustproof
IP Level :
IP65
Description

5 Pin Waterproof Power Connector IP65 Wire Connector For Electric Bike

Product Description

Male Size : Φ8.6*30mm

Female Size : Φ8.6*33.5mm

Contact Cores : 2pin / 3pin / 4pin / 5pin / 6pin

Male Pin Diameter : Φ0.6 mm

Male Pin Material : Copper/Copper Alloy (Gold plating/Nickel plating)

Female Pin Material : Copper/Copper Alloy (Gold plating/Nickel plating)

External Material : PVC, TPU

Over-Mold Material : PA66

Insulator Material : PA66+30% fibre

Wire Specifications : 28AWG---22AWG

Wire Diameter :Φ3.0-Φ5.5

Protective Level : IP65

Temperature Environment : PVC: 0℃~ +80℃; TPU: -40℃~ +125℃

Plug/Unplug Durability : 1000 times

Rated Current : ≤2.5A

Rated Voltage : 60V

Test Voltage : 500V

Contact Resistance : 10 MΩ

Insulation Resistance : 100 MΩ

Parameters

Pins number 2Pin/3Pin/4Pin/5Pin/6Pin
Reted current 1.5A ~ 2.0A
Reted voltage 40V AC ~ 60V AC
Contact resistance 10mΩ
Insulation resistance 100MΩ
IP-Code IP65
Cable Specifications 0.2~0.3mm2
Cable Range 0-4mm
Operating temperature PVC:0℃ ～ +80℃; TPU: -40℃ ～ +105℃

Questions & Answers

Q1 : Can I have a sample for test ?

Yes , Sample order is welcomed , the lead time will be 3-5 working days acoording to your request .

Q2 : How about the lead time ?

Sample order need 3-5 working days , mess order need 15-20 working days .

Q3 : Do you have certificates about the waterproof connectors ?

Yes , we have got UL for DL-A02 series , CE for all waterproof connectors .

Q4 : What payment can you accept ?

We are appreciate that you can pay via T/T , and of course you can pay by L/C , Western Union , Paypal .

Q5 : Is that OK to print our Logo on your product and package ?

Yes , it is OK . Before our production please inform us formally , and confirm the design firstly based on the sample that we send to you .

Q6 : Are you a factory ? Where is your factory ?

Yes , we are a factory , we located in Shenzhen .

Q7 : Do you accept OEM & ODM service ?

Yes , we accept OEM service. We will produce according to your requirment .ODM are also welcomed . Our engineers have more than 10 years experience for waterproof connector industry . we provide our best service for your refer.

Q8 : How much does it cost to my country ?

The freight will be given by fright company based on your Gross weight and CBM .

Q9 : Can I order 100m cable for 1pc waterproof connector ?

Yes , for waterproof connector ,we can connect with 10cm , 1m , 2m ,5m , 10m , 50m , 100m and so on , will produce according to your detailed requirement .

Product Details

5 Pin Waterproof Power Connector IP65 Wire Connector For Electric Bike

5 Pin Waterproof Power Connector IP65 Wire Connector For Electric Bike

5 Pin Waterproof Power Connector IP65 Wire Connector For Electric Bike

A02 Specification.pdf
